43
7
SCAN OPERATION
New2001 New2001
■ Scan edges programming
Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edge memory channels, 0A/0b to 24A/24b.
q
Push [V/M/C] to select the VFO mode.
w
Set a desired frequency:
➥ Push [BAND] to select a desired band.
➥ Rotate [DIAL] to set a desired frequency.
➥
Program different frequencies in “✱A” and “✱b.”
➥
Set other data (e.g. frequency offset, duplex direction, tone
squelch, etc.), if desired.
e
Push and hold [S.MW](V/M/C) for 1 sec. to enter the select
memory write mode.
• 1 short and 1 long beep sounds.
• The “
” icon and memory channel number blink.
r Rotate [DIAL] to select a desired programmed scan edge
channel from 0A to 24A.
t
Push and hold [S.MW](V/M/C) for 1 sec. to program.
• 3 beeps sound.
• The other scan edge channel “b,” 0b to 24b, is automatically se-
lected when continuing to push [S.MW](V/M/C) after program-
ming.
y To program a frequency for the other pair of scan edges,
0b to 24b, repeat steps w and t.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
[DIAL]
The VFO mode
Enter
the select memory write mode.
to selectRotate
Push and hold
for 1 sec. “3A.”
“3A” is selected.
Return to the VFO mode.
Push and hold
for 1 sec.

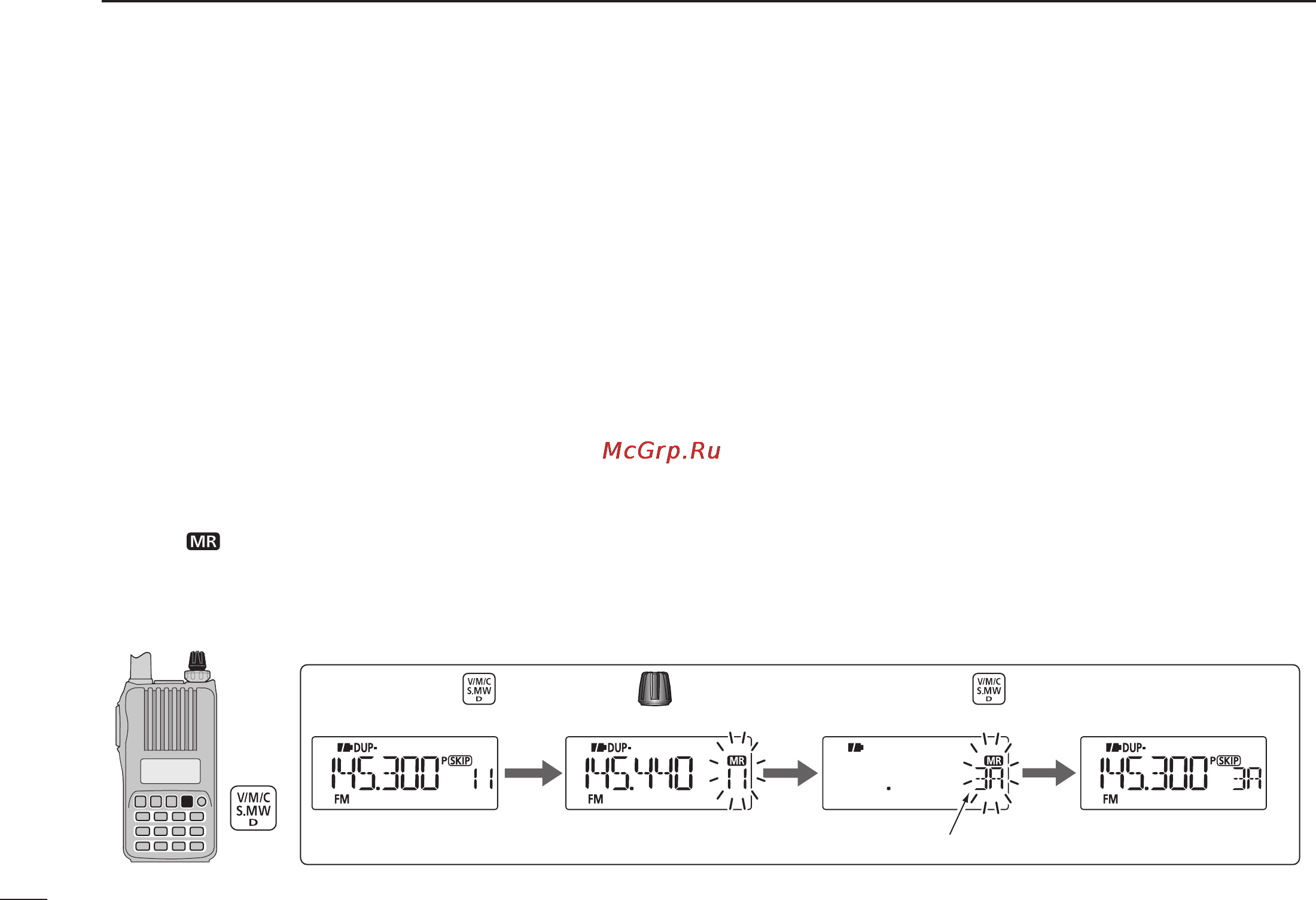

[EXAMPLE]: Programming 145.300 MHz into scan edges 3A.
