PARTS LIST: Outfeed Table Assembly (PJ1696 Jointer)

Index Part No.

No. Description Size Qty.

I .........PJ1696-601 ...............Outfeed Table Lip..........................................................................1

2.........PJ1696-602................Outfeed Table...................................................................... ........1

3.........TS-1505061................Socket Head Cap Screw...............M10 x 40.....................................4

4.........PJ 1696-603...............Table Lifting Support Base..............................................................1

5.........PJ1696-604................Table Raising Link Bar....................................................................2

6.........PJ1696-605................Bushing.......................................................................................8

7.........PJ 1696-606...............Pivot Shaft...................................................................................6

8.........PJ1696-607................Adjustment Shaft..........................................................................2

9....... TS-1525031............ Socket Set Screw........................M10x16.......................... ............8

10.......PJ 1696-608................Table Lifting Spring.......................................................................2

11 .......PJ 1696-609................Hanger.......................................................................................2

12.......TS-0570011................ Hex Nut.......................................1/4-20............................ ……..4

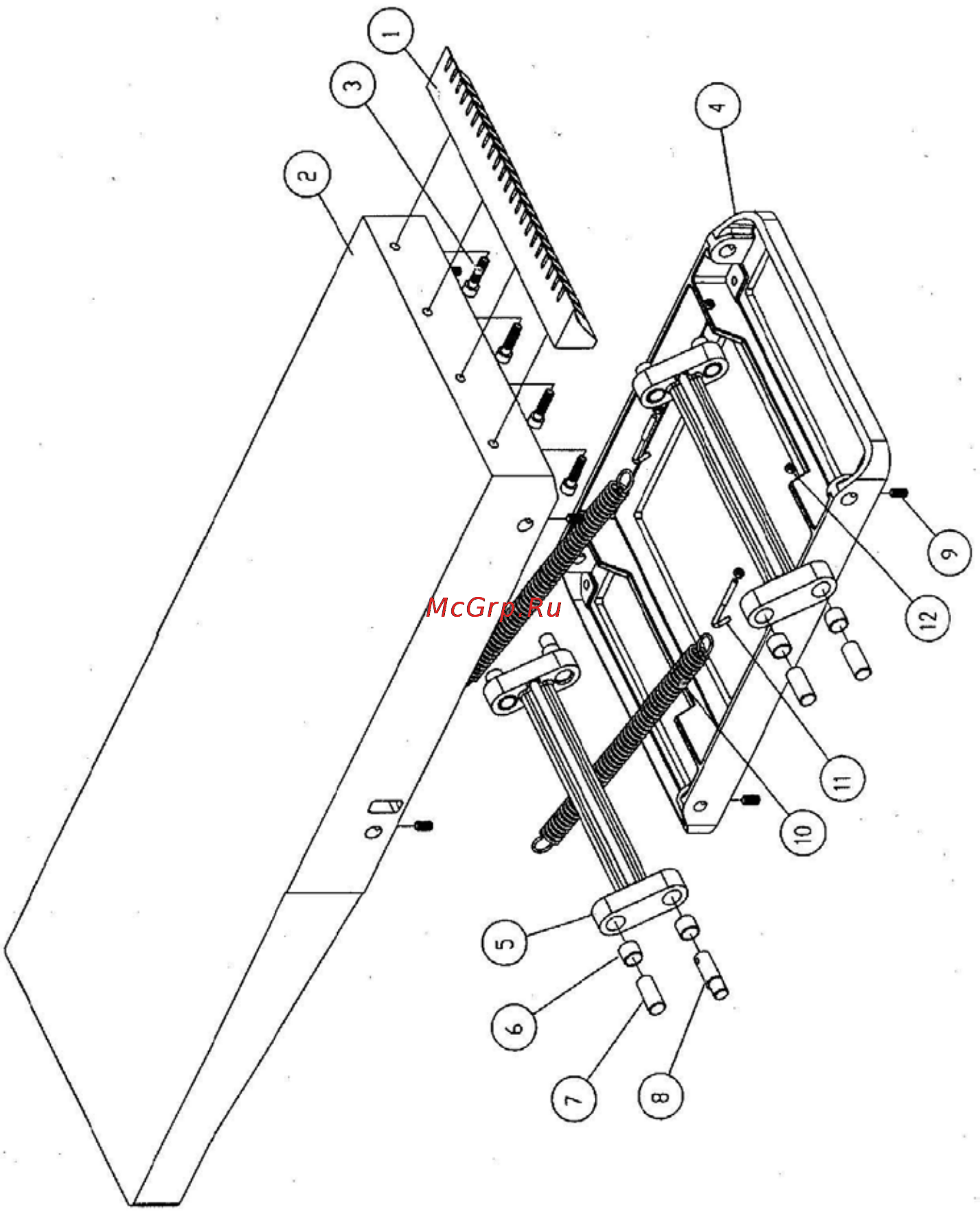

Outfeed Table Assembly (PJ1696 Jointer)
