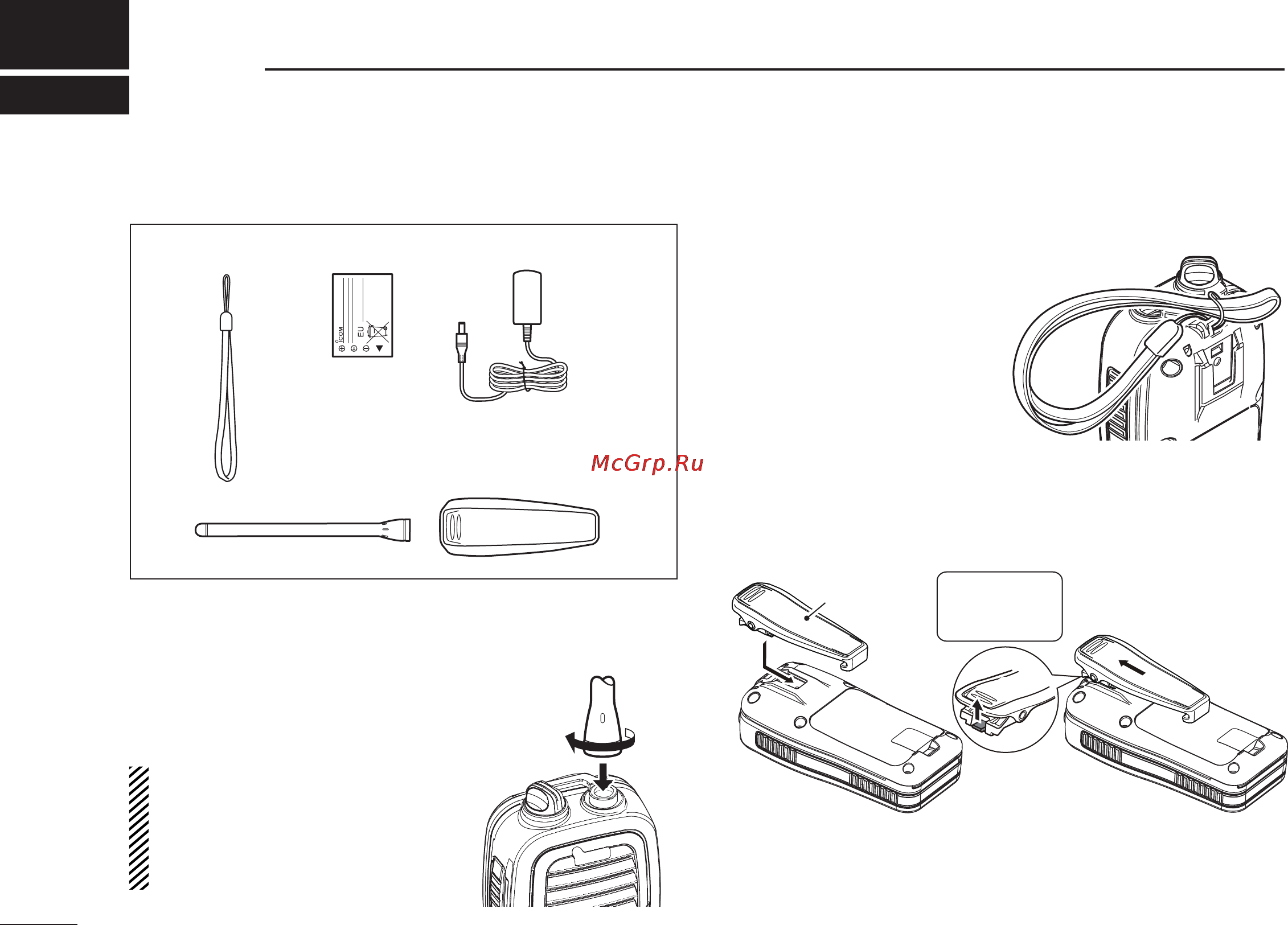

SUPPLIED ACCESSORIES AND ATTACHMENTS
2
■ Supplied accessories
■ Attachments
D Flexible antenna
Connect the supplied flexible an-
tenna to the antenna connector.
CAUTION:
• NEVER carry the transceiver by
holding just the antenna.
• Transmitting without an antenna
can damage the transceiver.
D Handstrap
Pass the handstrap through
the loop on the back side of
the transceiver as shown.
D Belt clip
Attach the belt clip to, or detach the belt clip from the transceiver.
Battery packHandstrap
Belt clip
Flexible antenna
Charger
BP-266
BP-266
BP-266
BP-266
BP-266
BP-266
BP-266
BP-266
BP-266
To attach the belt clip
To detach the belt clip
Be careful!
Don’t break your
fingernail.
q
Belt clip
w
BP-266
BP-266
Lift the tab up (q), and slide
the belt clip in the direction
of the arrow (w).
BP-266
