■ Set mode programming
The Set mode is used to change the settings of transceiver's
functions: Beep Tone function, Weather Alert function, Prior-
ity Scan function, Scan resume timer, Auto Scan function,
Dual/Tri-watch function, Monitor key action, Automatic back-
lighting, LCD contrast setting and Power Save function.
D Set mode operation
q Turn OFF the power.
w While holding down [VOL/SQL], turn ON the power to
enter the Set mode.
• “bP” appears.
e Push [VOL/SQL] to select a desired item. Or while holding
down [VOL/SQL], push [Y] or [Z] also selects an item.
r Push [Y] or [Z] to select a desired option of the item.
t To exit the Set mode, push [16].
17
7
SET MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

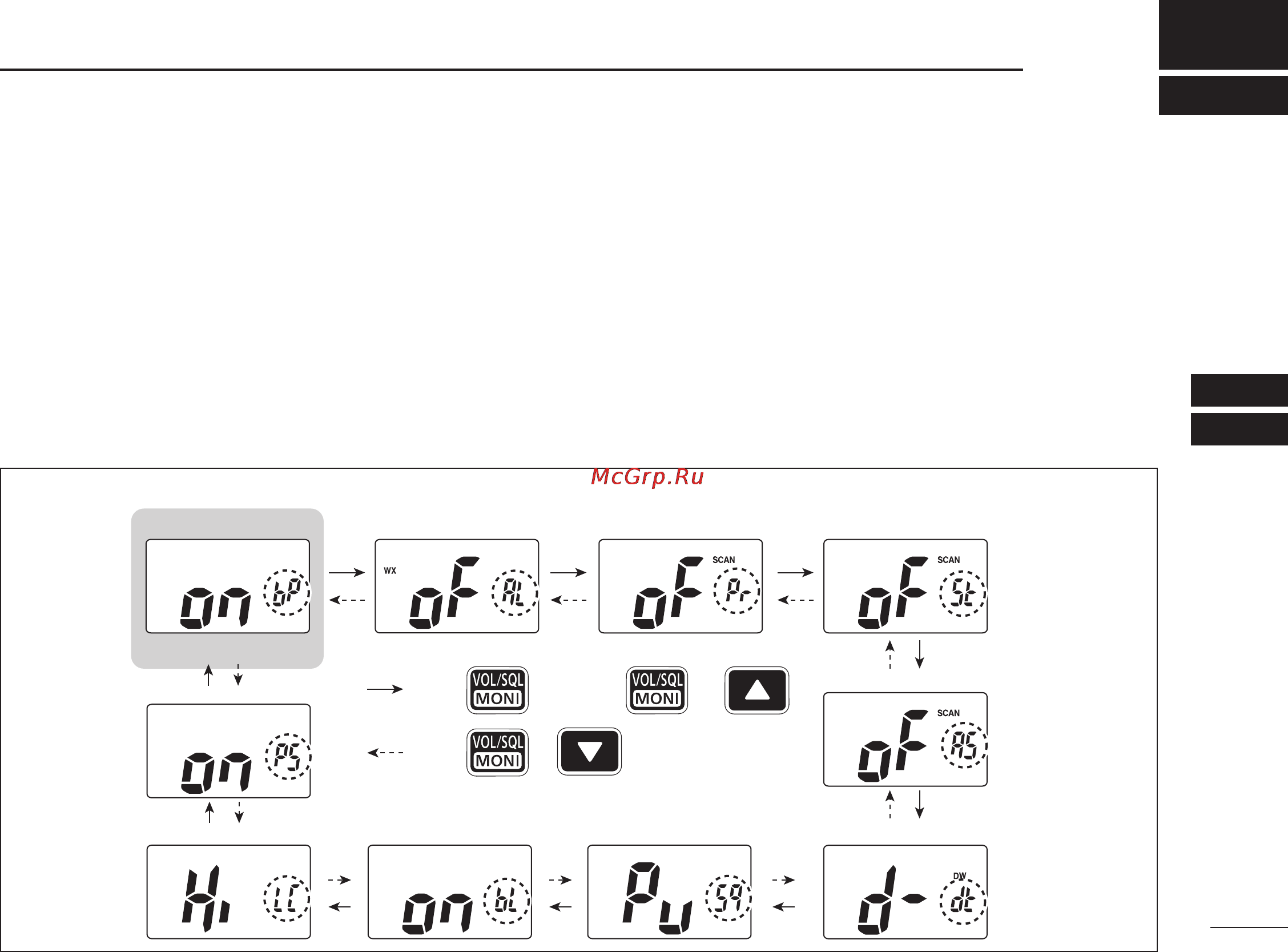

SET MODE ITEMS
(The display shows the current settings, and the selected item is displayed in the dotted circle.)
• Auto scan
Starting item
• Beep tone • Scan resume timer
• Dual/Tri-watch
• Automatic
backlighting
• Power save
• LCD contrast • Monitor key action
• Priority scan• Weather Alert
: Push +
: Push Push
or
+
