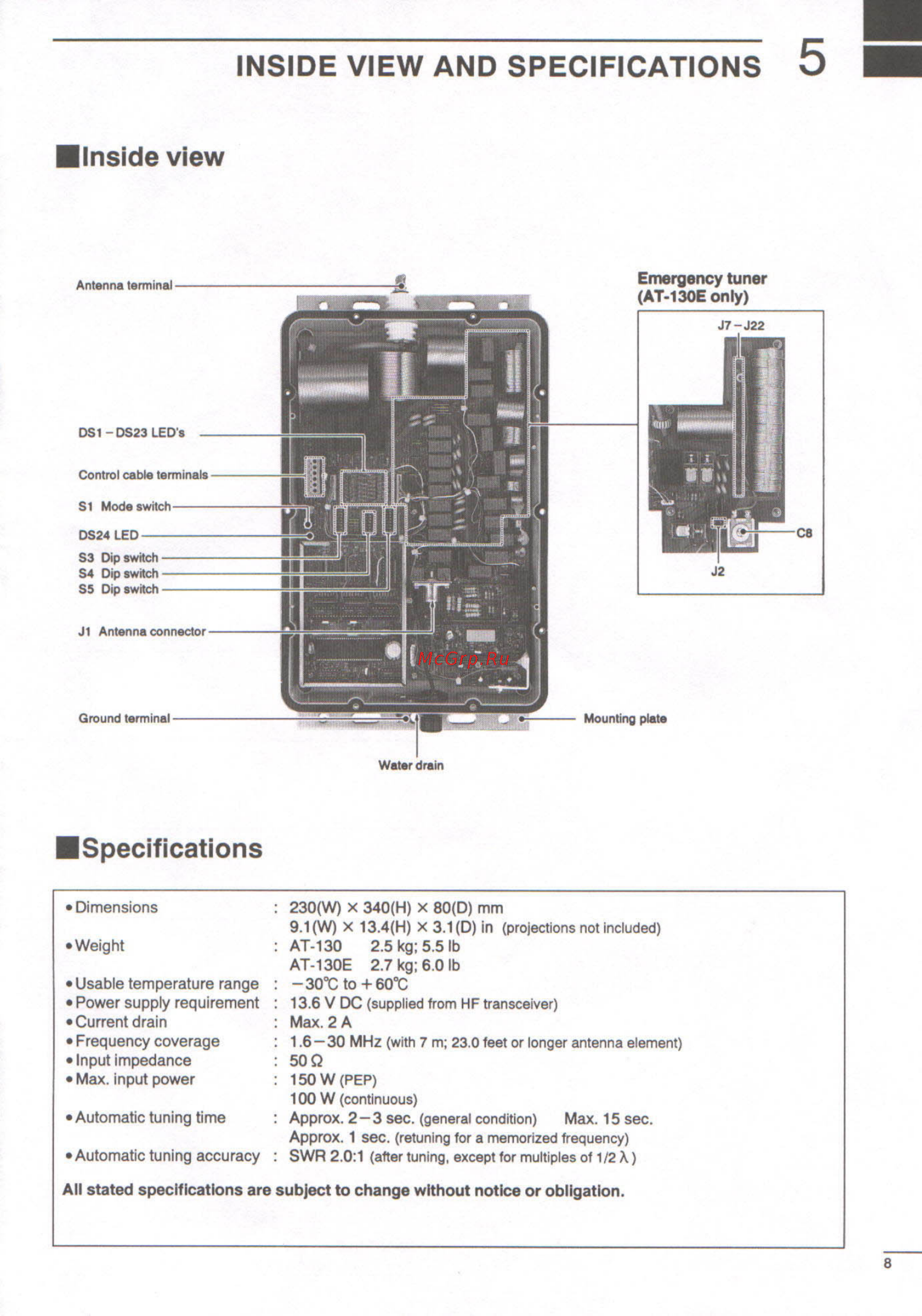

INSIDE VIEW AND SPECIFICATIONS Inside view Emergency tuner AT 130E only Antenna terminal DS1 DS23 LED s Control cable terminals SI Mode switch DS24 LED S3 Dip switch S4 Dip switch S5 Dip switch J1 Antenna connector Ground terminal Mounting plate Water drain Specifications Dimensions 230 W X 340 H x 80 D mm 9 1 W x 13 4 H X 3 1 D in projections not included Weight AT 130 2 5 kg 5 5 lb AT 13ОЕ 2 7 kg 6 0 lb Usable temperature range Power supply requirement 30 Cto 60 C 13 6 V DC supplied from HF transceiver Current drain Max 2 A Frequency coverage 1 6 30 MHz with 7 m 23 0 feet or longer antenna element Input impedance 50Q Max input power 150W PEP Automatic tuning time Approx 2 3 sec general condition Max 15 sec 100 W continuous Approx 1 sec retuning for a memorized frequency Automatic tuning accuracy SWR 2 0 1 after tuning except for multiples of 1 2 Л All stated specifications are subject to change without notice or obligation
