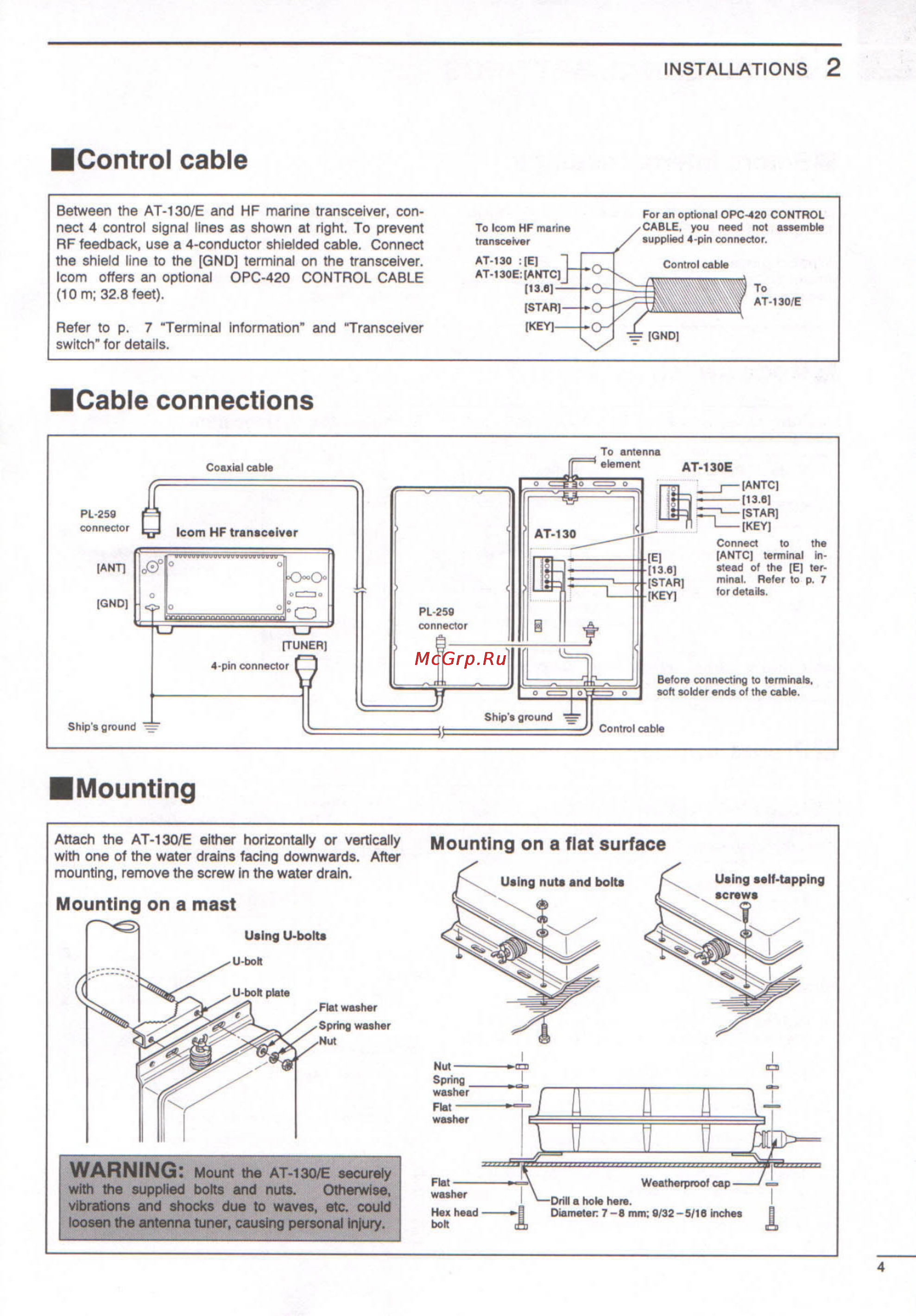

INSTALLATIONS 2 Control cable Between the AT 130 E and HF marine transceiver con nect 4 control signal lines as shown at right To prevent RF feedback use a 4 conductor shielded cable Connect the shield line to the GND terminal on the transceiver Icom offers an optional OPC 420 CONTROL CABLE 10 m 32 8 feet Refer to p 7 switch for details Terminal information and To Icom HF marine transceiver Foran optional OPC 420 CONTROL CABLE you need not assemble supplied 4 pin connector Transceiver Cable connections Mounting Attach the AT 130 E either horizontally or vertically with one of the water drains facing downwards After mounting remove the screw in the water drain Mounting on a flat surface Mounting on a mast WARNING Mount the AT 130 E securely with the supplied bolts and nuts Otherwise vibrations and shocks due to waves etc could loosen the antenna tuner causing personal injury 4
