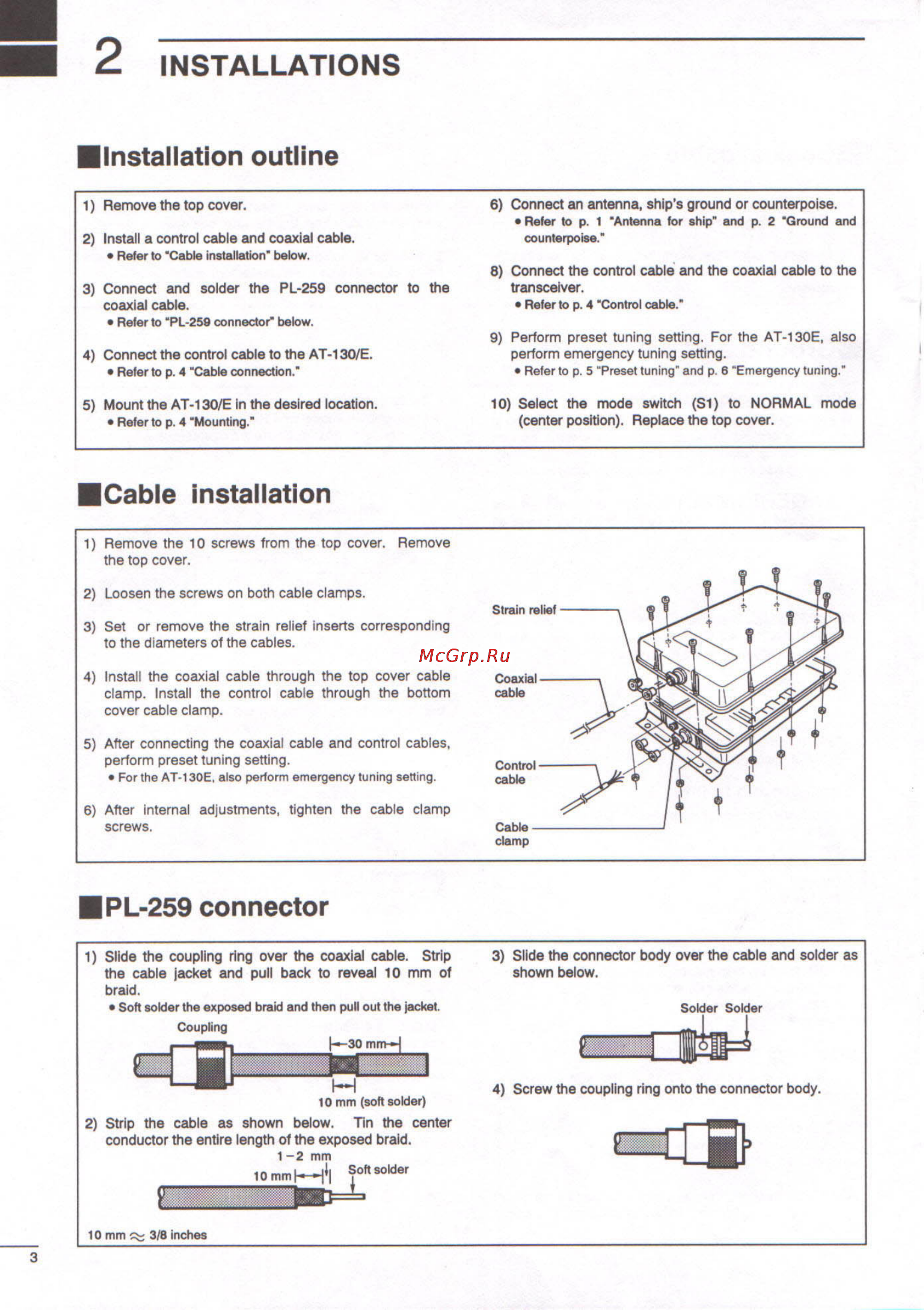

2 INSTALLATIONS Installation outline 6 Connect an antenna ship s ground or counterpoise Refer to p 1 Antenna for ship and p 2 Ground and counterpoise 1 Remove the top cover 2 Install a control cable and coaxial cable Refer to Cable installation below 8 Connect the control cable and the coaxial cable to the transceiver Refer to p 4 Control cable 3 Connect and solder the PL 259 connector to the coaxial cable Refer to PL 259 connector below 9 4 Connect the control cable to the AT 130 E Refer to p 4 Cable connection 10 5 Mount the AT 130 E In the desired location Refer to p 4 Mounting Perform preset tuning setting For the AT 130E also perform emergency tuning setting Refer to p 5 Preset tuning and p 6 Emergency tuning Select the mode switch S1 to center position Replace the top cover NORMAL mode Cable installation 1 Remove the the top cover 10 screws from the top cover Remove 2 Loosen the screws on both cable clamps 3 Set or remove the strain to the diameters of the cables relief inserts 4 Install the coaxial cable through the top clamp Install the control cable through cover cable clamp corresponding cover cable the bottom 5 After connecting the coaxial cable and control cables perform preset tuning setting For the AT 1 ЗОЕ also perform emergency tuning setting 6 After Internal screws adjustments tighten the cable clamp PL 259 connector 1 Slide the coupling ring over the coaxial cable Strip the cable jacket and pull back to reveal 10 mm of braid Soft solder the exposed braid and then pull out the jacket 3 Slide the connector body over the cable and solder as shown below Solder Solder Coupling 30 m 4 Screw the coupling ring onto the connector body 10 mm soft solder 2 Strip the cable as shown below Tin the conductor the entire length of the exposed braid 1 2 mm TN____ L ___ ill Soft solder 10 mm 3 8 inches 3 center
