D Transmitting a DTMF code
➀ Select the DTMF channel to be transmitted:
➥
Push
[(
•
)DTMF] for 1 sec.
to select DTMF memory mode.
➥ Rotate [DIAL] to select the desired DTMF channel.
➁ While pushing [PTT] push [MONI] to transmit the selected
DTMF channel’s contents.
D DTMF transmit speed
When slow DTMF transmission speeds are required (such as
for some repeaters) the transceiver’s rate of DTMF transmis-
sion can be adjusted. See p. 25 for details.
■
DTMF memory operation
D Programming a DTMF code
The transceiver has 9 DTMF memory channels (D1 to D9) for
storage of often-used DTMF codes of up to 16 digits.
➀ Push [(
•
)DTMF] for 1 sec. to enter
DTMF memory mode.
➁ Rotate [DIAL] to select the desired
channel.
➂ Push [(H/L)SET] for 1 sec. to enter
DTMF programming mode.

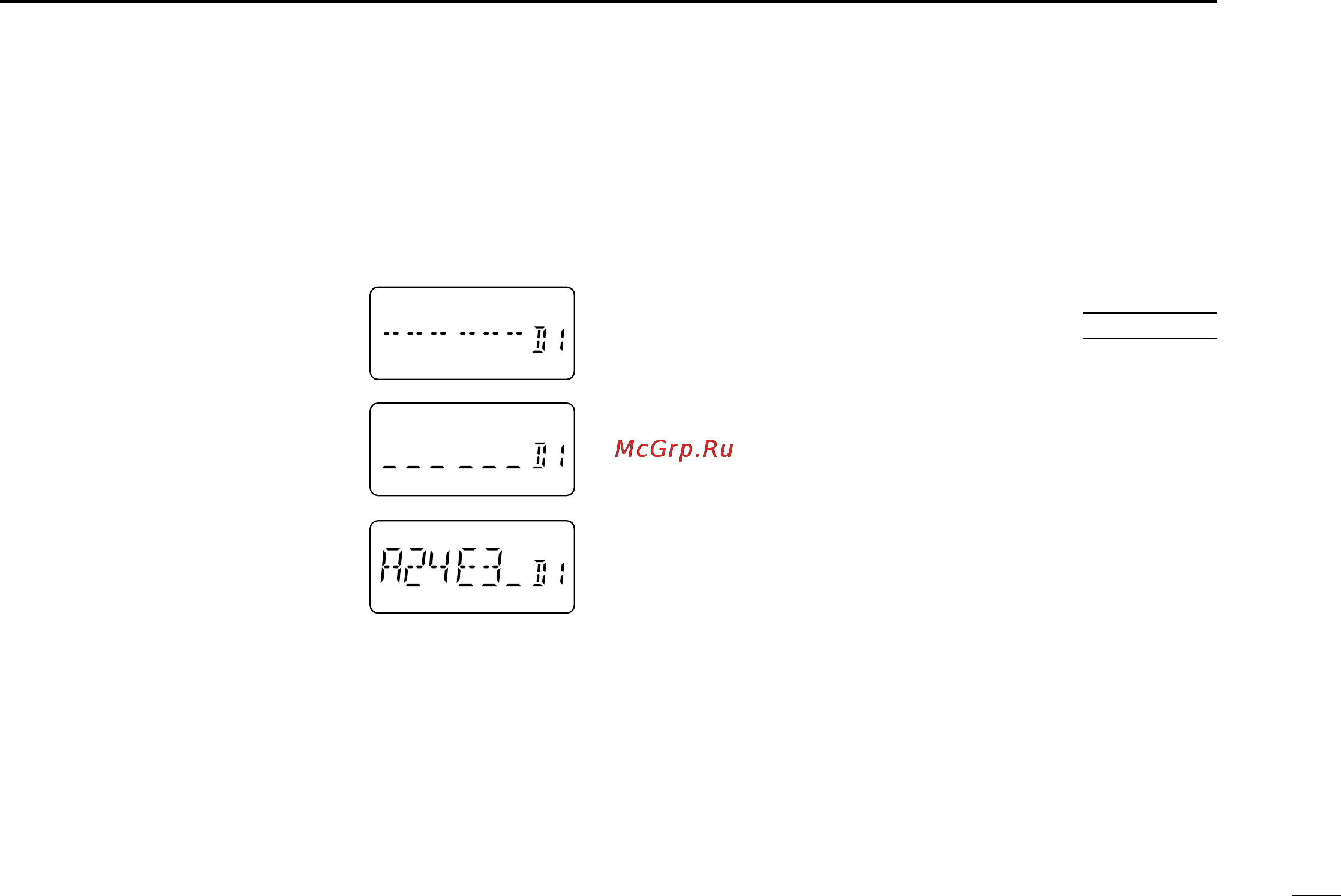

•“______” appears.
• Programmed memories can be
cleared in this way.
➃ Push digit keys to enter the de-
sired DTMF code.
• A maximum of 16 digits can be input.
• If a digit is mistakenly input, push
[H/L] then repeat from step ➂.
➄ Push [(H/L)SET] to input the digits.
• A beep sounds.
➅ Push [VFO] or [MONI] to exit DTMF programming mode.
• When pushing [MONI], the programmed contents can be moni-
tored.
