OPTIONS
7
28
D Battery packs
In the output power and operating period columns, bracketed values
refer to the 440(430) MHz band.
*
1
Operating periods are calibrated for the following conditions:
Tx : Rx : standby=1 : 1 : 8 min.
*
2
Operating period depends on alkaline cells used.
D Speaker-microphones
D Others
MB-30 MOUNTING BRACKET
For mounting the transceiver on the inside door panel of a vehicle or
on a wall.
LC-136/LC-137 CARRYING CASES
LC-136: for IC-T7H with BP-170/171/172.
LC-137: for IC-T7H with BP-173/180.
SP-13 EARPHONE
Provides clear receive audio in noisy environments.
CS-T7 CLONING SOFTWARE + OPC-478 CLONING CABLE
Provide quick and easy programming of memory channels, memory
names and set mode contents, etc. via a PC.
D Chargers and cables
BC-110A/D/V WALL CHARGER
Regularly charge battery packs attached to the transceiver in 15 to 20
hrs.
BC-119 DESKTOP CHARGER + AD-56 BATTERY PACK ADAPTER
Rapidly charge battery packs in 1 to 1.5 hrs. depending on the bat-
tery pack. An AC adapter is packed with the BC-119. The AD-56 must
be used with the BC-119 for charging the battery pack. The CP-17L or
OPC-515L can be used instead of the supplied AC adapter.
CP-12L CIGARETTE LIGHTER CABLE WITH NOISE FILTER
For operation and charging via a 12 V cigarette lighter socket.
OPC-254L DC POWER CABLE
For operation and charging via an external power supply.

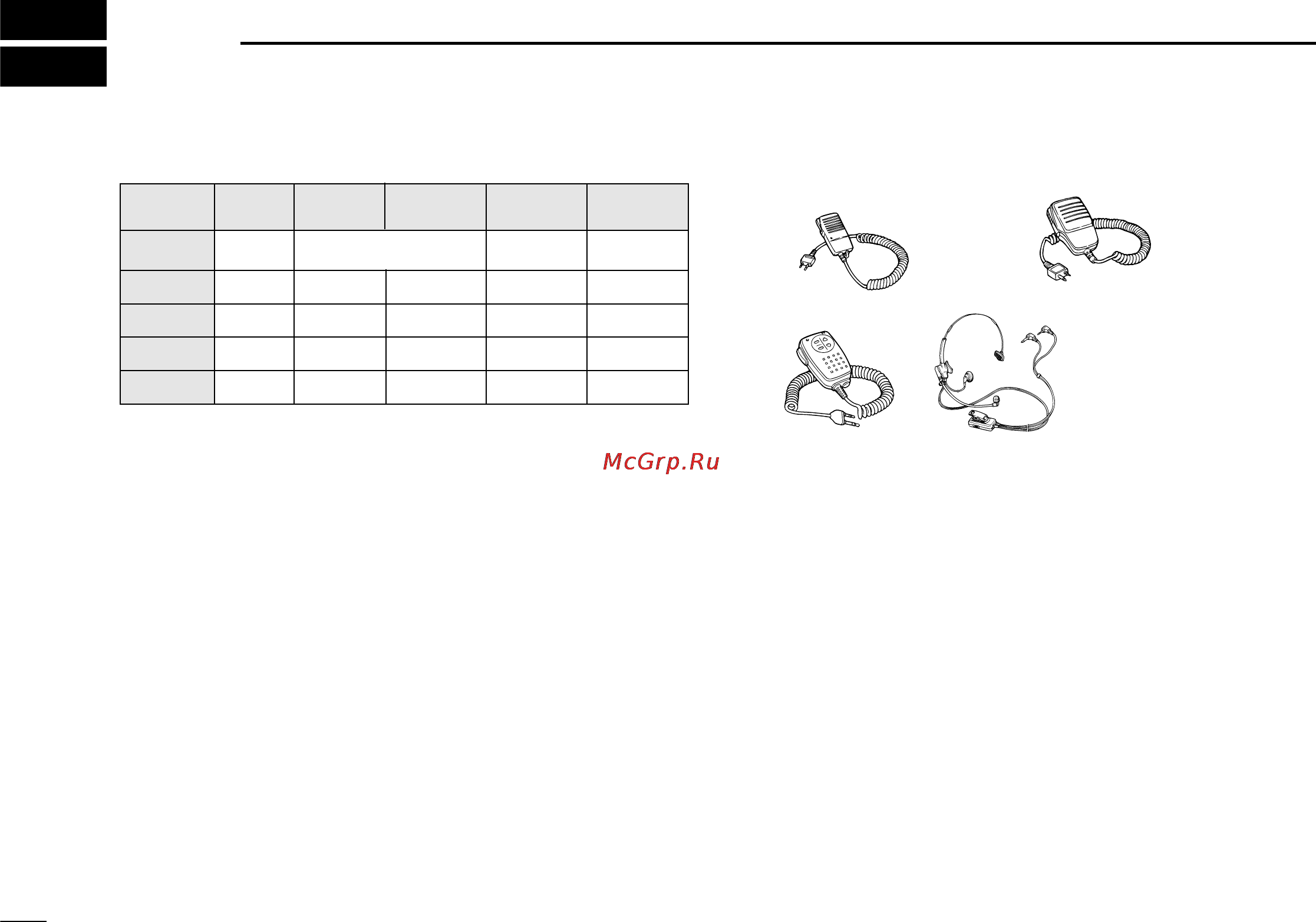

HM-46
HM-75A
HM-54
HS-85 HEADSET
• PTT switch
• VOX
• One-touch PTT for
hands-free operation
Remote control
capability (see p. 23 for details)
BATTERY
PACK
HEIGHT
(mm/in)
VOLTAGE CAPACITY
OUTPUT
POWER
OPER.
PERIOD*
1
BP-170 63.5/2.5
Battery case for
R6(AA) x 4 alkaline cells
2.0 (1.5) W
20 (19) h
*
2
BP-171 63.5/2.5 4.8 V 700 mAh 2.0 (1.5) W 6.2 (5.5) h
BP-172 63.5/2.5 4.8 V 950 mAh 2.0 (1.5) W 8.3 (7.5) h
BP-173 75.5/3.0 9.6 V 650 mAh 5 (4.5) W 4.3 (4.2) h
BP-180 75.5/3.0 7.2 V 600 mAh 3.9 (2.8) W 4.2 (4.2) h
