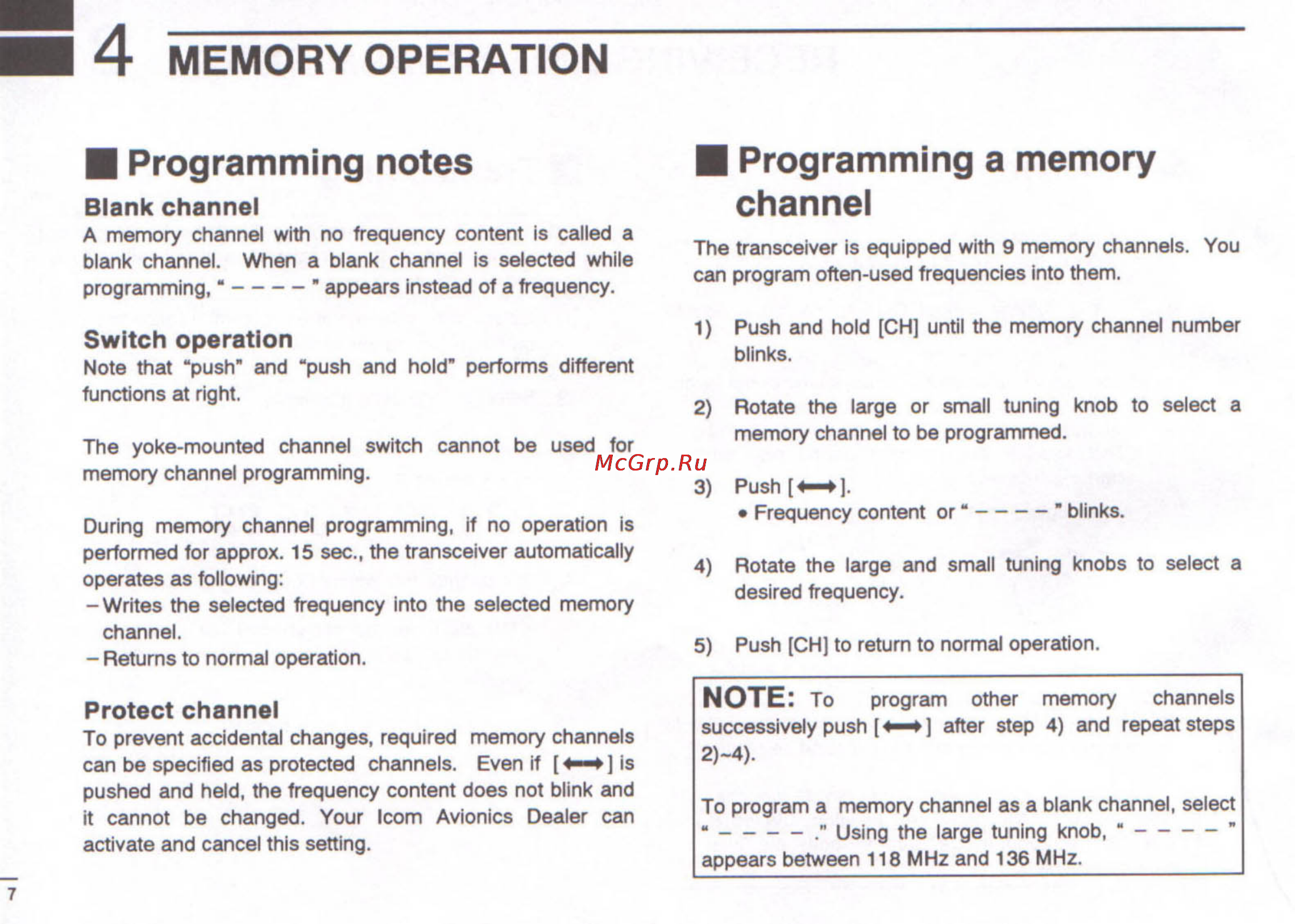

I 4 MEMORY OPERATION Programming notes Blank channel Programming a memory channel A memory channel with no frequency content is called a blank channel When a blank channel is selected while programming appears instead of a frequency The transceiver is equipped with 9 memory channels You can program often used frequencies into them Switch operation 1 Push and hold CH until the memory channel number blinks Note that push and push and hold performs different functions at right The yoke mounted channel switch cannot be used for memory channel programming During memory channel programming if no operation is performed for approx 15 sec the transceiver automatically operates as following Writes the selected frequency into the selected memory channel Returns to normal operation Protect channel To prevent accidental changes required memory channels can be specified as protected channels Even if is pushed and held the frequency content does not blink and it cannot be changed Your Icom Avionics Dealer can activate and cancel this setting 2 Rotate the large or small tuning knob to select a memory channel to be programmed 3 Push Frequency content or blinks 4 Rotate the large and small tuning knobs to select a desired frequency 5 Push CH to return to normal operation NOTE To program other memory channels successively push after step 4 and repeat steps 2 4 To program a memory channel as a blank channel select Using the large tuning knob appears between 118 MHz and 136 MHz
