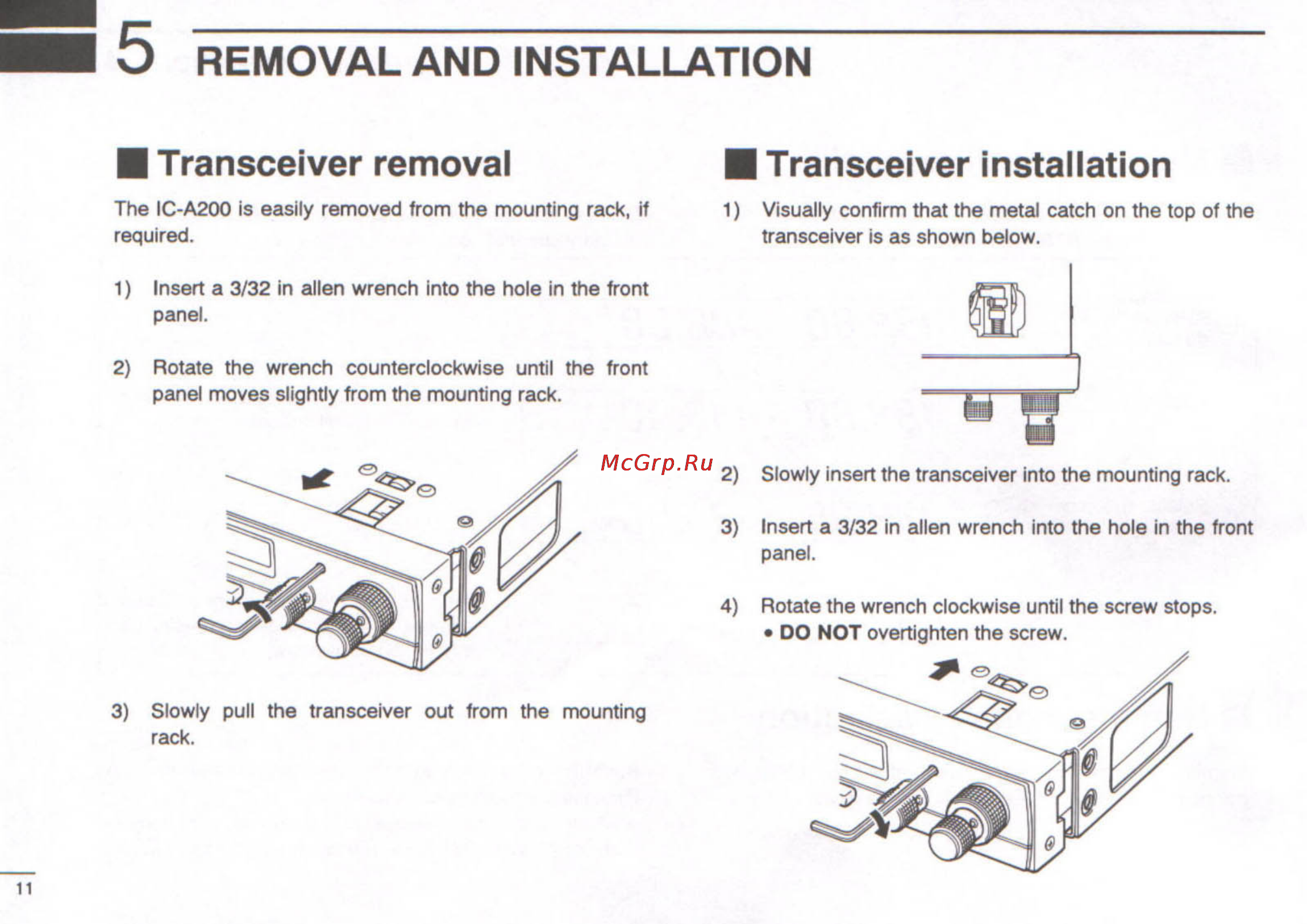

5 REMOVAL AND INSTALLATION Transceiver removal Transceiver installation The IC A200 is easily removed from the mounting rack if required 1 Visually confirm that the metal catch on the top of the transceiver is as shown below 1 Insert a 3 32 in alien wrench into the hole in the front panel 2 Rotate the wrench counterclockwise until the front panel moves slightly from the mounting rack 2 Slowly insert the transceiver into the mounting rack 3 Insert a 3 32 in alien wrench into the hole in the front panel 4 Rotate the wrench clockwise until the screw stops DO NOT overtighten the screw 3 Slowly pull the transceiver out from the mounting rack
