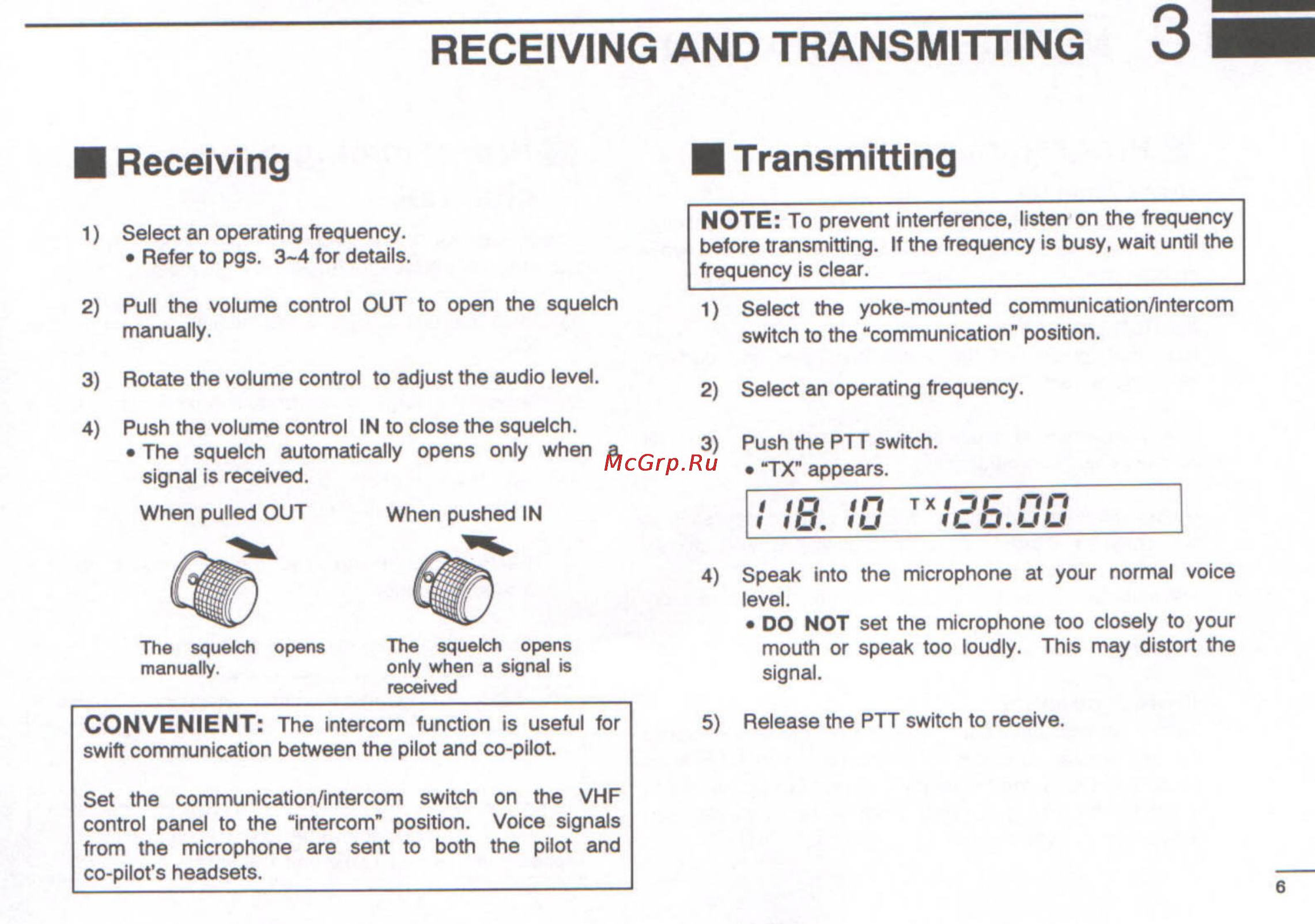

RECEIVING AND TRANSMITTING Transmitting Receiving 1 Select an operating frequency Refer to pgs 3 4 for details NOTE To prevent interference listen on the frequency before transmitting If the frequency is busy wait until the frequency is clear ___________________ 2 Pull the volume control OUT to open the squelch manually 1 Select the yoke mounted communication intercom switch to the communication position 3 Rotate the volume control to adjust the audio level 2 Select an operating frequency 4 Push the volume control IN to close the squelch The squelch automatically opens only when a signal is received 3 Push the PTT switch TX appears When pulled OUT The squelch opens manually When pushed IN The squelch opens only when a signal is received CONVENIENT The intercom function is useful for swift communication between the pilot and co pilot Set the communication intercom switch on the VHF control panel to the intercom position Voice signals from the microphone are sent to both the pilot and co pilot s headsets I Io in UI IC nn I lO IU I С О J U 4 Speak into the microphone at your normal voice level DO NOT set the microphone too closely to your mouth or speak too loudly This may distort the signal 5 Release the PTT switch to receive
