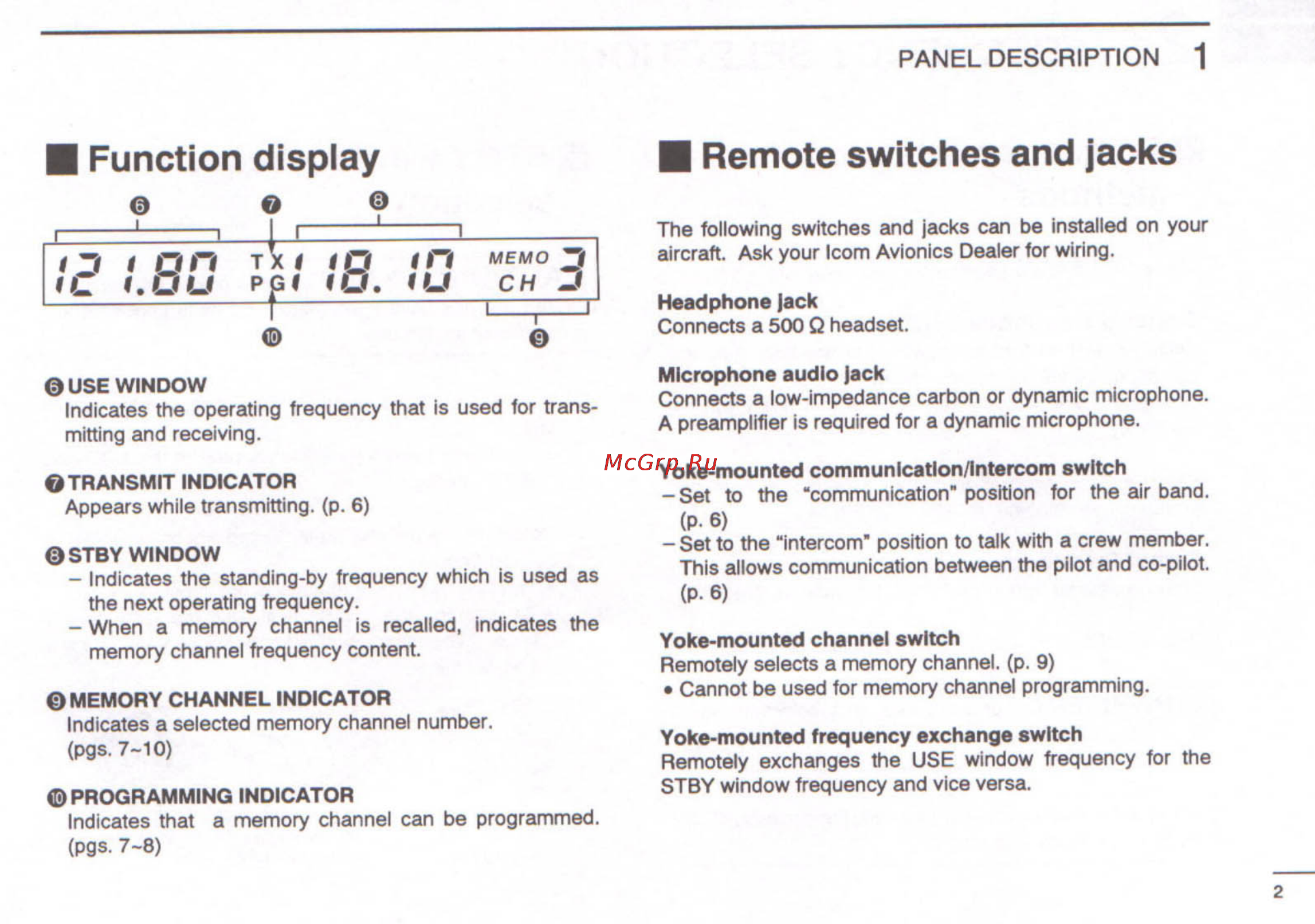

PANEL DESCRIPTION 1 Function display Remote switches and jacks The following switches and jacks can be installed on your aircraft Ask your Icom Avionics Dealer for wiring Headphone jack Connects a 500 Q headset OUSE WINDOW Indicates the operating frequency that is used for trans mitting and receiving TRANSMIT INDICATOR Appears while transmitting p 6 STBY WINDOW Indicates the standing by frequency which is used as the next operating frequency When a memory channel is recalled indicates the memory channel frequency content MEMORY CHANNEL INDICATOR Indicates a selected memory channel number pgs 7 10 PROGRAMMING INDICATOR Indicates that a memory channel can be programmed pgs 7 8 Microphone audio jack Connects a low impedance carbon or dynamic microphone A preamplifier is required for a dynamic microphone Yoke mounted communlcatlon lntercom switch Set to the communication position for the air band P 6 Set to the intercom position to talk with a crew member This allows communication between the pilot and co pilot P 6 Yoke mounted channel switch Remotely selects a memory channel p 9 Cannot be used for memory channel programming Yoke mounted frequency exchange switch Remotely exchanges the USE window frequency for the STBY window frequency and vice versa 2
