D DTMF transmission
If the transceiver has [
DTMF
] key, the automatic DTMF trans-
mission function is available. Up to 7 DTMF channels may
be available.

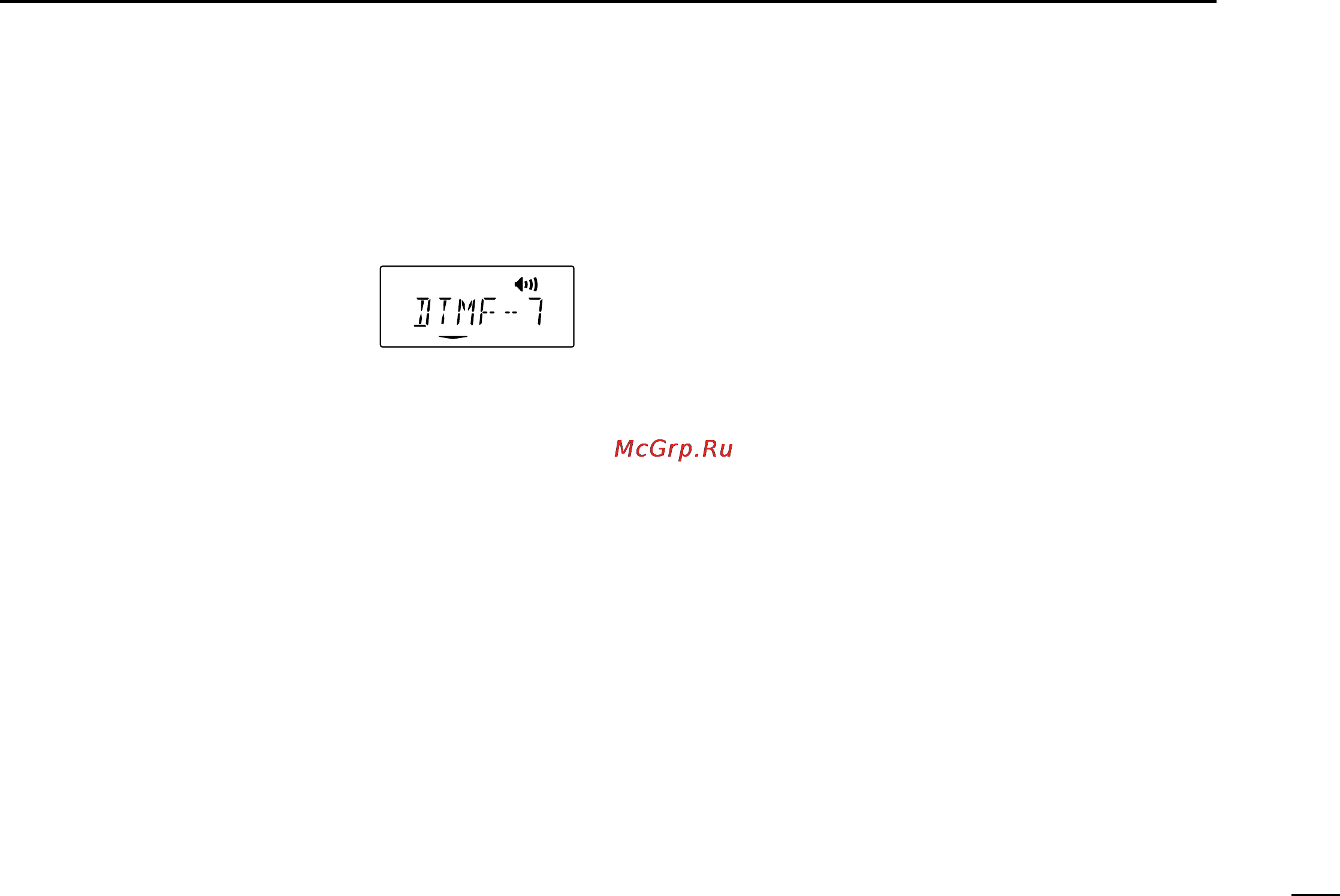

q Push [
DTMF
] to select the display
as at right.
w Push [
CH UP] or [CH DN] to select
the desired DTMF channel.
e Push and hold [
DTMF
] to transmit the DTMF code in the
selected DTMF channel.
