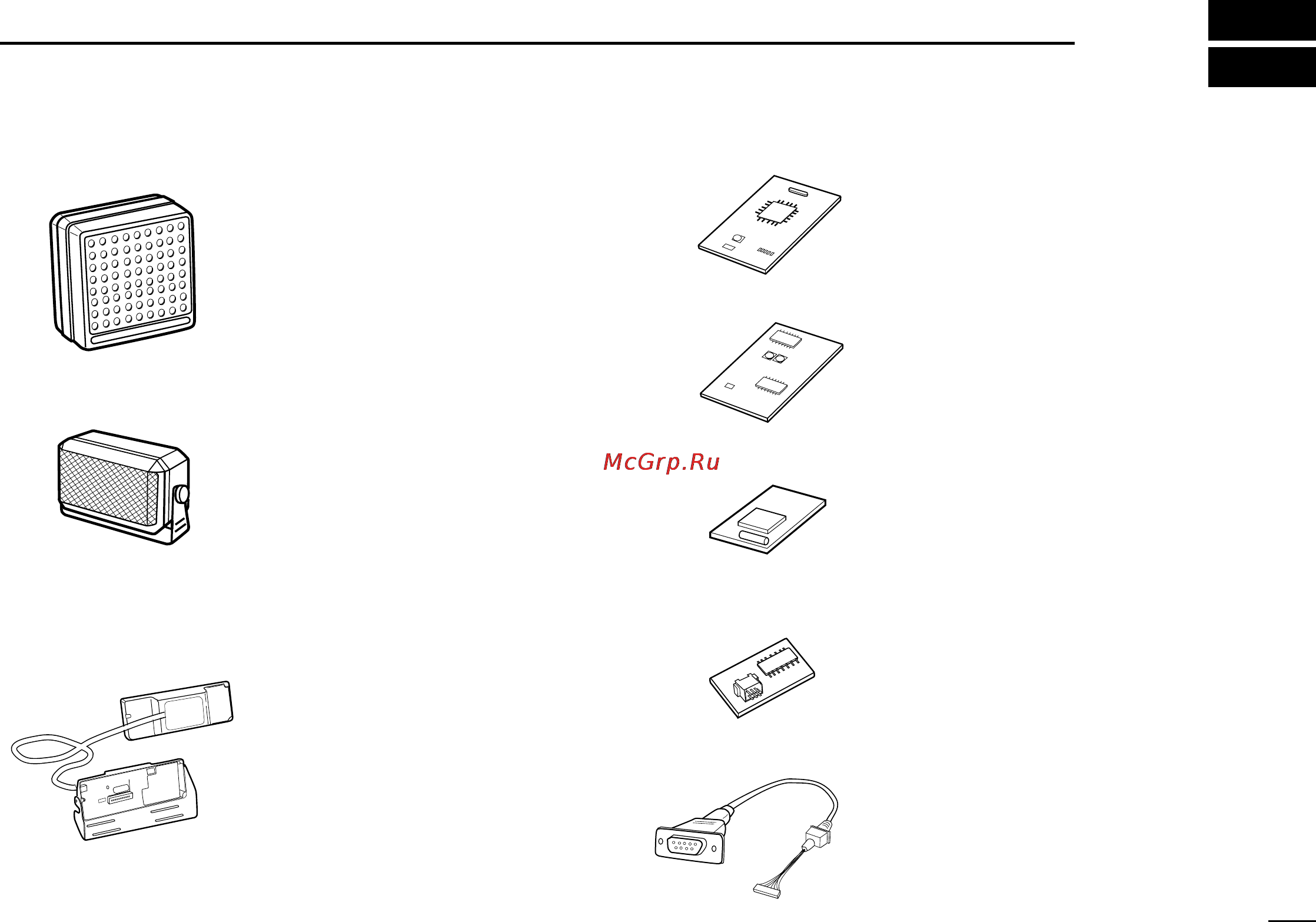

OPTIONS
5
EXTERNAL SPEAKERS
SP-5
Large speaker for good audio
quality.
Input impedance: 4 Ω
Max. input power: 5 W
SP-10
Compact and easy-to-install.
Input impedance: 4 Ω
Max. input power: 5 W
RMK-1 SEPARATION KIT and
SEPARATION CABLE
Allows you for separate installation
of the transceiver main unit and
front panel for easy installation
and good operation convenience.
SEPARATION CABLES:
OPC-607 (3 m), OPC-608 (8 m)
OPC-609 (1.9 m), OPC-726 (5 m)
16
UT-96 5-TONE DECODER UNIT
Provides for the 2-tone decode ca-
pability. The unit has 2 receive
channels with easy PC program-
ming.
UT-80 2-TONE DECODER UNIT
Provides for the 2-tone decode ca-
pability.
UT-105 SmarTrunk II™ Logic
Board
Provides for the SmarTrunk II™
capability.
EX-1761 MEMORY EXPANSION
UNIT
Provides the 160 channels for
large system operation.
OPC-617 ACC CABLE
Allows you to external terminal
connection.
