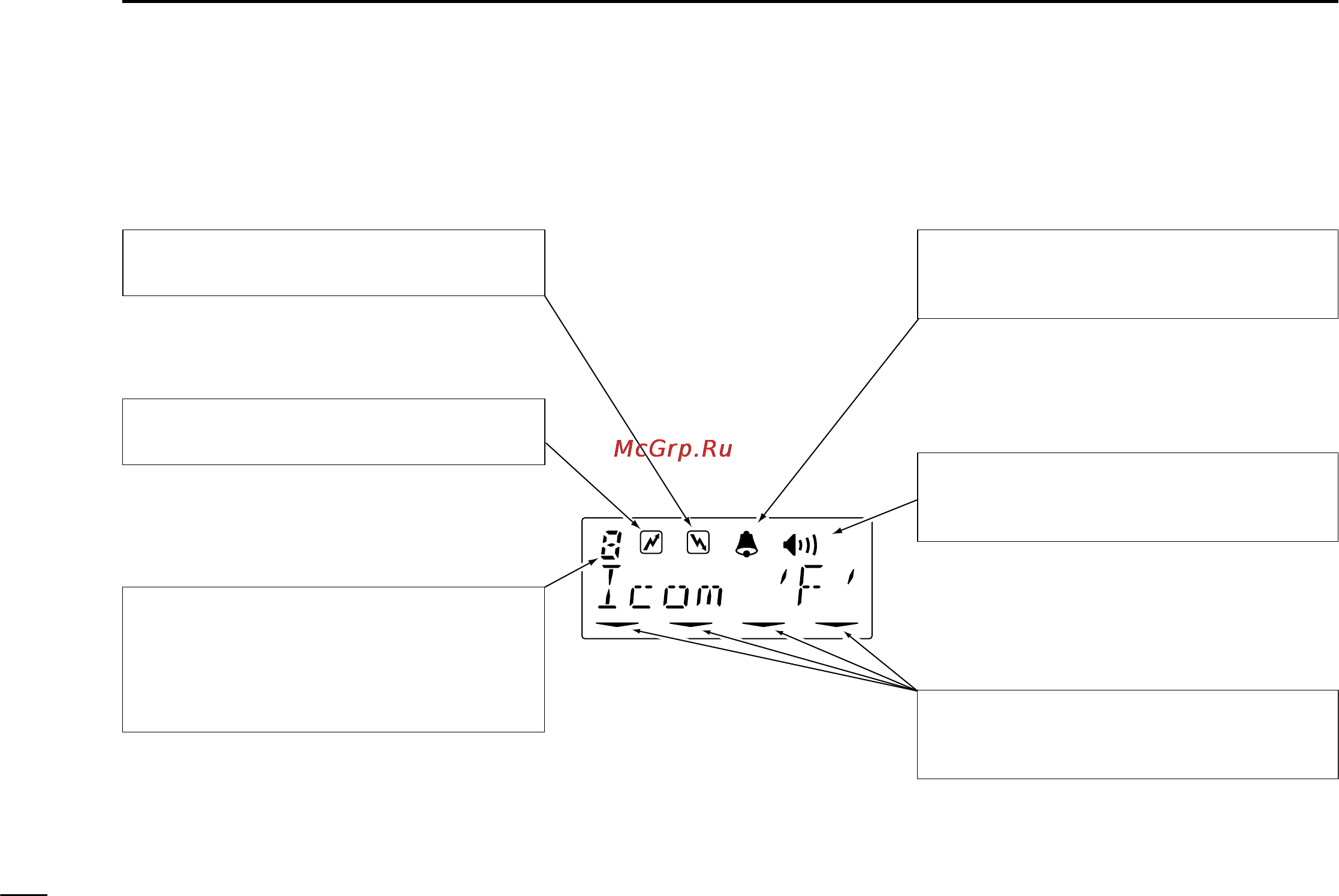

BUSY INDICATOR
Appears while the channel is busy.
TRANSMIT INDICATOR
Appears while transmitting.
AUDIBLE INDICATOR
Appears when monitor function is turned OFF
(CTCSS and DTCS mutes are released).
ACTIVATED KEY INDICATOR
Appears or blinks when the key under this
indicator is activated.
BELL INDICATOR
Appears or blinks when the optional 2-tone call
is received.
BANK NUMBER READOUT
Appears for the ‘Bank’ type and 180 channel
type only.
Shows the selected bank number or a hundred
digit to show more than 100 channels.
1
PANEL DESCRIPTION
5
■Function display
