PANEL DESCRIPTION
3

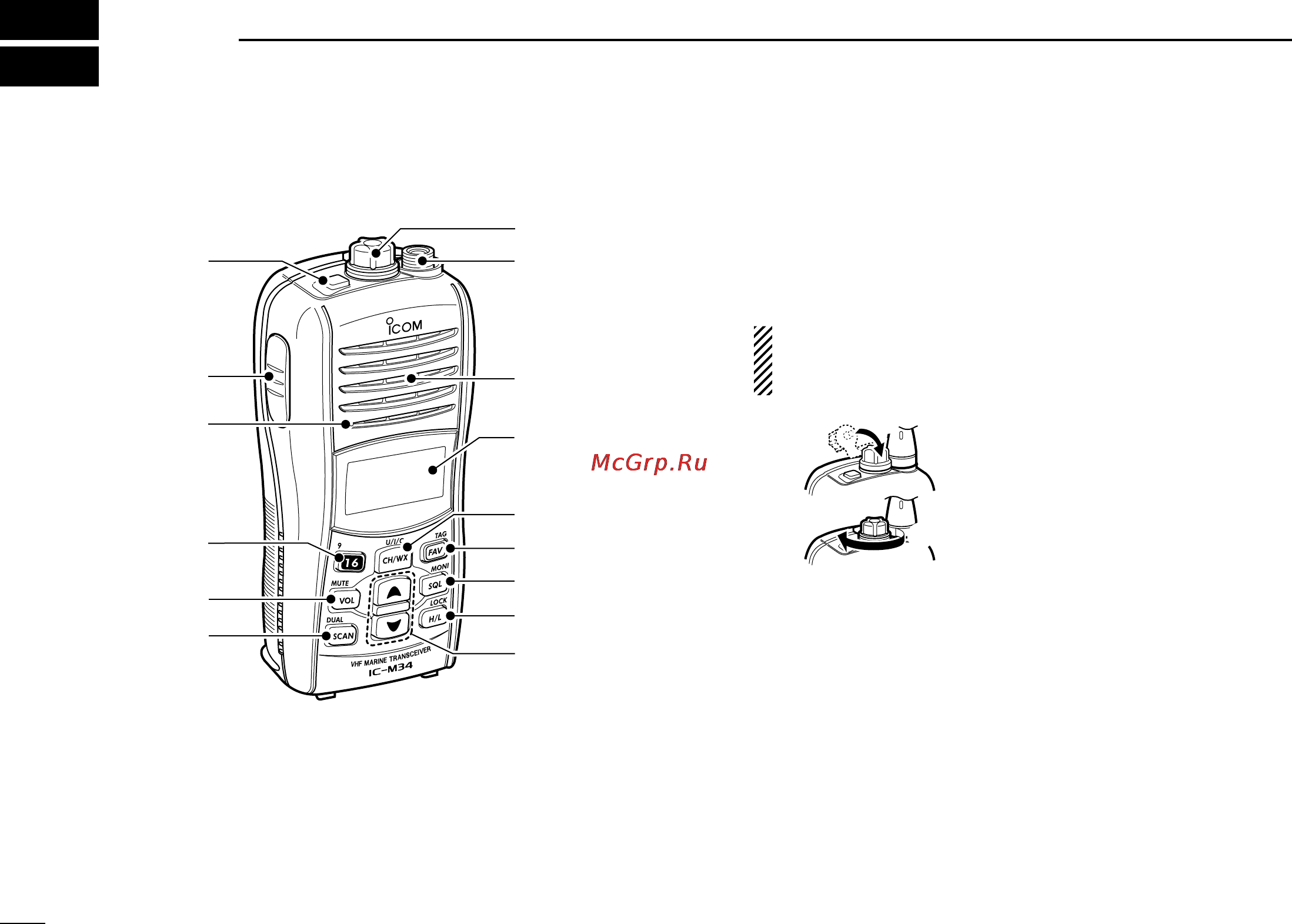

■ Front, top and side panels
q POWER SWITCH [PWR]
Push and hold to turn power ON and OFF.
w SPEAKER-MICROPHONE CONNECTOR [SP MIC] (p. 25)
Connects the optional external speaker-microphone.
NOTE: Attach the [SP MIC] cap when the optional
speaker-microphone is not used. Otherwise, water will
get into the transceiver.
e ANTENNA CONNECTOR (p. 2)
Connects the supplied antenna.
r CHANNEL/WEATHER CHANNEL KEY [CH/WX•U/I/C]
➥ Toggles between the regular channel and weather chan-
nel when pushed. (p. 9)
➥ Selects the U.S.A., International or Canadian channel
group when pushed and held for 1 sec. (p. 9)
➥ Push to return to the previous channel before selecting
channel 16 or the call channel.
q Attach the
[SP MIC]
cap.
w Then rotate it clockwise
completely.
w
q
Microphone
Function display
(pgs. 6, 7)
Speaker
o
!2
!1
!0
i
t
y
u
r
w
q
e
