WARNING
Risk of fire due to short circuit!
If the mains cable/connector of the appliance or of another
appliance touch the rear of the appliance, the mains cable/
connector may be damaged by the appliance vibrations,
leading to a short circuit.
u
Stand the appliance so that it is not touched by connectors
or main cables.
u
Do not plug the appliance or any others into sockets located
near the rear of the appliance.
WARNING
Fire hazard due to refrigerant!
The refrigerant R 600a is environmentally friendly but flam-
mable. Escaping refrigerant may ignite.
u
Do not damage the piping of the refrigeration circuit.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Blocked ventilation openings pose a risk of fire and damage!
u
Always keep the ventilation openings clear. Always ensure
that the appliance is properly ventilated!
u
Detach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because other-
wise there will be vibratory noise!
u
Remove the protective film from the decorative trims.
u
Remove all transit supports.
u
Dispose of packaging material (see 4.5) .
NOTICE
Risk of damage due to condensate!
u
Do not install the appliance directly alongside a further
refrigerator/freezer.
u
Align the appliance so that it
stands firmly and on a level by
applying the accompanying
spanner to the adjustable-
height feet (A) and using a
spirit level.
u
Then support the door: Extend
the adjustable foot at the turn
hinge (B) until it rests on the
floor and then make a further
90° turn.
Note
u
Clean the appliance (see 6.2) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.
4.3 Changing over the door hinges
You can change over the door hinges if necessary.
WARNING*
Risk of injury and damage due to pieces of broken glass!
The glass door is heavy. If it falls or there is impact on the glass
edges, the glass pane may shatter.
u
Protect the door properly when detaching it!
u
Detach the glass door working in a team of two.
u
Put the door down on a soft mat.
Ensure that the following tools are to hand:
q
Torx® 25
q
Torx® 15
q
Screwdriver
q
Cordless screwdriver, if necessary
q
A soft mat
4.3.1 Detaching the lower soft stop mechanism

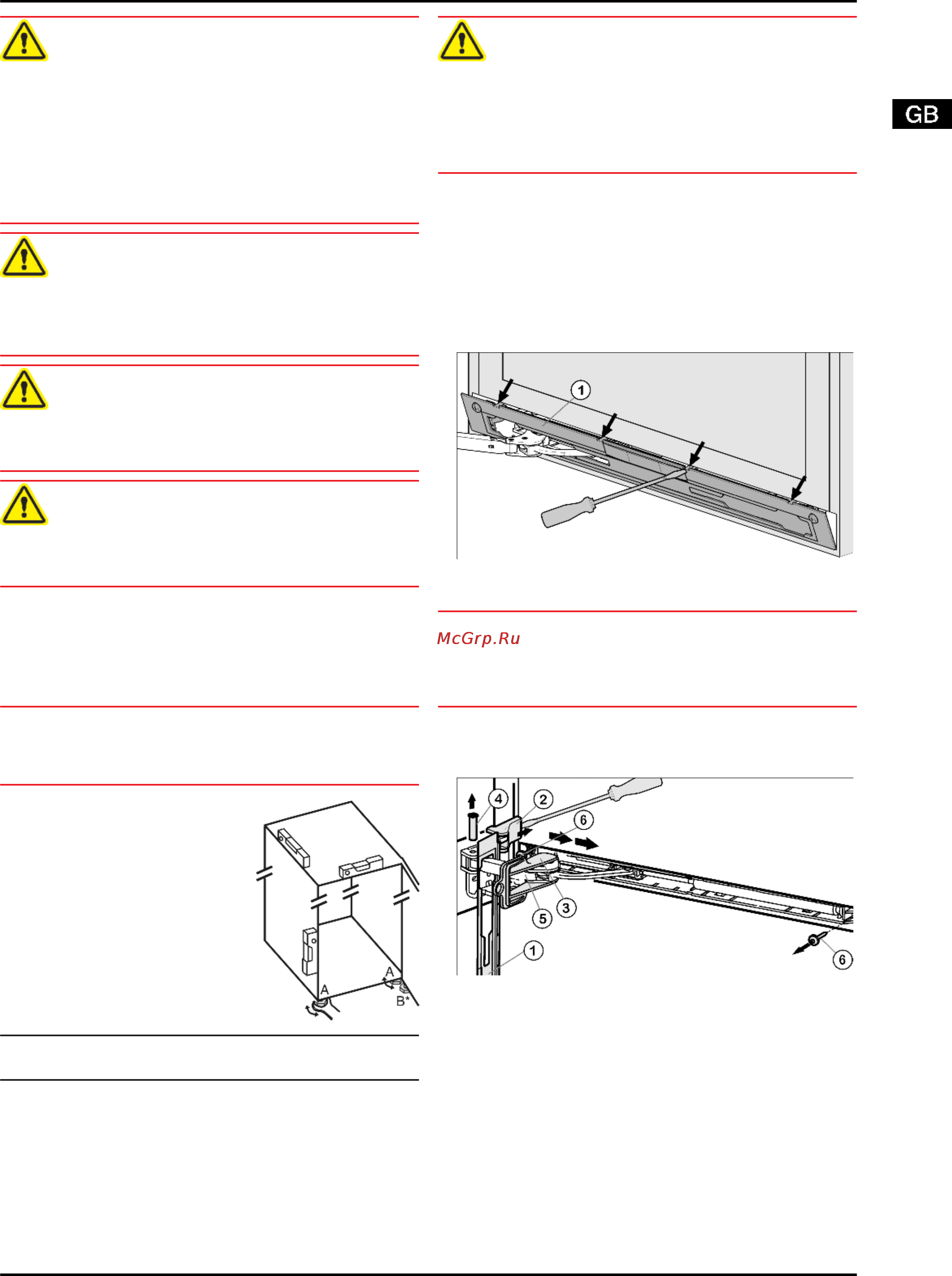

Fig. 4
u
Open the door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Disengage and remove the faceplate
Fig. 4 (1)
using a flat-
blade screwdriver.
w
The faceplate is attached over the soft stop bracket.
Fig. 5
u
Slide the faceplate forwards over the soft stop bracket
Fig. 5 (5)
in the direction of the appliance.
u
Snap the safety lock
Fig. 5 (3)
into the oblong hole.
w
The safety lock prevents the hinge from snap-closing.
u
Using a screwdriver, lift off the cover
Fig. 5 (2)
from the
outside and remove it in an outward direction.
u
If necessary, tip the appliance backwards with the assis-
tance of a second person.
u
Press the pin
Fig. 5 (4)
out from underneath.
u
Press the soft stop bracket
Fig. 5 (5)
towards the door.
u
Remove the faceplate
Fig. 5 (1)
.
u
Unscrew the entire soft stop unit (2x Torx® 15)
Fig. 5 (6)
.
u
Pull the soft stop unit out a little, push it in the direction of the
handle side and swing it out.
u
Set the soft stop unit aside.
Putting into operation
5
