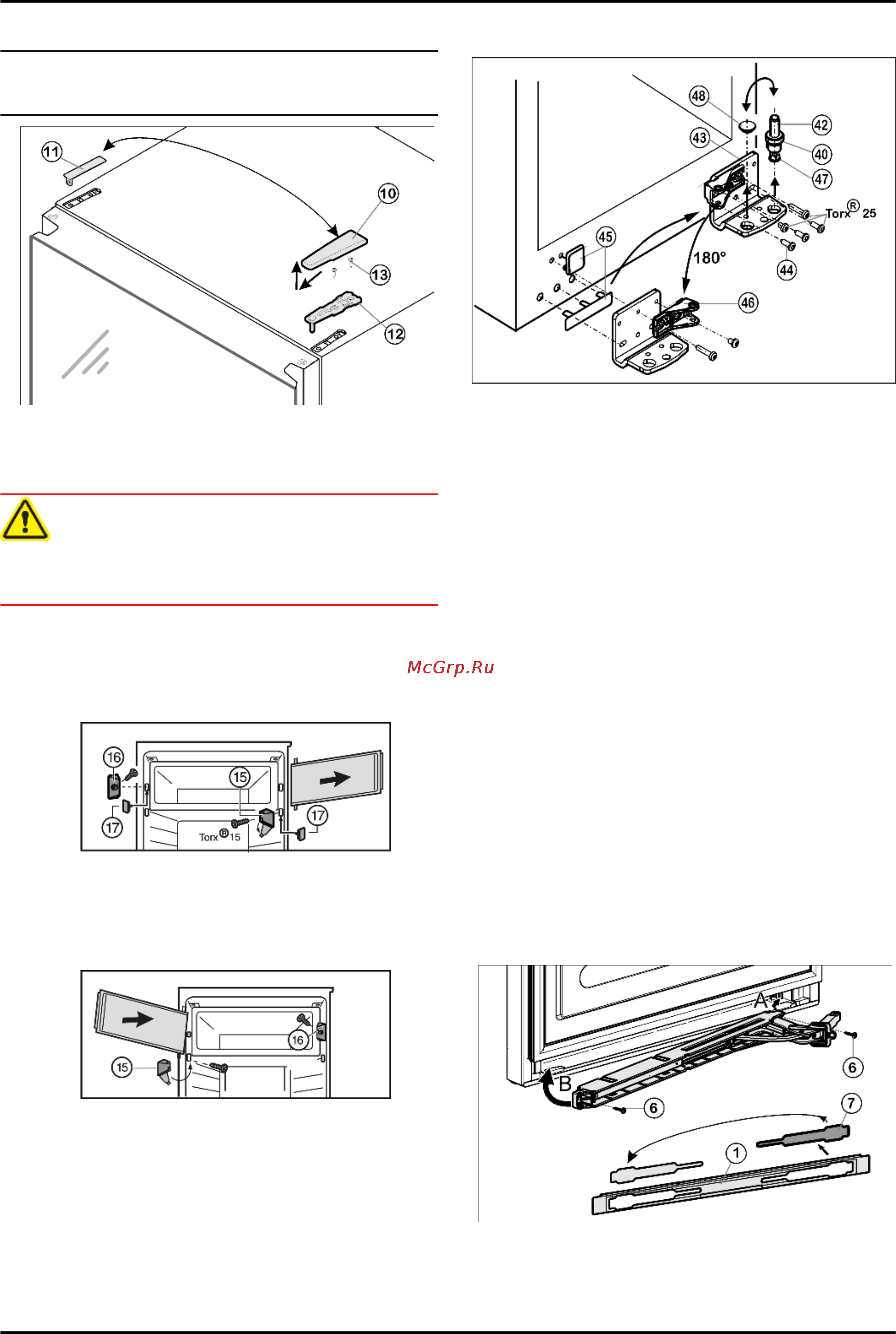

4.3.2 Detaching the door
Note
u
Remove any food from the door racks before removing the
door, so that no food falls out.
Fig. 6
u
Close the door.
u
Pull off the cover
Fig. 6 (10)
forwards and upwards.
u
Lift off the cover
Fig. 6 (11)
.
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Unscrew the upper turn hinge
Fig. 6 (12)
(2x Torx® 25)
Fig. 6 (13)
and raise it for removal.
u
Lift off the door and set it aside.
4.3.3 Changing the freezer compartment door
Fig. 7
u
Fold away the cover of the turn hinge
Fig. 7 (15)
.
u
Unscrew turn hinge
Fig. 7 (15)
together with compartment
door.
u
Unscrew closing element
Fig. 7 (16)
.
u
Close the vacated holes with the accompanying stoppers
Fig. 7 (17)
.
Fig. 8
u
Fit the closing element
Fig. 8 (16)
.
u
Fit the compartment door at the top.
u
Fit the turn hinge
Fig. 8 (15)
and fold the cover.
4.3.4 Transferring bearing parts
Fig. 9
u
Lift out the bearing pin
Fig. 9 (42)
together with washer
Fig. 9 (40)
and adjustable-height foot
Fig. 9 (47)
.
u
Lift off the stopper
Fig. 9 (48)
.
u
Unscrew the turn hinge
Fig. 9 (43)
.
u
Carefully lift off the covers on the handle side
Fig. 9 (45)
and
transfer them to the opposite side.
u
Screw the bottom turn hinge
Fig. 9 (43)
firmly into place
(with 4 Nm) on the new hinge side, possibly using a cord-
less screwdriver.
u
Unscrew the bearing element
Fig. 9 (46)
, turn it through
180° and screw it back firmly into place, always screw the
long screw into the oblong hole.
u
Re-insert the stopper
Fig. 9 (48)
into the other hole.
u
Re-insert the bearing pin
Fig. 9 (42)
together with the
washer and adjustable-height foot. In so doing, pay attention
that the locating lug points backwards
4.3.5 Fitting the door
u
Place the door from above onto the lower bearing pin
Fig. 9 (42)
.
u
Close the door.
u
Insert the upper turn hinge
Fig. 6 (12)
in the door on the new
hinge side.
u
Screw the upper turn hinge
Fig. 6 (12)
firmly into place (with
4 Nm)(2x Torx® 25)
Fig. 6 (13)
. Possibly make preliminary
holes with a bradawl or use a cordless screwdriver.
u
Snap the cover
Fig. 6 (10)
and cover
Fig. 6 (11)
into place at
the opposite side.
4.3.6 Fitting the lower soft stop mechanism
Fig. 10
u
Remove the cover
Fig. 10 (7)
from the faceplate
Fig. 10 (1)
and re-insert it at the other side.
Putting into operation
6
