Preparation Before Operation
To operate the remote
controller

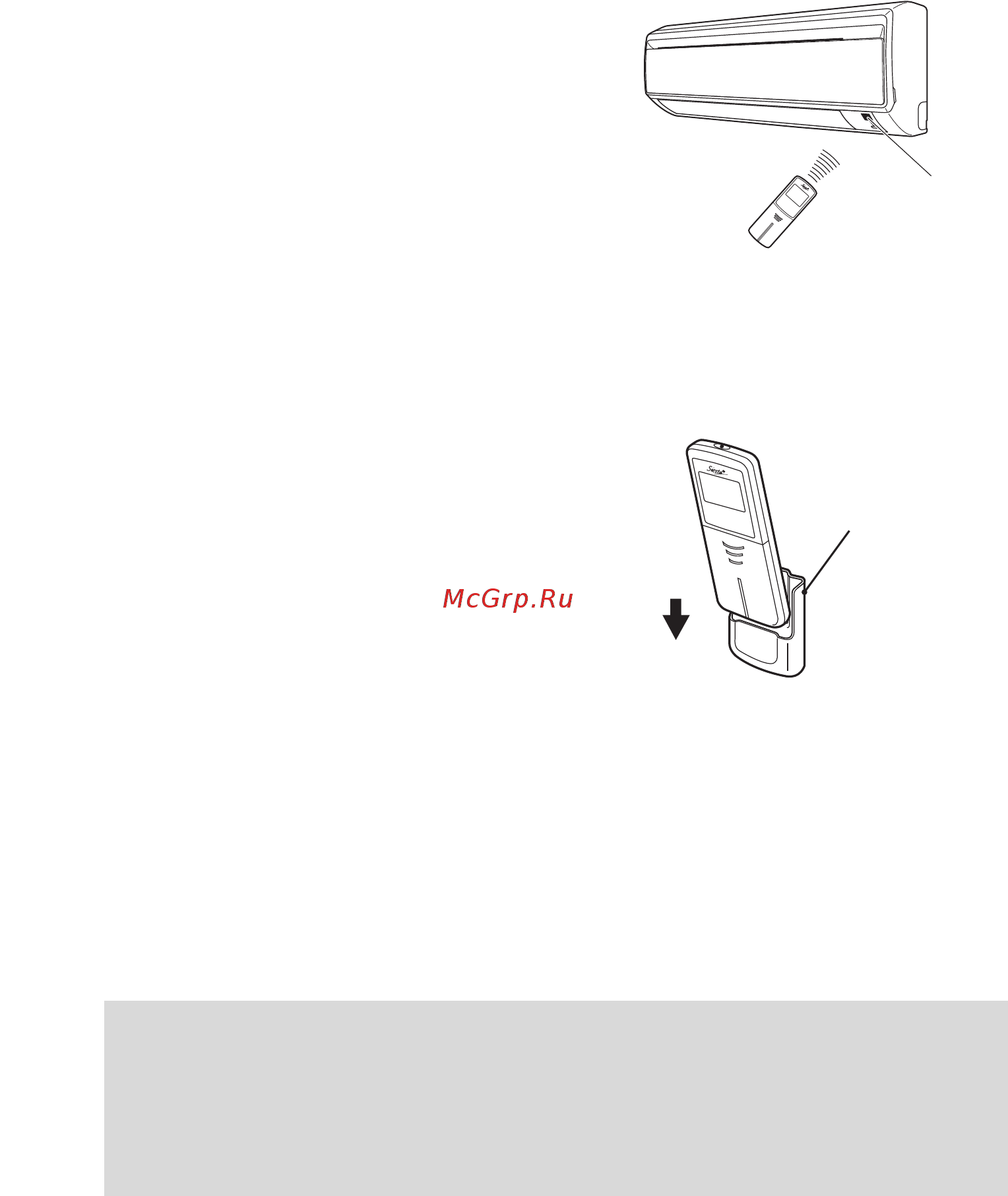

• To use the remote controller, aim the transmitter
at the indoor unit. If there is anything to block
signals between the unit and the remote
controller, such as a curtain, the unit will not
operate.
•
Do not drop the remote controller. Do not get it wet.
• The maximum distance for communication is
about 7m.
To fix the remote controller
holder on the wall
1. Choose a place from where the
signals reach the unit.
2. Fix the holder to a wall, a pillar, or
similar location with the screws
procured locally.
3. Place the remote controller in the
remote controller holder.
ATTENTION
About remote controller
• Never expose the remote controller to direct sunlight.
•
Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such
as inverter-type lamps) is in the room. Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance
to somewhere else, or consult the shop.
R
Receiver
R
Remote controller
holder
Set.
l
To remove, pull it upwards.
