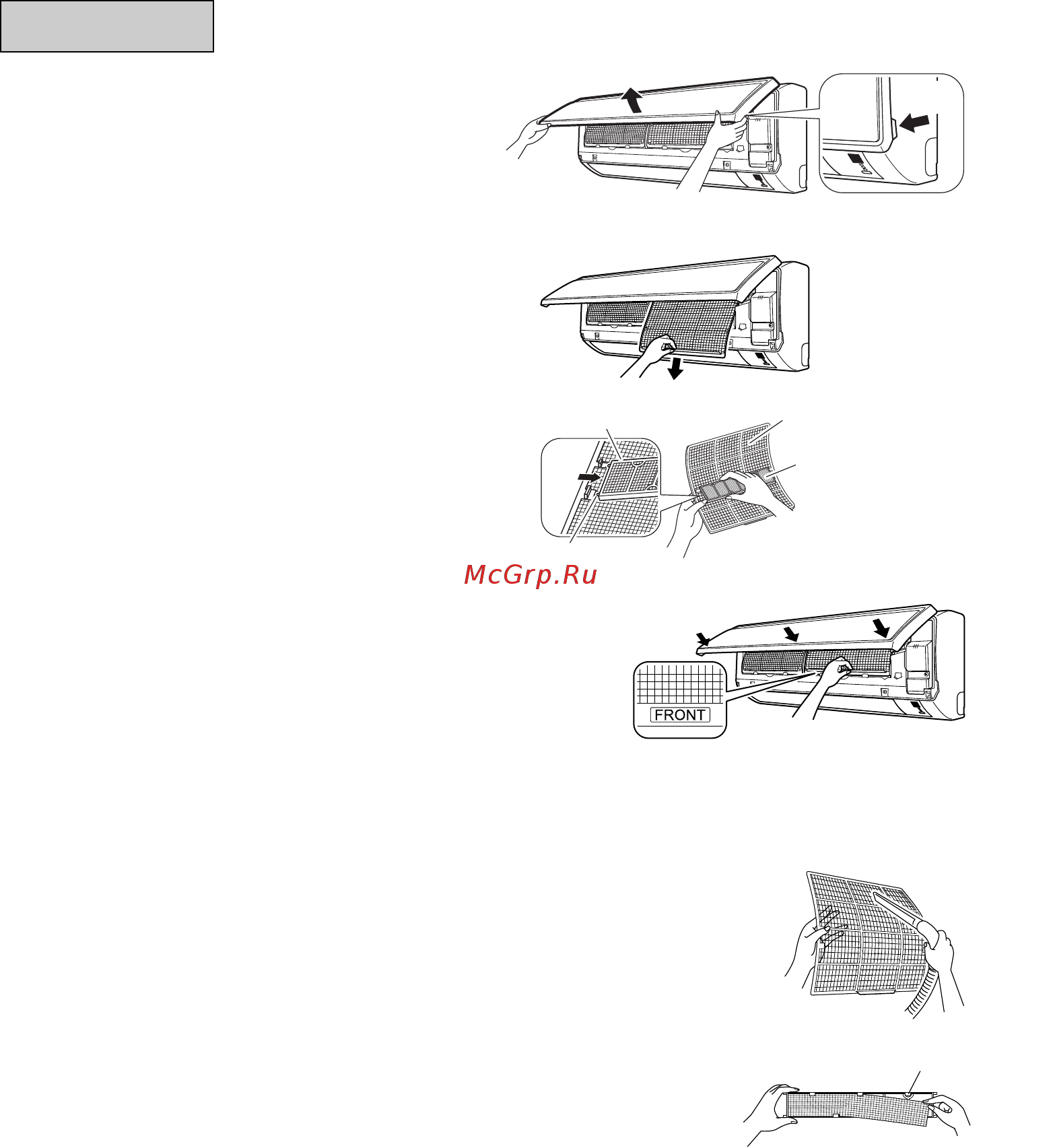

Daikin ATX25J2V1B [21/28] Filters

1. Open the front panel. (page 18.)

• Hold the panel at the recesses on the

main unit (2 recesses on right and left

sides) and lift it until it stops.

2. Pull out the air filters.

• Push the filter tab at the center of each air filter a little upwards, then pull it down.

3. Take off the Titanium apatite

deodorizing filter.

• Hold the recessed parts of the frame and

unhook the four claws.

4. Clean or replace each filter.

See figure.

• When shaking off remaining water, do not

wring the filter.

5. Set the air filter and Titanium

apatite deodorizing filter as they were

and close the front panel.

• Insert claws of the filters into slots of the front panel.

Close the front panel slowly and push the panel at the

3 points. (1 on each side and 1 in the middle.)

• The air filter and the Titanium apatite deodorizing

filter have a symmetrical form in the horizontal

direction.

 Air Filter

1. Wash the air filters with water or clean them

with vacuum cleaner.

• If the dust does not come off easily, wash them with neutral

detergent thinned with lukewarm water, then dry them up in the

shade.

• It is recommended to clean the air filters every two weeks.

 Titanium apatite deodorizing filter.

The Titanium apatite deodorizing filter can be renewed by washing it

with water once every 6 months. We recommend replacing it once

every 3 years.

Filters

Recess on

main unit

Air filter

Titanium apatite

deodorizing filter

Filter frame

Ta b

Tab
