Daikin ATX25J2V1B [8/28] Remote controller
![Daikin ATX25J2V1B [8/28] Remote controller](/views2/1746307/page8/bg8.png)
6

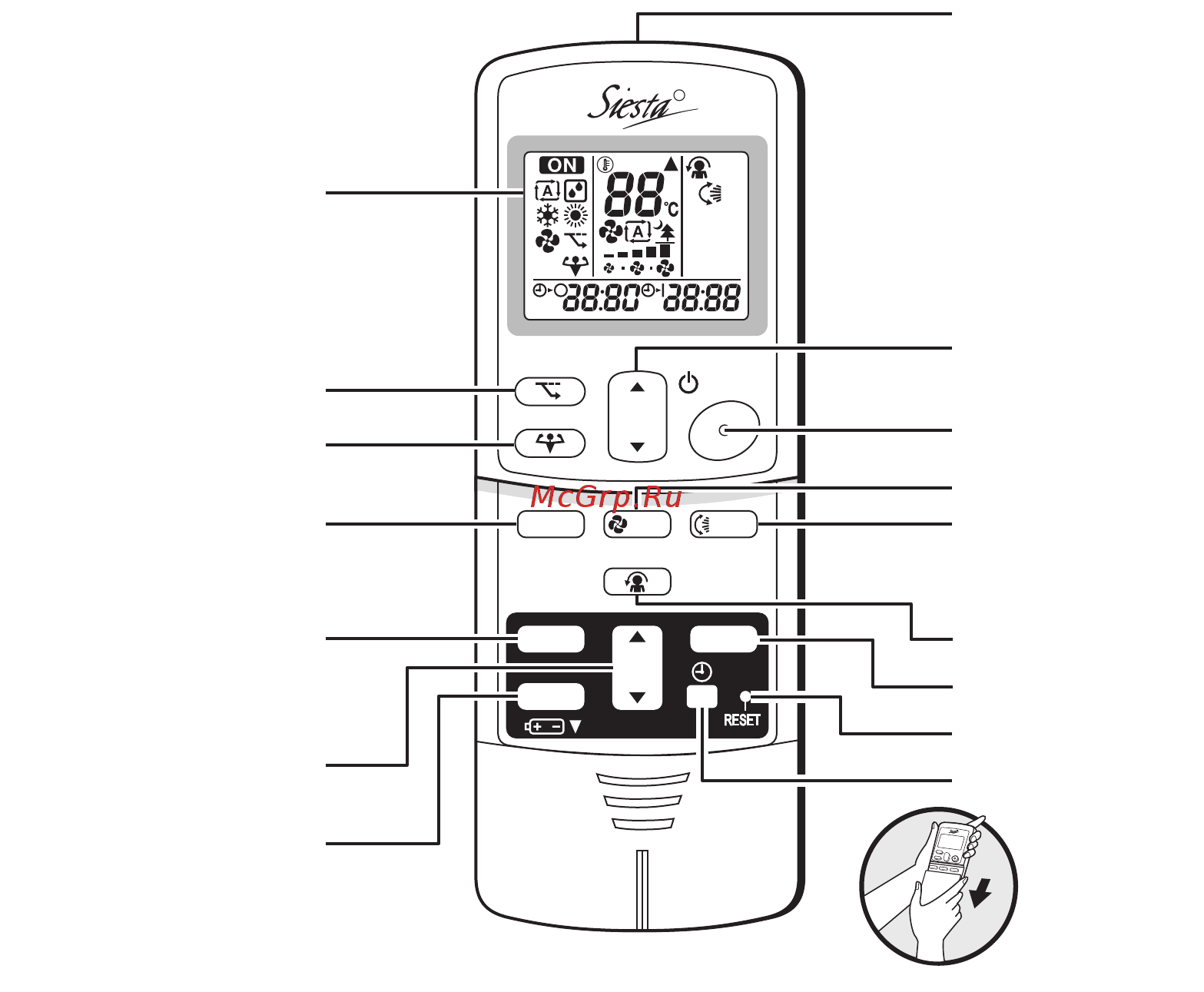

Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. ECONO button:
ECONO operation (page 15.)
4. POWERFUL button:
POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
•
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. FAN setting button:
• It selects the airflow rate setting.
9. SWING button:
• Ajusting the Airflow Direction. (page 12.)
10. COMFORT AIRFLOW button: COMFORT
AIRFLOW operation (page 13.)
11. ON TIMER button: (page 17.)
12. OFF TIMER button: (page 16.)
13. TIMER Setting button:
• It changes the time setting.
14. TIMER CANCEL button:
• It cancels the timer setting.
15. CLOCK button: (page 9.)
16. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
TEMP
ON/OFF
POWERFUL
MODE FAN
SWING
ECONO
COMFORT
TIMER
ON
CANCEL
OFF
1
2
5
6
8
9
10
14
16
15
11
13
12
<
ARC433A89
>
3
4
7
R
R
3PEN291652-2E.book Page 6 Wednesday, February 8, 2017 10:13 AM
