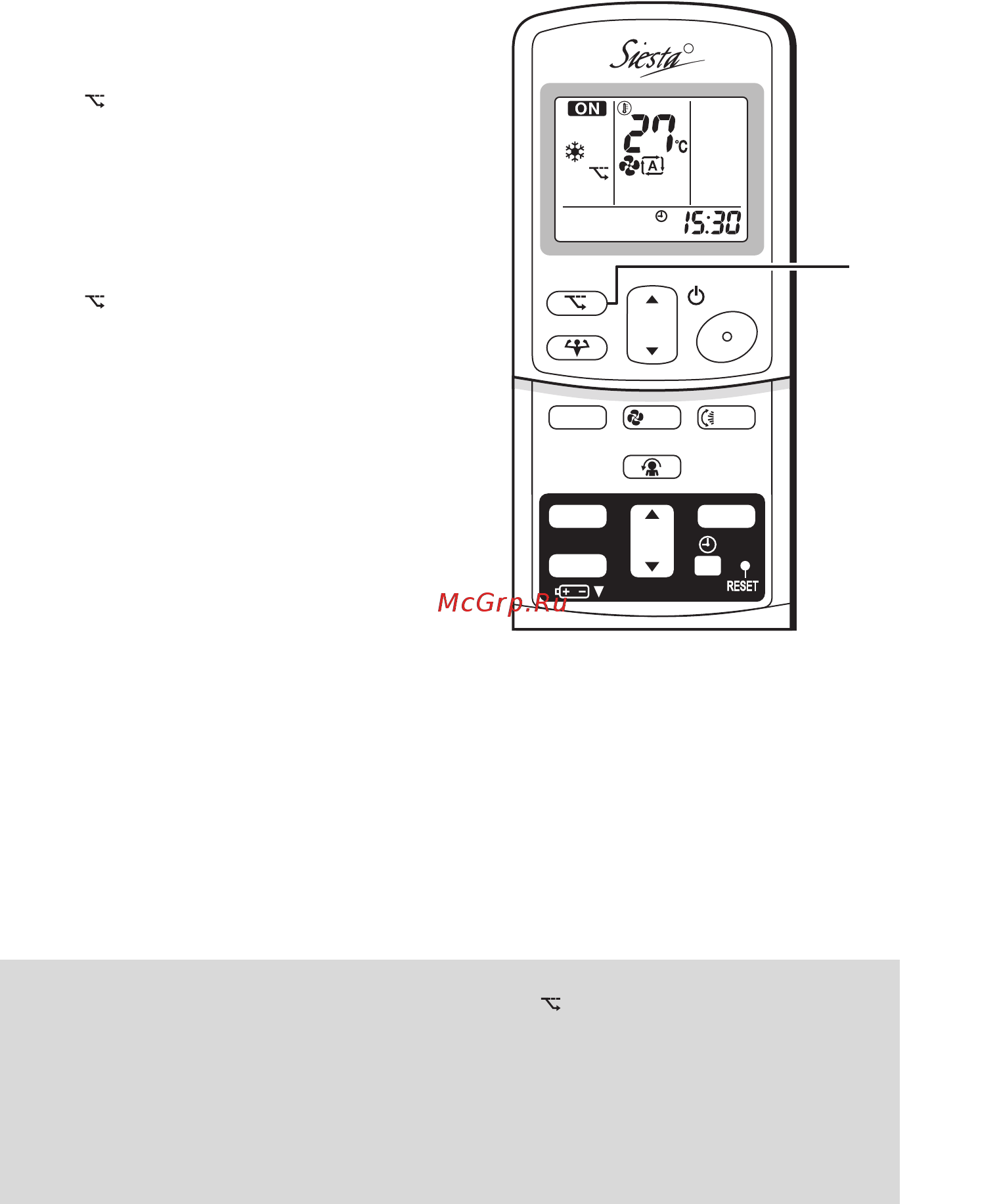

ECONO Operation
ECONO operation is a function which enables efficient operation by lowering the maximum power
consumption value.
To start ECONO operation
1. Press “ECONO button”.
• “ ” is displayed on the LCD.
To cancel ECONO
operation
2. Press “ECONO button” again.
• “ ” disappears from the LCD.
NOTE
• ECONO Operation can only be set when the unit is running. Pressing the operation stop
button causes the settings to be canceled, and the “ ” disappears from the LCD.
• ECONO operation is a function which enables efficient operation by limiting the power
consumption of the outdoor unit (operating frequency).
• ECONO operation functions in AUTO, COOL, DRY, and HEAT modes.
• POWERFUL operation and ECONO operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
• Power consumption may not drop even if ECONO operation is used, when the level of
power consumption is already low.
TEMP
ON/OFF
POWERFUL
MODE
FAN
SWING
ECONO
COMFORT
TIMER
ON
CANCEL
OFF
1, 2
R
