4
2 PANEL DESCRIPTION
New2001

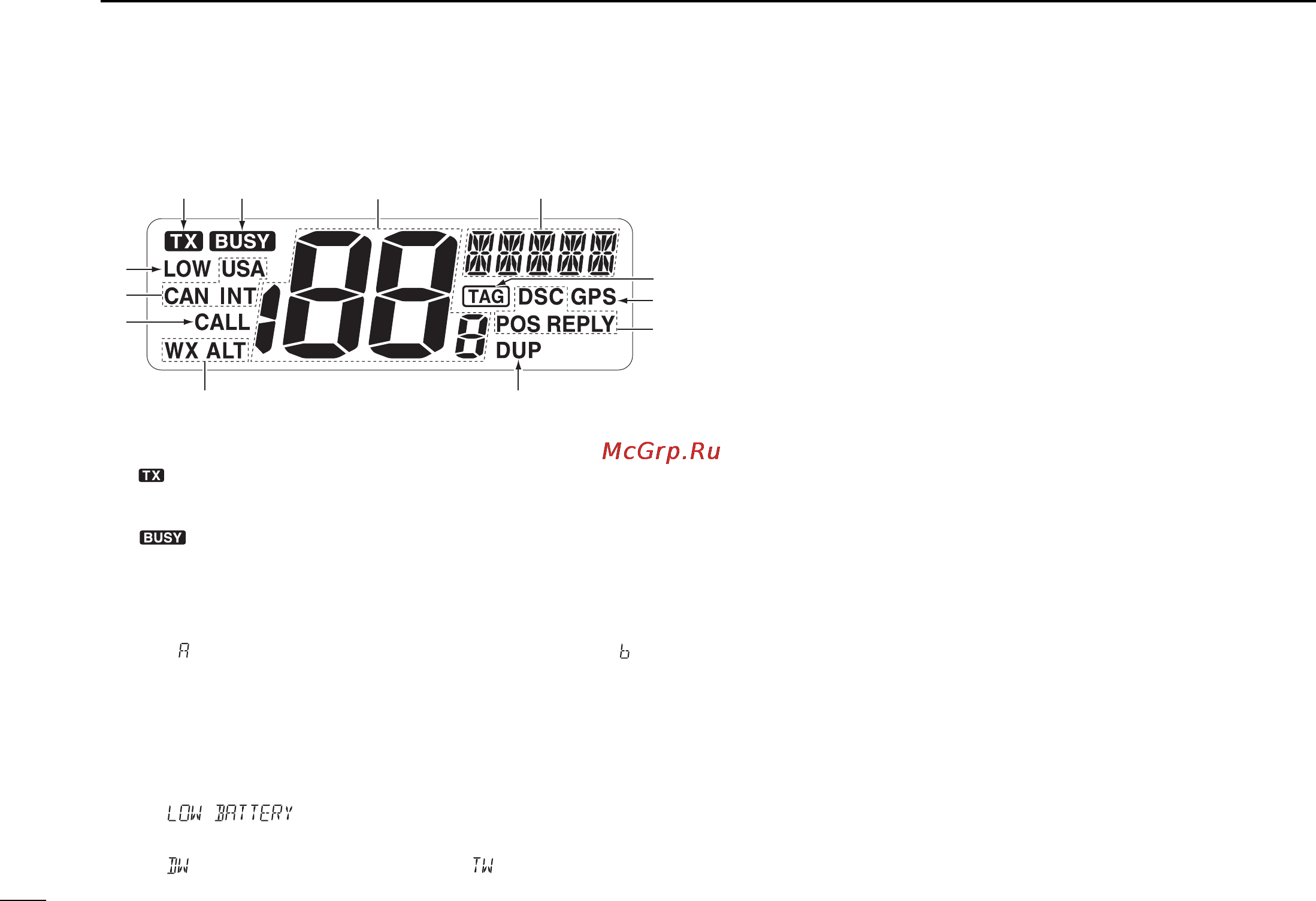

■ Function display
q TRANSMIT INDICATOR (p. 8)
“” appears while transmitting.
w BUSY INDICATOR (p. 8)
“” appears when receiving a signal or when the
squelch opens.
e CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
• “” appears when a simplex channel is selected. “” ap-
pears when a receive only channel for a Canadian channel
group is selected. (p. 7)
➥ In Set mode, indicates the selected condition. (p. 28)
r CHANNEL COMMENT INDICATOR
➥ Channel comment appears if programmed. (p. 10)
➥ “” scrolls when the battery voltage drops
to approx. 10 V DC or below.
➥ “” blinks during Dualwatch; “” blinks during Tri-
watch. (p. 11)
t TAG CHANNEL INDICATOR (p. 13)
Appears when a tag channel is selected.
y GPS INDICATOR
➥ Appears while valid position data is received.
➥ Blinks when invalid position data is received.
➥ Disappears when no GPS receiver is connected.
u DSC INDICATOR
Indicates the DSC status.
➥ “DSC” appears when a DSC call is received. (p. 25)
➥ “POS REPLY” appears when a Position Request Reply
call or Position Report Reply call is received. (p. 27)
i DUPLEX INDICATOR (p. 7)
Appears when a duplex channel is selected.
o WEATHER CHANNEL INDICATOR (pgs. 7, 29)
➥ “WX” appears when a weather channel is selected.
➥ “WX ALT” appears when the Weather alert function is
in use; blinks when an alert tone is received.
!0 CALL CHANNEL INDICATOR (p. 6)
Appears when the call channel is selected.
!1 CHANNEL GROUP INDICATOR (p. 7)
Indicates whether a U.S.A. “USA,” International “INT” or
Canadian “CAN” channel is in use.
!2 LOW POWER INDICATOR (p. 8)
Appears when low power is selected.
t
w
e
r
q
u
y
i
o
!0
!2
!1
!IC-M302-1.qxd 03.10.27 9:06 AM Page 4 (1,1)
