33
8
CONNECTIONS AND MAINTENANCE
New2001
8
■ Mounting the transceiver
ïï

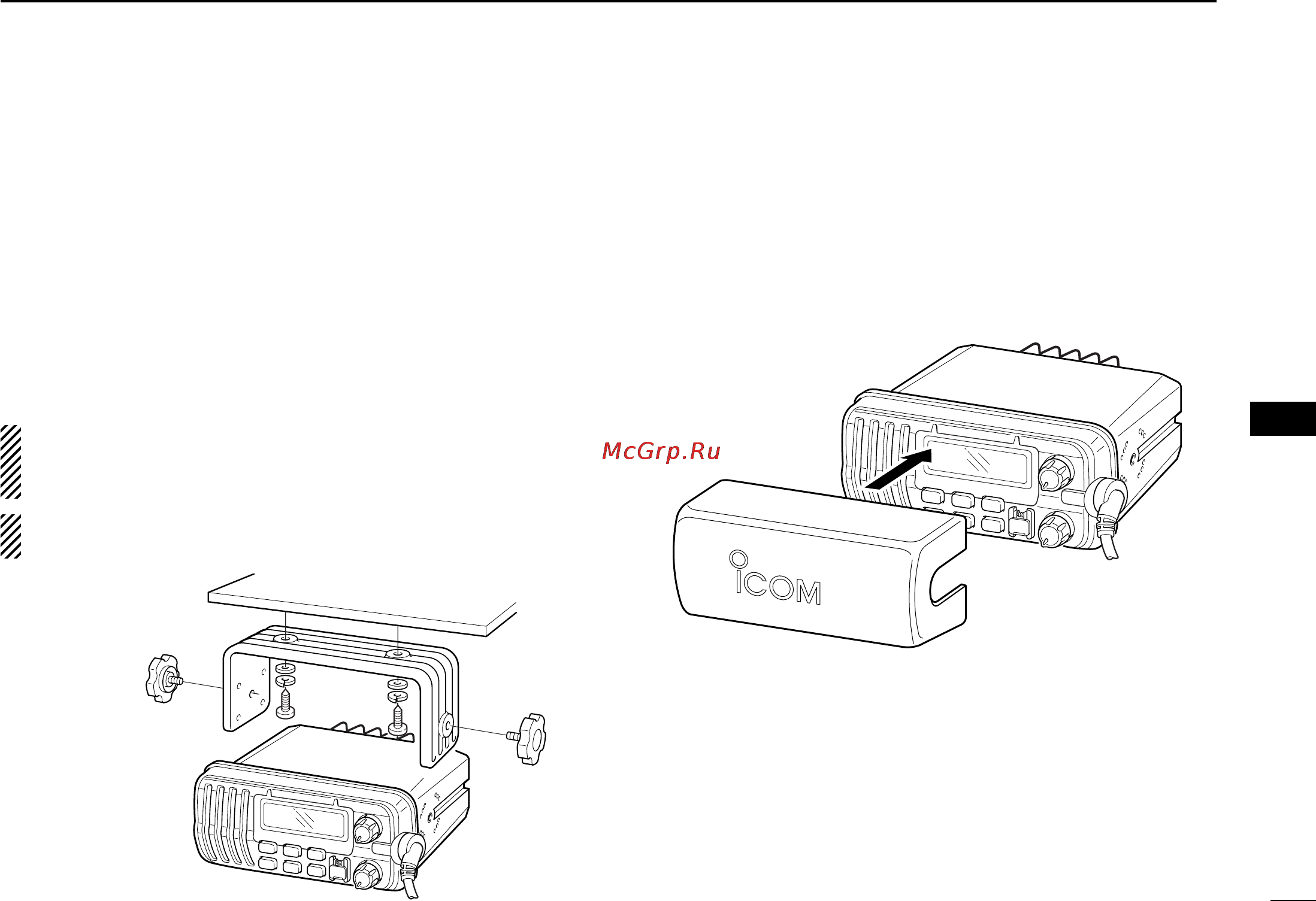

Using the supplied mounting bracket
The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting.
• Mount the transceiver securely with the 2 supplied screws
(5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90° to your line of sight when operating it.
CAUTION: KEEP the transceiver and microphone at least
1 meter away from your vessel’s magnetic navigation com-
pass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
■ Optional MB-92 attachment
An optional MB-92
DUST COVER
is available for attaching the
transceiver’s front panel to prevent the keys and knobs get-
ting wet when the transceiver is not used.
➥ Attach the optional MB-92
DUST COVER
to the transceiver
as shown below.
EXAMPLE
