6 DSC OPERATION

New2001

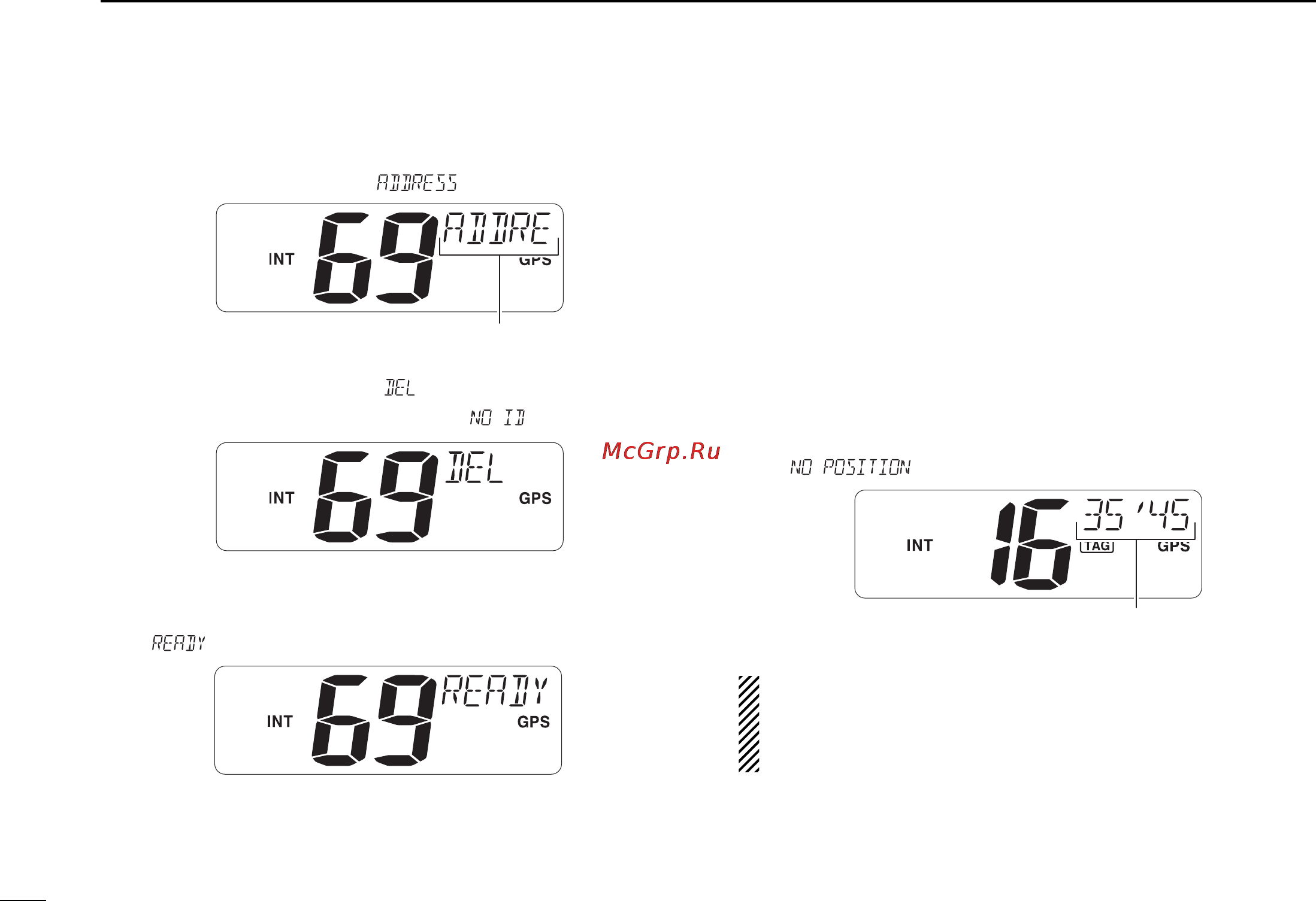

D Deleting Address ID/Group ID

q Push [DSC•POS] to enter the DSC menu.

w Push [Y] or [Z] to select “” and push [DSC•

POS].

e Push [Y] or [Z] to select “”, then push [DSC•

POS].

• When no address ID is programmed, “” is displayed.

r Push [Y] or [Z] to select the desired ID name for deleting

and push [DSC•

POS].

• “” appears.

t Push [DSC•POS] to delete the address ID and exit the

DSC menu.

■ Position indication

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-

nected, the transceiver indicates the current position data in

seconds of accuracy.

An NMEA0183 ver. 2.0 or 3.01 (sentence formatters RMC,

GGA, GNS, GLL) compatible GPS receiver is required. Ask

your dealer about suitable GPS receivers.

➥ Push [DSC•

POS] for 1 sec. to display the current position.

•‘Latitude’ and ‘Longitude’ scroll in sequence at the channel com-

ment indicator.

• “” scrolls when no GPS is connected.

• When connecting GPS receiver is compatible with sev-

eral sentence formatters, the order of input precedence

is ‘RMC,’‘GGA,’‘GNS’ and ‘GLL.’

• “GPS” blinks when the GPS data is invalid.

Scrolls
