32
8 CONNECTIONS AND MAINTENANCE
New2001
■ Connections

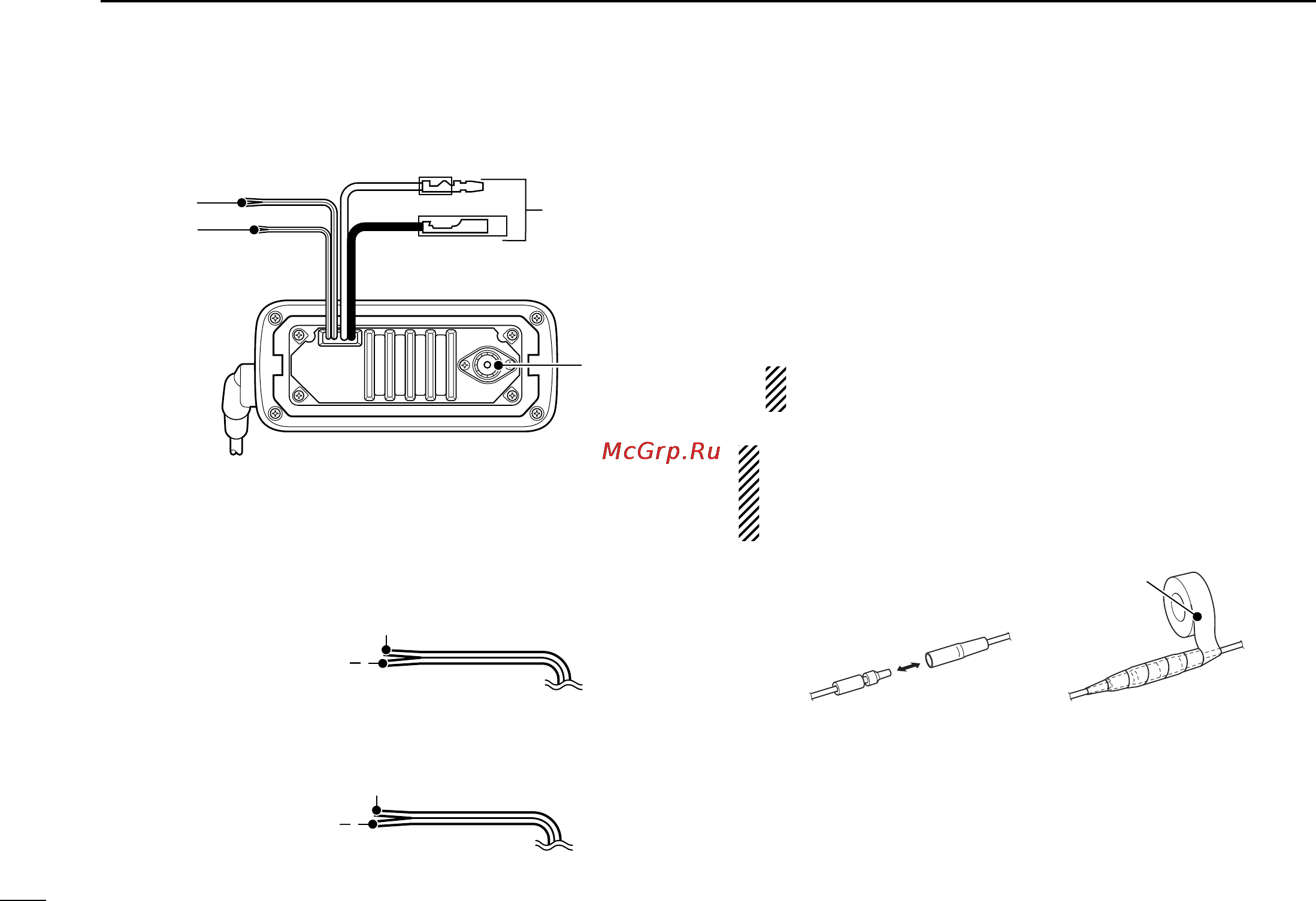

q GPS RECEIVER LEAD
Connects to a GPS receiver for position indication.
• An NMEA0183 ver. 2.0 or 3.01 (sentence formatters RMC, GGA,
GNS, GLL) compatible GPS receiver is required. Ask your dealer
about suitable GPS receivers.
w EXTERNAL SPEAKER LEAD
Connects to an external speaker.
e DC POWER CONNECTOR
Connects the supplied DC power cable from this connector
to an external 12 V battery.
r ANTENNA CONNECTOR
Connects a marine VHF antenna with a PL-259 connector
to the transceiver.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
CAUTION: After connecting the DC power cable, GPS re-
ceiver lead and external speaker lead, cover the connector
and leads with an adhesive tape as shown below, to pre-
vent water seeping into the transceiver.
Rubber vulcanizing
tape
Blue: Speaker (+)
Gray: Speaker ( )
Yellow: NMEA IN (+)
Green: NMEA IN ( )
q
w
e
r
!IC-M302-1.qxd 03.10.27 9:07 AM Page 32 (1,1)
