PANEL DESCRIPTION
New2001
2

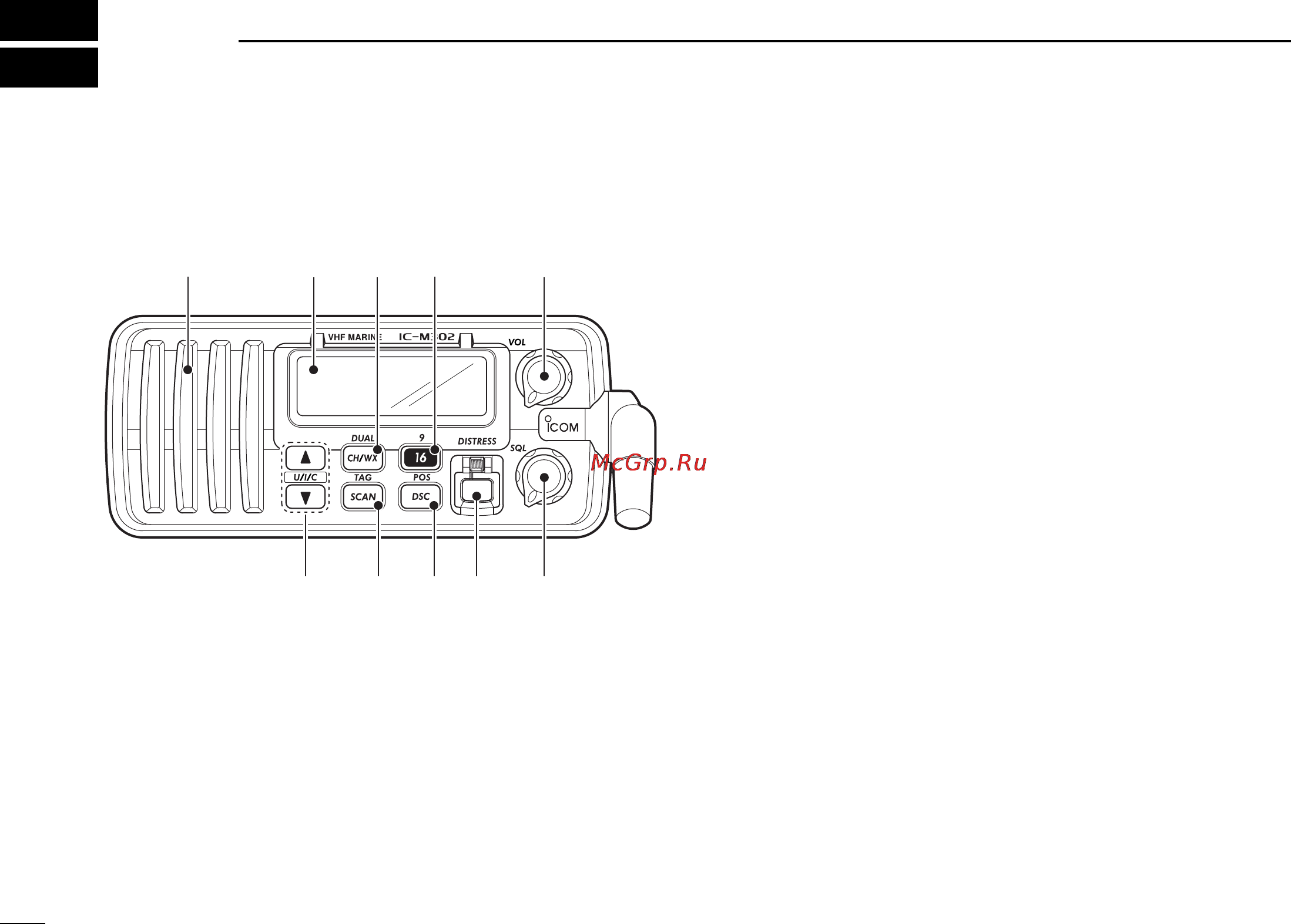

■ Front panel
q CHANNEL/WEATHER CHANNEL KEY [CH/WX•DUAL]
➥ Toggles between regular channels and weather chan-
nel when pushed momentarily. (p. 7)
➥ Starts Dualwatch or Tri-watch when pushed for 1 sec.
(p. 11)
➥ Stops Dualwatch or Tri-watch when either is activated.
w CHANNEL 16/CALL CHANNEL KEY [16•
9]
➥ Selects Channel 16 when pushed. (p. 6)
➥ Selects call channel when pushed for 1 sec. (p. 6)
•“CALL” appears when call channel is selected.
➥ Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (p. 9)
➥ While pushing [CH/WX
•DUAL], push to enter the chan-
nel comment programming condition. (p. 10)
➥ Enters Set mode when pushed while turning power ON.
(p. 28)
e POWER/VOLUME CONTROL [VOL]
Turns power ON and OFF and adjusts the audio level. (p. 8)
r SQUELCH CONTROL [SQL]
Sets the squelch threshold level. (p. 8)
t DISTRESS KEY [DISTRESS]
Transmits Distress call when pushed for 5 sec. (p. 17)
y DSC/POSITION KEY [DSC•
POS]
➥ Selects the DSC menu when pushed. (p. 14)
➥ Shows current position and time from a GPS receiver,
when pushed for 1 sec. (p. 16)
Speaker
Function
display
q
ew
riuyt
!IC-M302-1.qxd 03.10.27 9:06 AM Page 2 (1,1)
