7 | Application guidelines
Installer reference guide
46
EJHA04AAV3 + EHY2KOMB28+32AA
Daikin Altherma H Hybrid
4P531180-1B – 2020.02

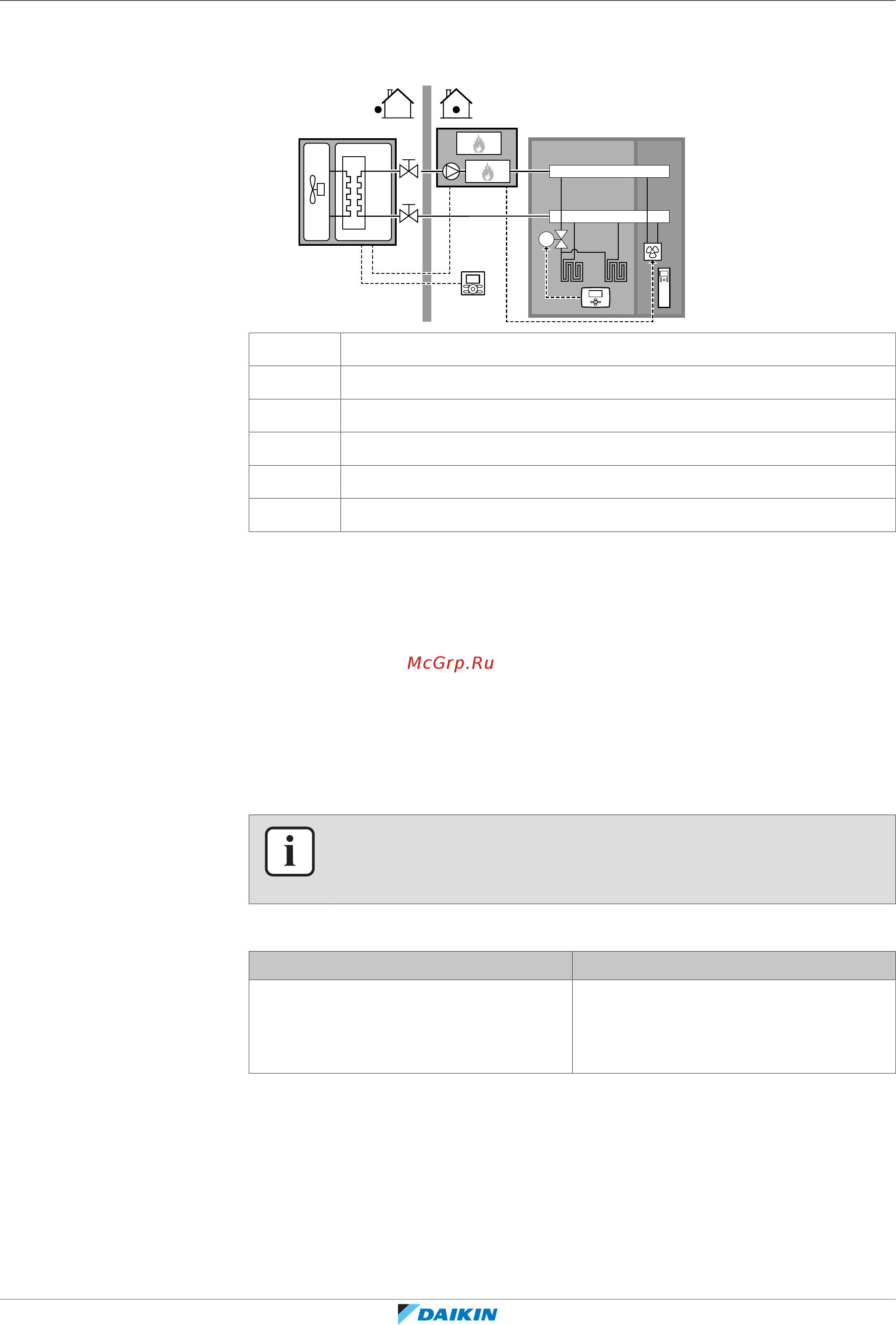

Combination: Underfloor heating + Heatpump convectors – Multiple rooms
Setup
c
B C
A
b
M1
a
A Main leaving water temperature zone
B Room 1
C Room 2
a User interface
b External room thermostat
c Remote controller of the heat pump convectors
▪ The outdoor unit is connected in series with the gas boiler.
▪ For each room with heat pump convectors: The heat pump convectors are
directly connected to the gas boiler.
▪ For each room with underfloor heating: A shut-off valve (field supply) is installed
before the underfloor heating. It prevents hot water supply when the room has
no heating demand.
▪ For each room with heat pump convectors: The desired room temperature is set
via the remote controller of the heat pump convectors.
▪ For each room with underfloor heating: The desired room temperature is set via
the external room thermostat (wired or wireless).
INFORMATION
To increase comfort and performance, we recommend to install the valve kit option
EKVKHPC on each heatpump convector.
Configuration
Setting Value
Unit temperature control:
▪ #: [A.2.1.7]
▪ Code: [C-07]
0 (LWT control): Unit operation is
decided based on the leaving water
temperature.

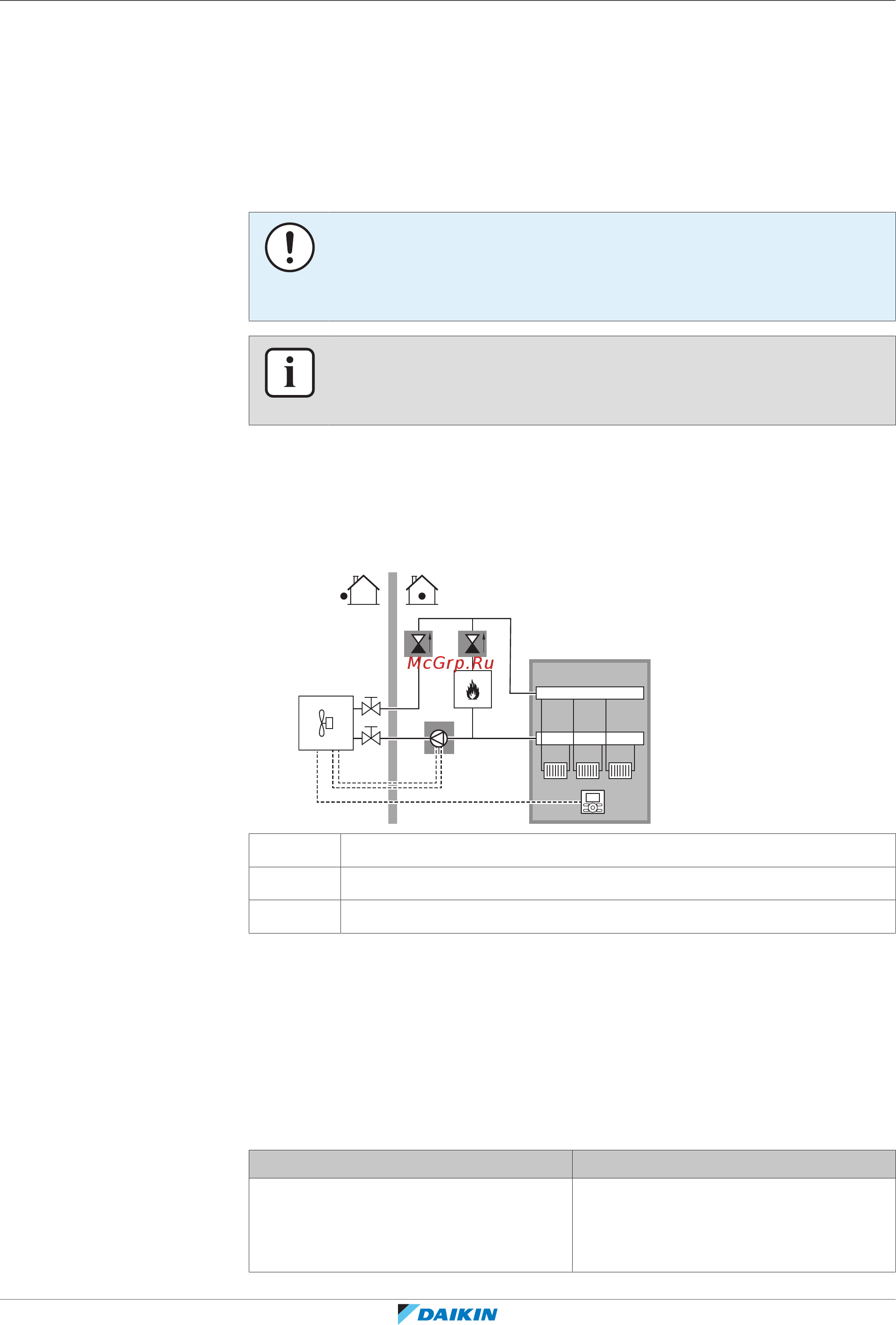

7.3 Setting up the space heating system – In case of third-party gas
boiler
The heat pump system supplies leaving water to heat emitters in one or more
rooms.
