Icom IC-R2 [10/40] Frequency and channel setting
![Icom IC-R2 [10/40] Frequency and channel setting](/views2/1074698/page10/bga.png)
6
3
FREQUENCY AND CHANNEL SETTING

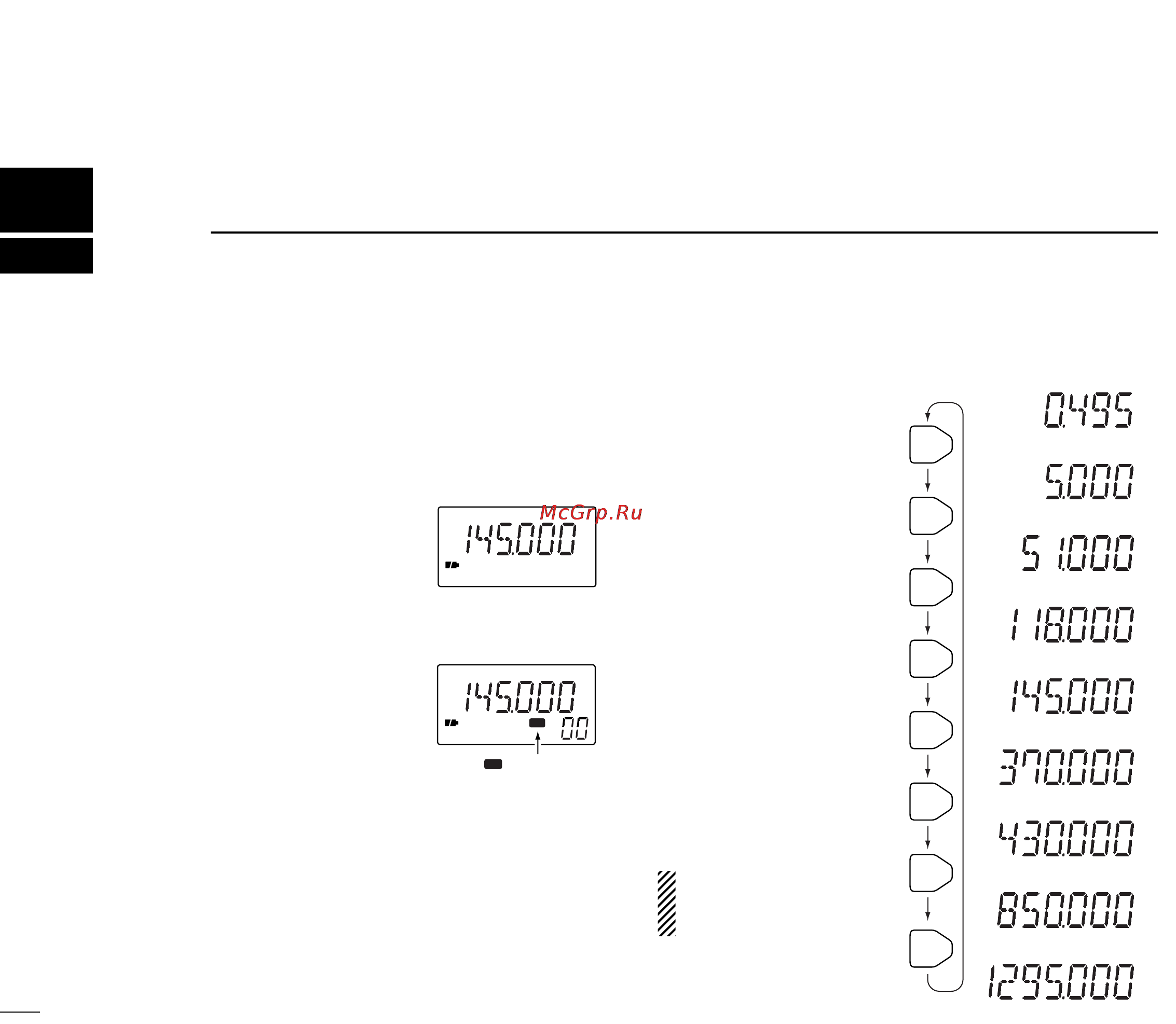

■ VFO and memory channels
This receiver has 2 normal operating modes:VFO mode and
memory mode.
VFO mode is used for setting a desired frequency within the
frequency coverage.
➥Push [V/M] to select VFO mode.
Memory mode is used for operation of memory channels
which have programmed frequencies.
➥Push [V/M] to select memory
mode.
•To program a memory, refer to p. 12.
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for receiving are generated and controlled by the
VFO.
■ Operating band selection
The receiver can receive
the broadcast band, HF
band, 50 MHz band, VHF
avionics band, 144 MHz
band, 300 MHz band, 400
MHz band, 800 MHz band*
or 1200 MHz band.
➥Push [BAND] several
times to select the de-
sired band.
•When a memory channel
is selected, the first push
of [BAND] selects VFO
mode (and transfers the
memory channel con-
tents).
➥Rotate [DIAL] while
pushing [BAND] to select
the desired band.
*Some frequencies can-
not be received with
the U.S.A.version.
FM
FM
MR
MR
“ ” appears.
FM
30–107.995 MHz
AM
108–135.995 MHz
1.625–29.995 MHz
0.495–1.620 MHz
FM
136–255.095 MHz
FM
255.1–382.095 MHz
FM
382.1–769.795 MHz
FM
769.8–960.095 MHz
FM
960.1–1309.995 MHz
AM
AM
BAND
BAND
BAND
BAND
BAND
BAND
BAND
BAND
