Icom IC-R2 [12/40] Frequency and channel setting
![Icom IC-R2 [12/40] Frequency and channel setting](/views2/1074698/page12/bgc.png)
8
3
FREQUENCY AND CHANNEL SETTING
■ Selecting a memory channel
q Push [V/M] to select memory
mode.
•“X” appears when a memory
channel is selected.
w Rotate [DIAL] to change the indi-
cated memory channel.
•Only programmed memory chan-
nels can be selected.
•Rotate [DIAL] while pushing [FUNC]
to change the memory bank.
■ Lock function
The lock function prevents accidental frequency changes and
accidental function access.
➥Push [FUNC] + [
(MODE)LOCK] to toggle the lock function
ON and OFF.
•[POWER], [VOL] and [SQL] can still
be accessed while the lock function
is ON (default).
•Accessible switches can be set to 1
of 4 groups in expanded set mode.
See p. 28 for details.
■ Attenuator function
The attenuator prevents a desired signal from distorting when
very strong signals are near the desired frequency or when
very strong electric fields, such as from a broadcasting sta-
tion, are near your location.
The attenuator has approx. 10 dB attenuation.
➥Push [FUNC] + [SQL] to toggle the attenuator function ON
and OFF.
FM
MR
SKIP
FM
MR
1
3
2

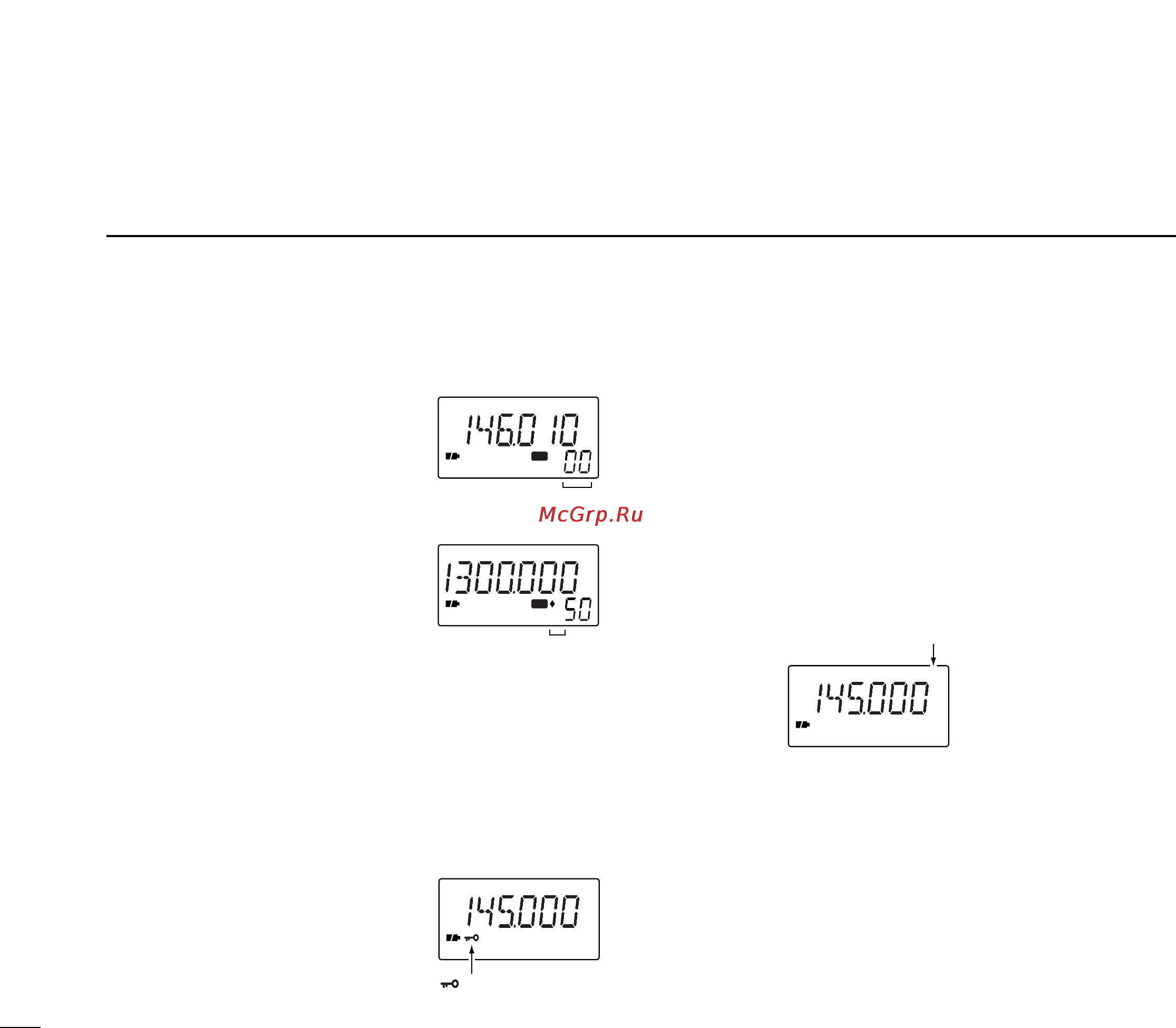

[DIAL] changes the
memory channel.
While pushing [FUNC],
[DIAL] changes the
memory bank.
FM ATT
Appears when the attenuator
function is in use.
FM
“ ” appears when the
lock function is in use.
