OTHER FUNCTIONS
■ Channel indication mode
Channel indication mode is used to simplify operation. In this
mode only pre-programmed memory channel numbers are
displayed and functions are limited ([POWER], [SQL], [VOL],
[LOCK], scanning and the tuning dial are functional).
q Select memory mode with [V/M].
w Push [V/M] for 2 sec. to enter expanded set mode.
e Rotate [DIAL] until “CH” appears.
•Turn the expanded set mode ON for selection. (p. 25)
r While pushing [FUNC], rotate [DIAL] to turn the channel
indication ON or OFF.
t Push [V/M] to exit set mode.
•To return to normal indication, turn this function OFF in
step r above.
•Frequencies must be programmed into memory channels
in advance.
■ Cloning function
The IC-R2 has receiver-to-receiver data cloning capability.
This function is useful when you want to copy all of the pro-
grammed contents from one IC-R2 to another. An optional
OPC-474
CLONING CABLE is required.
The optional CS-R2
CLONING SOFTWARE and the optional
OPC-478
CLONING CABLE are available to clone and edit
contents using a PC.
q While pushing [TS], [V/M] and [Y], push [POWER] for 1
sec. to enter cloning mode.
•“CLONE” appears.
w Connect an optional OPC-474 between both [SP] jacks.
e Push [SQL] on the “mas-
ter” receiver (receiver-to-
receiver cloning only).
•“CL OUT” appears and the
signal indicator shows that
cloning is taking place.

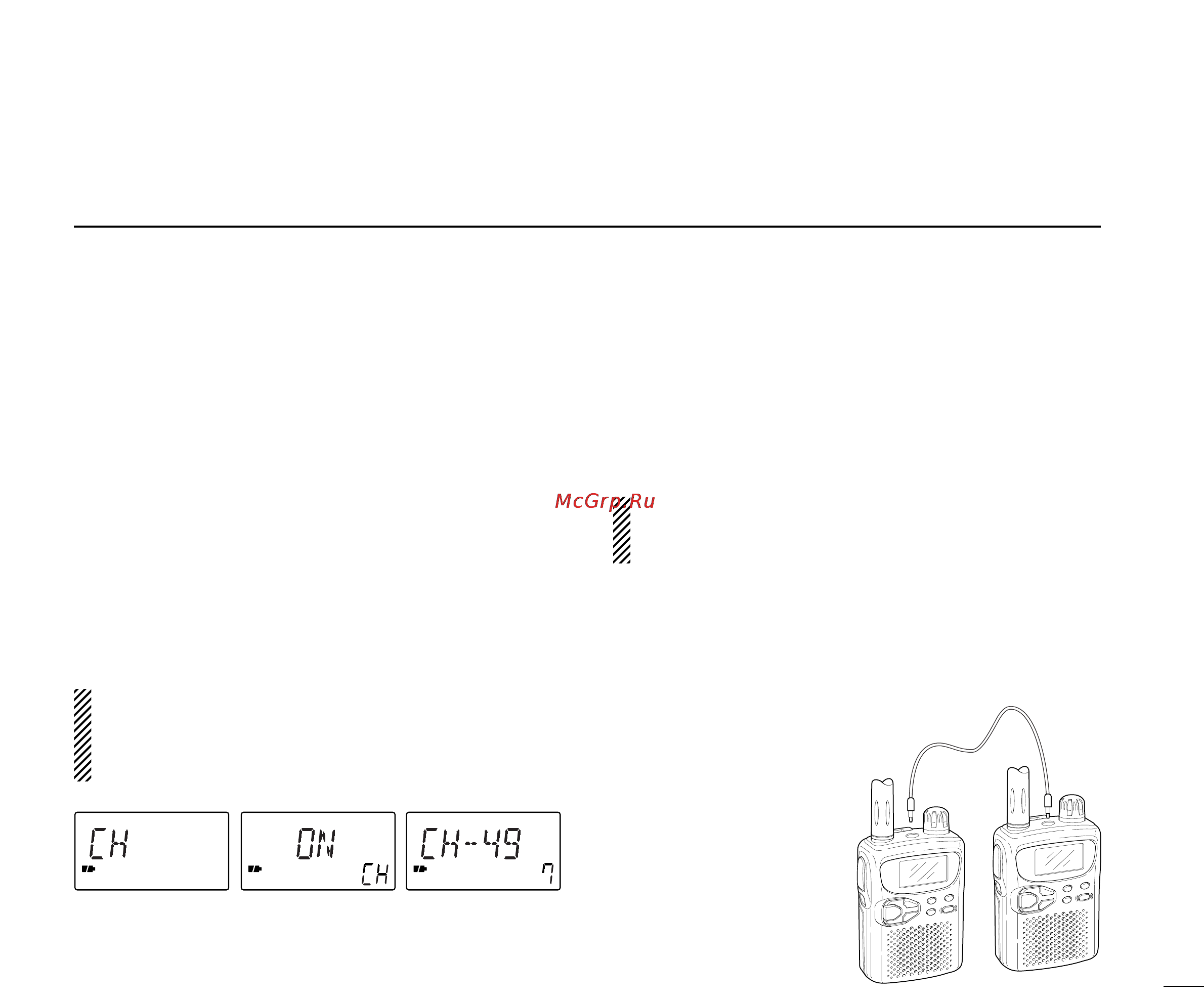

FM
Channel indication
mode set mode
Channel indication
mode ON
Channel indication
mode example
(Memory ch 49 of
memory bank 7)
OPC-474
