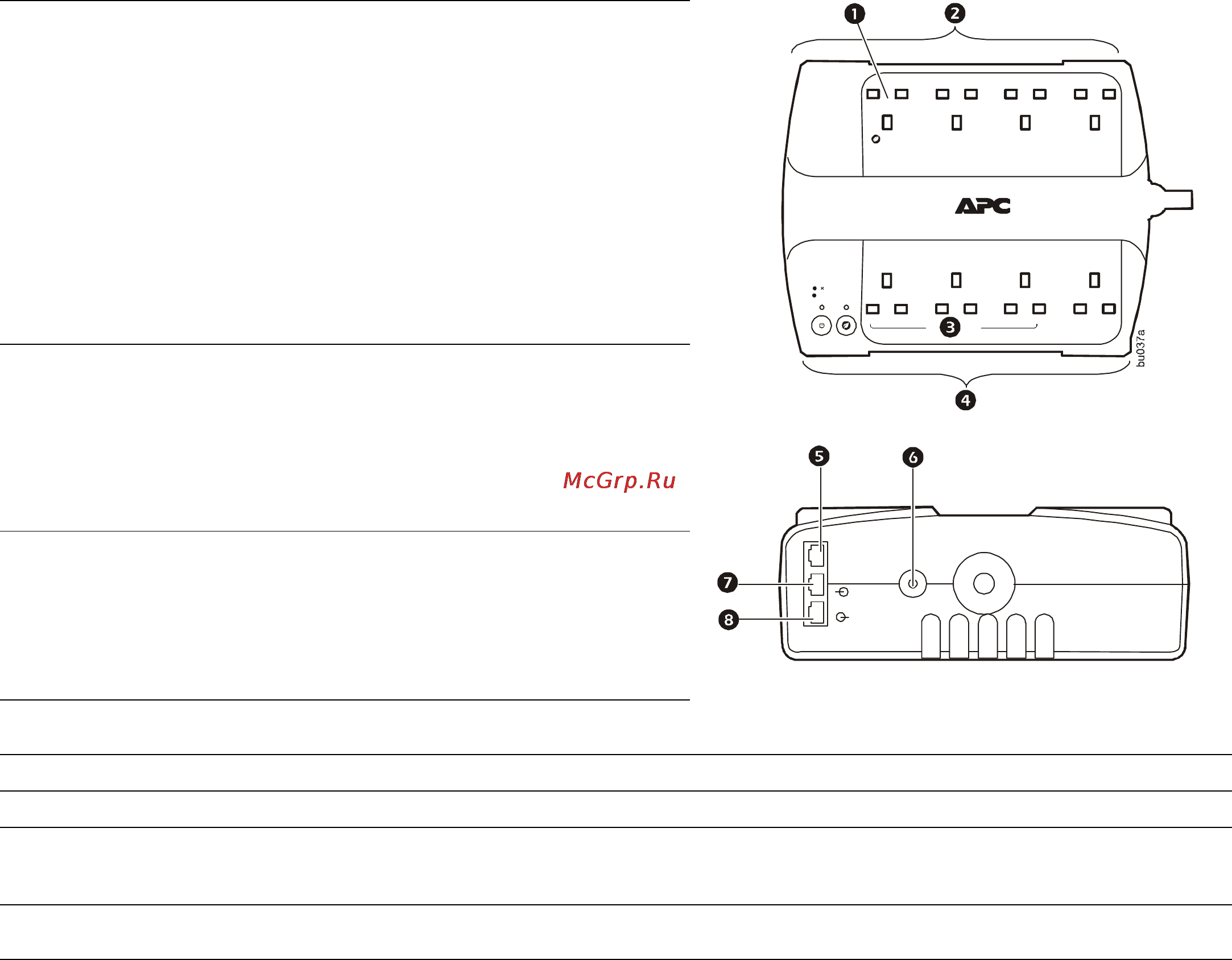

Back-UPS ES 550 & 7002
Connect the Equipment
USB and Serial
Data port
To use PowerChute software, connect a USB cable (not
supplied), to the USB and serial port.
Battery Backup
+ Surge
Protection
outlets
These outlets provide battery backup power to connected
equipment for a limited period of time during power outages
and voltage fluctuations.
The Battery Backup + Surge Protection outlets provide
battery power to connected equipment only when the Back-
UPS is turned on.
Connect critical equipment such as a computer, computer
monitor, modem or other data sensitive devices to these
outlets.
Do not connect aquarium equipment, laser printers, paper
shredders, sump pumps, or fans to these outlets as the
modified sine wave output of the Back-UPS may cause
these devices to experience a decrease in performance.
Do not connect surge protectors or extension cords to these
outlets.
Controlled
outlets
These outlets provide surge protection for connected
devices.
To conserve energy the Controlled by Master outlets will
disconnect from AC power whenever the device plugged
into the MASTER outlet is turned off or goes into Standby
or Hibernation mode.
Connect a printer, scanner or other noncritical devices that
do not require battery backup protection.
Surge
Protection
outlets
These outlets provide full-time protection for connected
equipment from power surges when the Back-UPS is turned
on or off.
The Surge Protection outlets do not provide battery backup
to connected equipment.
Connect a printer, scanner or other noncritical devices that
do not require battery backup protection.
AC Power
Input
Use the supplied power cable to connect the unit to AC power.
Data Port
Use the supplied RJ45/USB cable to connect the Back-UPS unit to a computer to install the software.
Circuit breaker
Use to reset the system after an overload condition has occurred causing the circuit breaker to trip.
Master outlet
Connect the master device to this outlet, in most cases, this will be the main computer.
In addition to providing battery backup power and surge protection, this outlet will signal the Controlled by Master outlets to
disconnect from AC power when the master device is either turned off or goes into Standby or Hibernation mode.
DSL/Modem/
FAX/Phone
Use an Ethernet cable to connect a modem to the I
N port, and a computer to the OUT port.
Wall Outlet
Connect the unit to a data line wall outlet
UK
bu0
52a
