• If possible, disconnect and move freestanding or slide-in
range from cabinet opening to provide easier access to rear
wall/ceiling. Otherwise put a thick, protective covering over
countertop, cooktop or range to protect from damage and
debris. Select a flat surface for assembling the unit. Cover
that surface with a protective covering and place all canopy
hood parts and hardware in it.
• In addition check whether near the installation area of the
hood (in the area accessible also with the hood mounted) an
electric socket is available and it is possible to connect a
fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of
an electric socket and/or a hole for the passage of the
discharge tube).
Expansion wall plugs are provided to secure the hood to most
types of walls/ceilings. However, a qualified technician must verify
suitability of the materials in accordance with the type of
wall/ceiling. The wall/ceiling must be strong enough to take the
weight of the hood. Do not tile, grout or silicone this appliance
to the wall. Surface mounting only.
In the case of the presence of panels and/or walls and/or lateral
wall units check that there is sufficient space to install the hood and
that access to the command panel is easy.
Operation
Use the high suction speed in cases of concentrated kitchen
vapours. It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

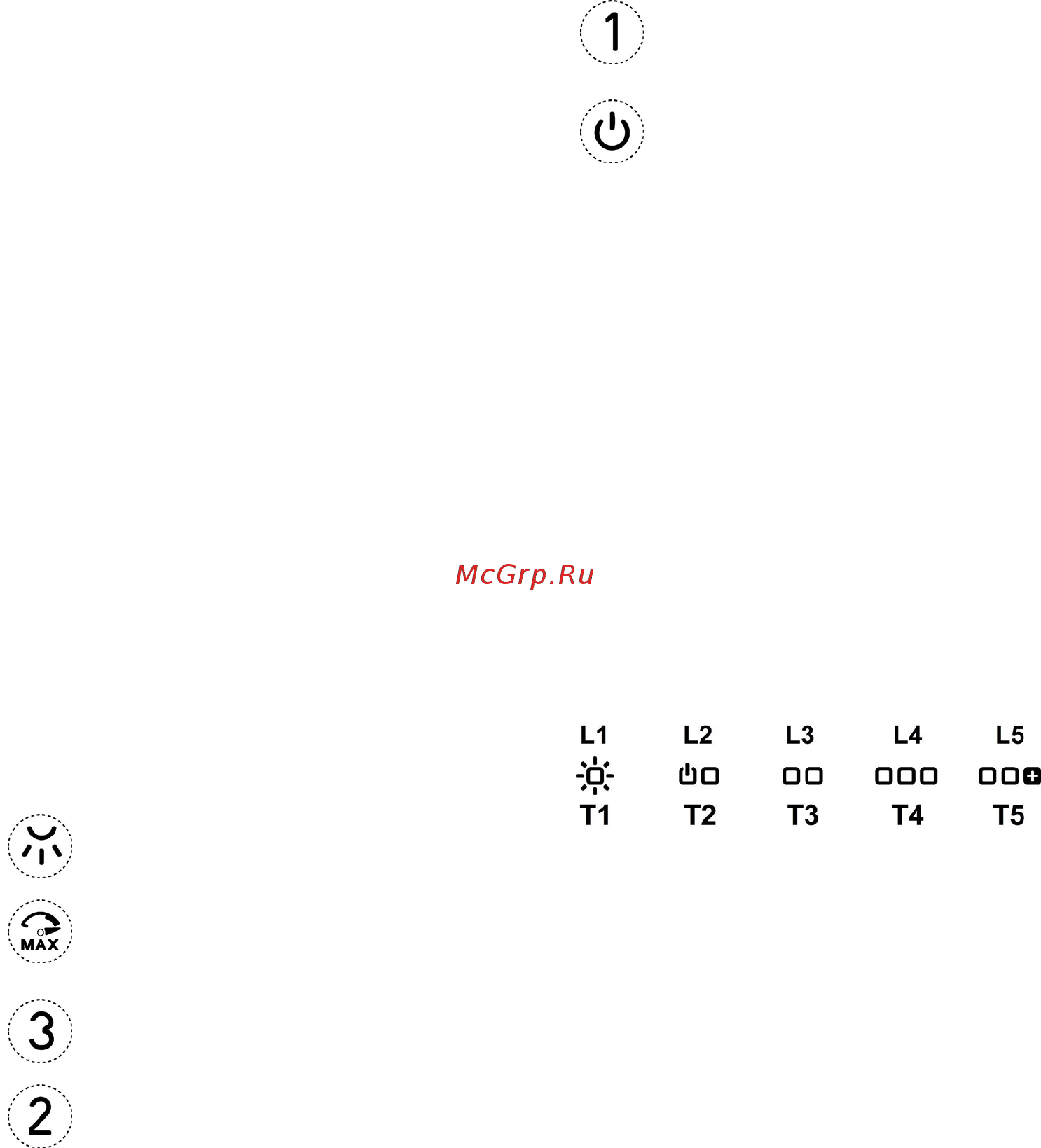

Model with touch panel
To select the functions of the hood just touch the commands.
Light key ON/OFF
Intensive speed selection key (suction
power) - duration 5 minutes - press again to
return to previous setting.
High-speed selection key (suction power).
Medium-speed selection key (suction power)
- when flashing it indicates the need to wash or
replace the carbon filter. This signal is normally
deactivated. To activate the alarm, disable the
electronic by pressing the 0 button for 3
seconds.
Next, simultaneously press buttons 1 and 2 for
3 seconds; at first, only button 1 will flash, then
both buttons 1 and 2 will flash to indicate
activation. Repeat the procedure to deactivate
the alarm; at first buttons 1 and 2 will flash and
subsequently only button 1 to indicate
deactivation.
Low-speed selection key (suction power) –
when flashing it indicates the need to wash the
fats filter.
Motor key OFF (stand by) – excludes the
electronics – reset wash/replace filters signals.
MOTOR OFF
Press briefly to switch the motor off.
RESET FILTERS SIGNALS
In functioning mode, after carrying out filter
maintenance, press the key until hearing the
sound signal. The flashing LED 1 (grease filter)
or 2 (carbon filter) stops flashing.
EXCLUDING THE ELECTRONICS
Press the key for 3 seconds. The hood
command electronics will be excluded.
This function can be useful during the product
cleaning operations.
Just repeat the operation to reinsert the
electronics.
If the hood fails to operate correctly, briefly disconnect it from
the mains power supply for almost 5 sec. by pulling out the
plug. Then plug it in again and try once more before
contacting the Technical Assistance Service.
Model with 5 push-buttons control panel
T1. Button ON/OFF lights (Led L1 lit)
T2. Button OFF – Selection button suction speed (power) 1
(Led L2 lit)
T3. Selection button suction speed (power) 2 (Led L2+L3 lit)
T4. Selection button suction speed (power) 3 (Led L2+L3+L4
liti)
T5. Selection button intensive suction speed (power) (Led
L2+L3+L4 lit + Led L5 flashing) - duration 5 minutes – after
which the hood automatically sets suction speed (power) 2.
Delayed switch-off of the hood (flashing LEDs):
It is possible to set the delayed hood switch-off by pressing again
for more than 2 seconds the button of the suction speed (power)
active at that time.
The available delayed switch-off options are:
Suction speed (power) 1: 20 minutes
Suction speed (power) 2: 15 minutes
Suction speed (power) 3: 10 minutes
Intensive suction speed (power): 5 minutes
