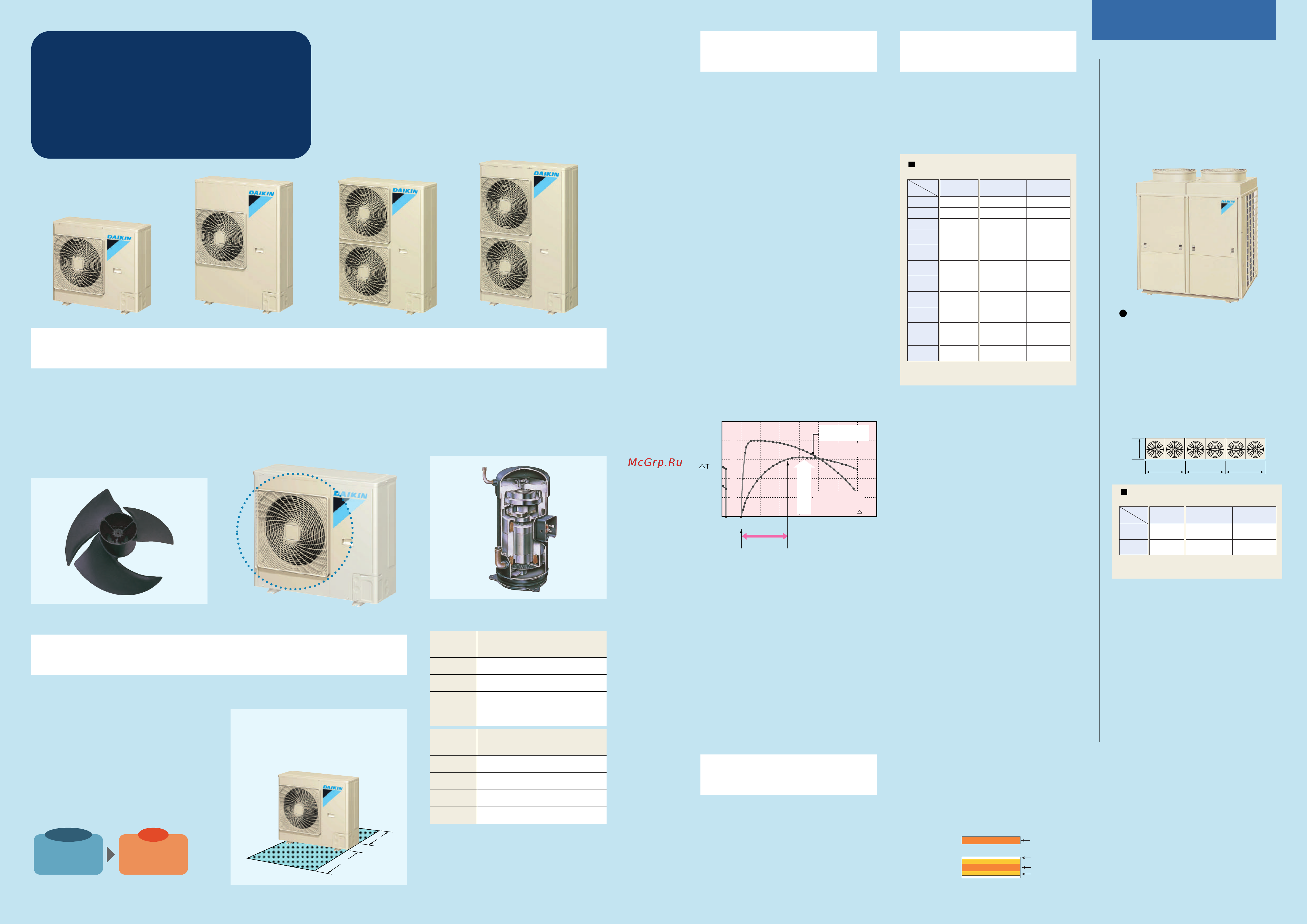

Fully shaped aerodynamic propellers
are designed to push air with a large
wing surface, providing both high
blow volume and quiet operation with
turbulence.
Fitted with wide inlet fan
(Applies to R(Y)71LU–140LU)
Compactly designed outdoor unit
with interior layout optimised for the
smooth airflow.
The design curved Super Aero
Grille restricts the spread of
exhaust gas and fits in the same
space as conventional outdoor
units.
Slim and low-profile design outdoor units
(Applies to R(Y)71LU–140LU)
The light weight makes delivery and
installation easier.
Reduced weight
(Applies to R(Y)71LU-125LU)
To suppress turbulence and achieve
quiet operation, the curved ribs of the
grille are optimised to meet the
outflow of air.
Fitted with Super Aero Grille
(Applies to R(Y)71LU–140LU)
Smooth running, minimal vibration,
low operating sound.
Equipped with scroll compressor
for quiet operation
(Applies to R(Y)125LU and 140LU)
Operation sound
Wide inlet fan
(Applies to R(Y)71LU–140LU)
C o m pa c t
Compact unit provides
quiet operation.
Defrost control delivers powerful
heating in extremely cold climates
(Applies to RY71LU–140LU) (Heat pump only)
If refrigerant piping length does not
exceed 30 m, there is no need for on-
site gas charging.
(Applies to R(Y)71LU–140LU)
I n s t a lla tio n a nd m a in te na n c e
Pre charged for up to 30 metres
Heat pump
Outdoor unit
Sound level (cool/heating)
dB(A)
RY71LU
48/49
RY100LU
49/52
RY125LU
49/52
RY140LU
54/56
Max. point of
integral capacity
Difference between
indoor heat exchange
temperature and intake
air temperature ( T)
Integral heating
capacity
Defrost and hot start
Defrost begins
in this area
0
0
5
10
15
20
25
°C
10 20 30 40 50 60 70 80
Elapses operation time (min.)
Defrost operation complete
(heating operation restart)
Defrost monitoring start
(monitors to maximum point)
Integral heating capacity and temperature difference
(actual measurement when outdoor temperature is -1.5°C)
Cooling only
Outdoor unit
Sound level
R71LU
48
R100LU
49
R125LU
49
R140LU
54
OUTDOOR UNIT
Allowed refrigerant pipe length and
level difference
Max. length Max. level
difference
Pre charged
*1
25 m10 m
R25J
20 m10 m
RY35F
25 m10 m
R35J
30 m
RY71LU
R71LU
30 m
RY100LU
R100LU
50 m
(Equivalent length 70 m)
50 m
(Equivalent length 70 m)
10 m
RY50GA
R50G
30 m
5 m
RY60GA
R60G
30 m
50 m
(Equivalent length 70 m)
50 m
(Equivalent length 70 m)
30 m
RY125LU
R125LU
30 m
RY140LU
R140LU
RG71A
RA140A
RG180A
Note:
1
Additional refrigerant charging is required if the
refrigerant pipe is longer than the length.
P o w e r ful
Uses "Receiver"
to enhance refrigerant control
(Applies to R(Y)71LU–140LU)
Instead of the using an accumulator to ab-
sorb excess refrigerant, Daikin outdoor
units have a receiver in the piping located
away from the compressor. By preventing
the return of liquid to the compressor, the
receiver enhances reliability.
Cooling is efficient even in winter when
indoor temperatures are higher than those
outside, such as in underground public spaces
or offices with many computers.
Suited for year-round cooling
applications
RY200KU and250KU can adapt up to 0°C.
Also adapts to year-round cooling
A pump-down switch is provided to
make it easier to collect refrigerant if
the unit is to be moved or layout
modified.
4-direction piping offers
greater layout freedom
(Applies to R(Y)71LU–140LU)
Facilitates pump down
(Refrigerant recovery function)
Effective gas monitoring reduces the
labor required for operation,
maintenance, and repairs.
Piping can be run from the front,
bottom, right or rear surface
according to how the unit is installed.
Low gas level detection function
(Applies to R(Y)71LU–140LU)
•
Heat pump/RY71–140LU: possible up to -5°C
•
Cooling only/R71–140LU: possible up to -15°C
•
The year-round cooling kit is required as option.
OUTDOOR UNIT
(Applies to all outdoor units)
To achieve increased durability by
improved resistance to salt corrosion
and atmospheric pollution, coated PE
fins (with special acryl pretreatment)
are used for the heat exchanger of the
outdoor unit.
Dur a bilit y
Heat exchange fins provided with anti-corrosion treatment
Construction
Non-treated fin
PE fin
Aluminium
Aluminium
C orrosion res is tant
ac rylic res in
Hydrophilic film
Common width and depth make
series installation easy.
200 and 250 class models can
be combined for centralised,
horizontal-series installation
R(Y)250KU
1280 mm
R(Y)200KU
1280 mm
R(Y)200KU
1280 mm
690 mm
Max. length Max. level
difference
Pre charged
*1
50 m
(Equivalent length 70 m)
30 m
50 m
(Equivalent length 70 m)
30 m
5 m
R(Y)200KU
5 m
R(Y)250KU
Piping can be drawn out from three
directions - front, left side, or below.
33 34
Flexible design
for large room
or multi-use
Q u ie t O pe r a t io n
(Heat pump only)
R(Y)71LU R(Y)100LU R(Y)125LU R(Y)140LU
５００
５０
(mm)
conventional
108
kg
RY100KUV1
New
89 kg
RY100LUV1
Note:
1
Additional refrigerant charging is required if the
refrigerant pipe is longer than the length.
Allowed refrigerant pipe length and
level difference
To optimise heating performance, by
monitoring the difference in air temperature
in the indoor/outdoor heat exchanger and
the intake air temperature, the system
accurately adjusts to provide the best
operating parameters.
This enables defrost mode to be initiated
and so minimise indoor declines in
temperature caused by frost. For example, if
the outdoor airtemperature falls to -1.5°C,
the integrated heating capacity is raised
about 20%.
RU08/10KU models are factory
shipped with refrigerant charged for
5 m of piping.
RU08/10K models are factory
shipped with no refrigerant charged.
RU08/10K models are available
in two type depending on
installation conditions
15 m
15 m
15 m
30 m
30 m
15 m
15 m
30 m
30 m
50 m
(Equivalent length 70 m)
5 m
R100FU
R125FU
30 m
50 m
(Equivalent length 70 m)
5 m 30 m
Note : Anechoic chamber c onversion value,
meas ured ac c ording to J IS parameters and
