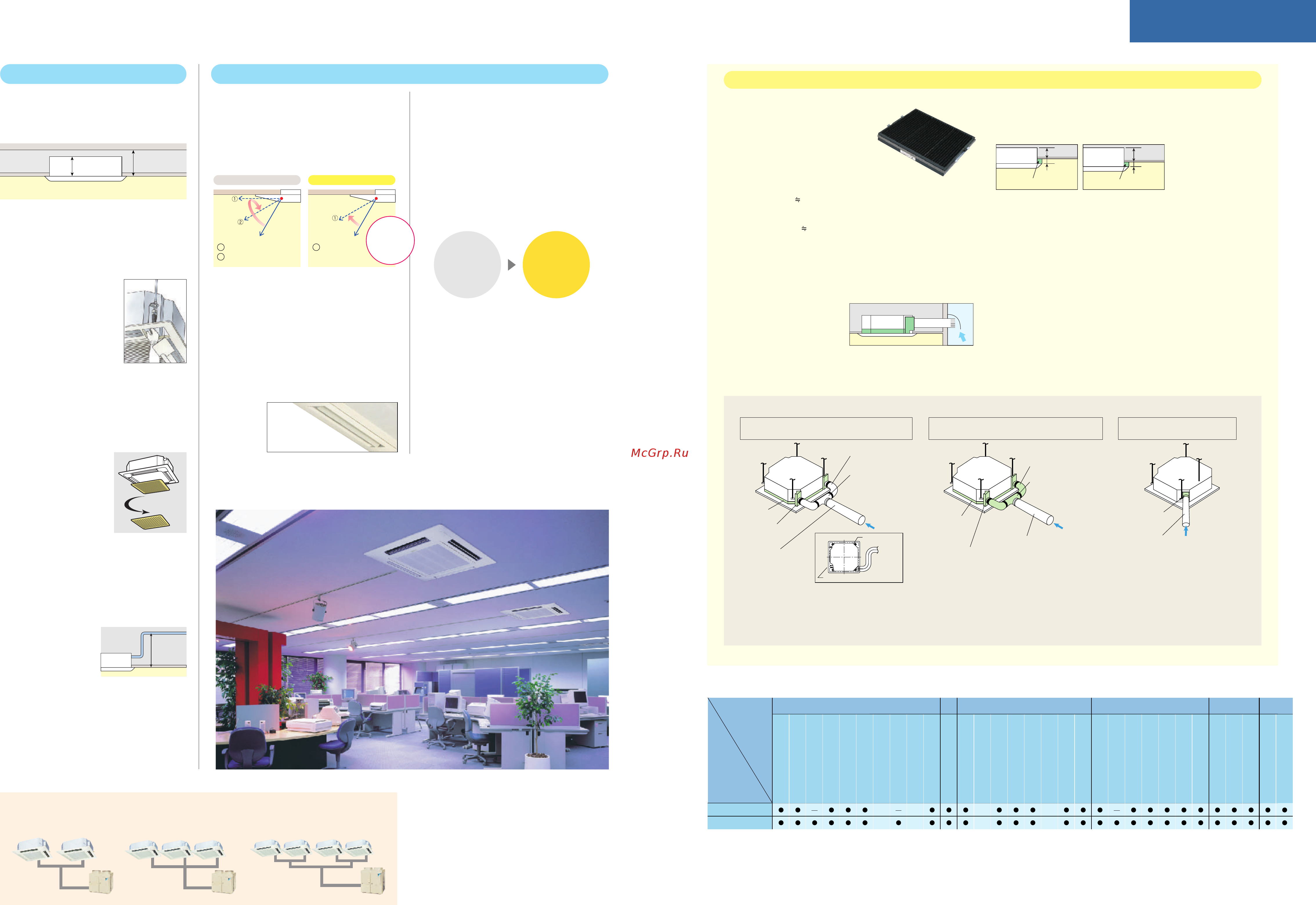

Quick and easy to install Easier to maintain
Stepping motor controls flaps
to prevent soiled ceilings
Dust can be kept from blowing onto
ceilings by directly setting flaps by
hand or by remote control.
Less cleaning work
thanks to "Non-dew Flaps"
with non-flocking
The use of non-flocking flaps mini-
mises adnerring dart, so less cleaning
work is needed.
Heat exchanger cleaning
required only once every 3 years
Self-diagnosis function
Low gas pressure detection
The new long-life filter is 20% more
efficient than the previous one. This has
enabled further reductions in running
costs by extending the heat-exchanger
cleaning interval by once every two
years to once every three years.
Insufficient gas charging is normally
hard to detect. During post-installation
trials and regular inspection procedures,
the refrigerant level is monitored by
microprocessor to maintain proper gas
pressure.
Note: If the wireles s remote c on-
trol option is installed, a
light rec eptor unit is hous ed
in one of the adjuster pock-
Easy height adjustment
All models suspended
without lift
The high-performance filter and other
options are easily clipped into place.
There is no need for a screwdriver.
Since the orientation
of the intake grill can
be adjusted after in-
stalling, the direction
of the intake grill
lines can be unified
when multiple units
are installed.
Drain pump is equipped
as standard accessory with
750
mm
lift.
Easy installation for options
Installable in any direction
CEILING MOUNTED CASSETTE TYPE
240 mm *
1
245 mm *
2
750 mm
Conventional
1 Move to 0°
2 Move to desired angle
Super Cassette
Options required for specific operating environments
U lt ra lo n g -l i fe fil t e r
H ig h-e ffic i e n c y filt e r
Available in two types: 65% and 90% colorimetry.
F r e s h a ir int a k e k it
Using this kit, a duct can be
fitted to increase the intake of
outdoor air.
P a ne l s pa c e r
Use when only minimal space is available between drop ceilings
and ceiling slabs.
S e a ling m e m be r fo r a ir dis c h a r ge o u t l e t
Sealing members block air discharge openings not used in 2-way
or 3-way blow.
B r a nc h du c t c h a m be r
This chamber lets you connect a round flexible duct to the air
discharge opening at any time after the original installation.
Outside
258 mm
For 35K–71K indoor units For 100K–140K indoor units
Panel spacer
40 mm
Panel spacer
40 mm
200 mm
*
1
298 mm high with 100K – 140K
*
2
303 mm high with 100K – 140K
2 years 3 years
Conventional
Super Cassette
Heat-exchanger cleaning interval
Direct installation type
Kit name: KDDJ55X160
Duct flange
(with insulation
material)
Intake duct
(procured locally)
Flexible duct
T-joint pipe
Intake duct
(procured locally)
(duct length: 4 m max.)
Connection
chamber
Suction
chamber
Chamber type (with T-joint pipe and without fan)
Kit name: KDDP55D160K
Just 240
mm
high.
Installable in tight ceiling
spaces (35K–71K)
Each corner of the unit has an Adjust-
er Pocket that lets you
easily adjust the unit's
suspended height.
1 Move flaps
directly to
desired angle
Even in smoky environments where
the air conditioning is on most of the
time, the ultra long-life filter only
has to be changed once a year.
Note: S ome c eiling con-
structions may hin-
der ins tallation.
C ontac t your Dai-
kin Dealer before
installing your unit.
13 14
Twin Multi Operation Triple Multi Operation DoubleTwin Multi Operation
See pages 31–32 for details of the Multi Series.
Supports simultaneous running of the twin,
triple, and double twin multi operation.
Notes: Requires an ins pection port for mainte-
nance ac cess.
For dual intake duct installation only. If on-
ly a single intake duc t can be c onnected
bec ause of an obs truction, etc.,
K DDP55D160 should be used instead.
It is not possible to use this kit s imultane-
ously with the wireles s remote controller.
Heat pump
*1 *3 *4 *4
Cooling only
*1 *2 *4 *4
Mould
prevention
Feature
Features (Features are explained on P. 37–38.)
*
1
Applicable when wired remote c ontroller is used
*
2
Applicable to R71LU– R 140LU outdoor units (for temp. down to – 15°C ) (An option is required.)
*
3
Applicable to RY71LU– R Y140LU outdoor units (for temp. down to – 5°C) and R Y200LU– RY250LU outdoor units (for temp. down to – 0°C)
*
4
Applicable to R(Y)71LU– 140LU outdoor units
Model
Comfort Work & Servicing Control features OthersOption
S wing pattern selection
Draft prevention function
S witc hable fan speed
Auto swing
Programme "Dry"
High c eiling applic ation
Hot s tart
Year-round c ooling
applicable
Timer selector
Drain pump mechanism
Pre c harged for
up to 30 m
Long-life filter
Mould resistant treatment
for filter
Filter s ign
C eiling s oiling prevention
Low gas press ure
detec tion
E mergency operation
S elf-diagnosis function
Ultra long-life filter
High-efficiency filter
Fresh air intake kit
C ontrol by 2 remote
controllers
Auto-cooling/heating
change-over
Auto-res tart
C ontrol by 1 remote
controller
E xternal command
control
C entral remote control
Interlock c ontrol
PE fin
Two s electable
temperature-sensors
Twin / triple / double twin
multi operation
30
%
—40
%
less ceiling
dirt than
before
Smoky atmosphere: annual filter change
Ordinary store or office: filter change every 4 years
*For dust concentration of 0.3 mg/m
3
(Requires separately sold Air Cleaner.)
1 year (Approx. 5,000 hr) 15 hr/day x 28 day/month x 12 month/year
*For dust concentration of 0.15 mg/m
3
4 years (Approx. 10,000 hr) 8 hr/day x 25 day/month x 4 years
Flexible duct
(procured locally)
T-joint pipe
(procured locally)
Intake duct
(procured locally)
(duct length: 4 m max.)
Connection
chamber
Suction
chamber
Figure 1)
Notes: Requires an ins pection port for maintenance
acc es s.
If intake duc ts c annot be c onnected to both
connec tion c hambers due, for example, to an
obstruction, single intake duct installation is
possible.
Figure 1 shows what the installation will look like
Signal receiver
unit
Refrigerant piping
Note: Use of options will inc rease operating sound.
Chamber type (without T-joint pipe and fan)
Kit name: KDDP55D160
The units can be installed in the following different ways.
*Connecting ducts, insect nets, fire dampers , air filters, and other
parts s hould, as required, be proc ured loc ally.
**O uts ide Air fan interlocked with air conditioning unit is neces sary.
Optional PC B (KR P1C 63)is required for interloc king.
***It is recommended that the volume of outdoor air introduced through
the kit is limited to 10% of the maximum airflow rate of the indoor
unit. Introducing higher quantities will increase the operating noise
and may also influence temperature s ending.
Note:
