SiBE04-401 Indoor Unit
Removal Procedure 139
3

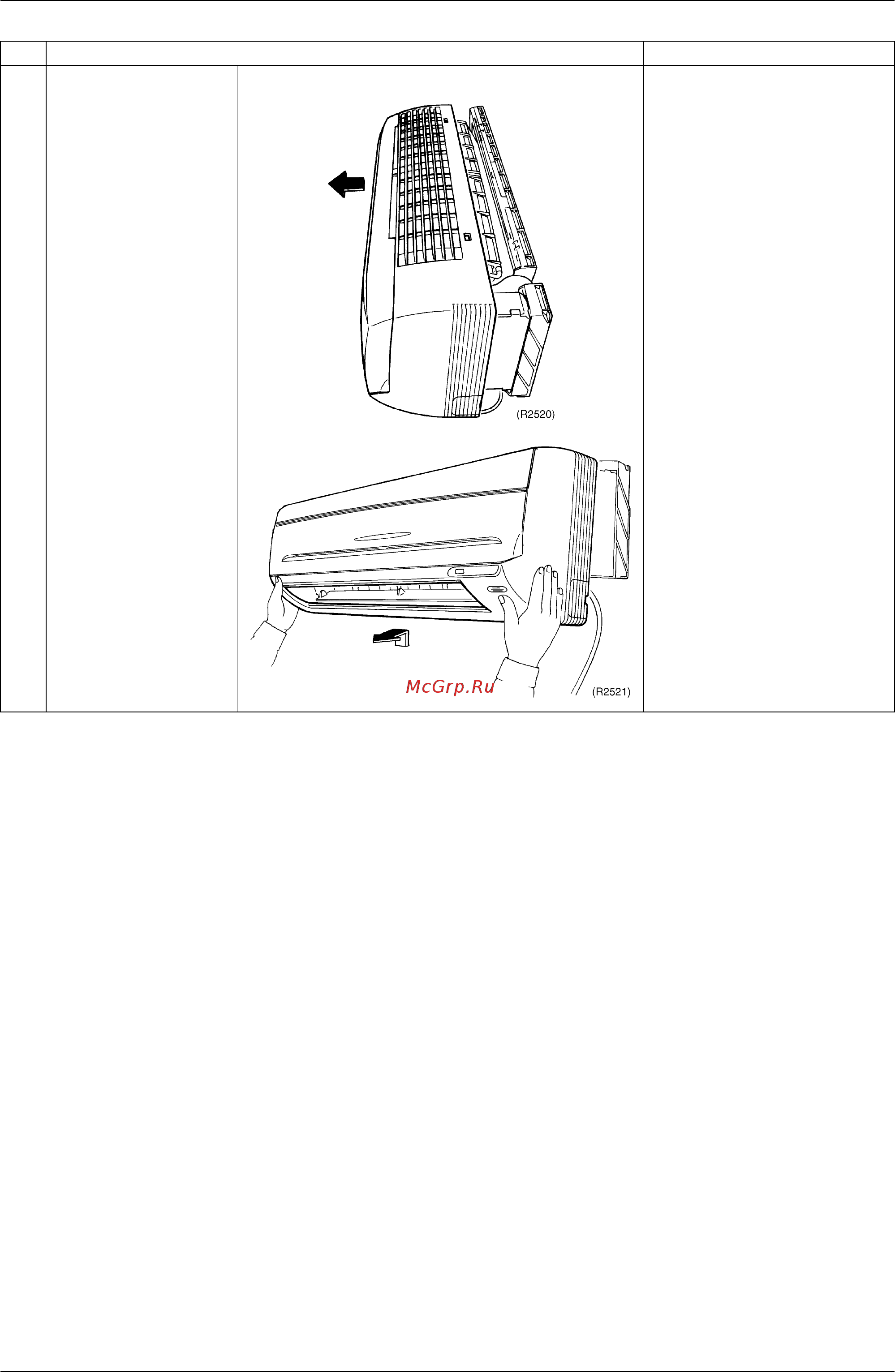

The front grille can be
removed in a manner to
pull out the upper part
forward and lift up the
lower part.
When restoring the grille,
Make sure whether each
hook is set as it was.
Step Procedure Points
