Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C SiBE04-401
192 Removal Procedure

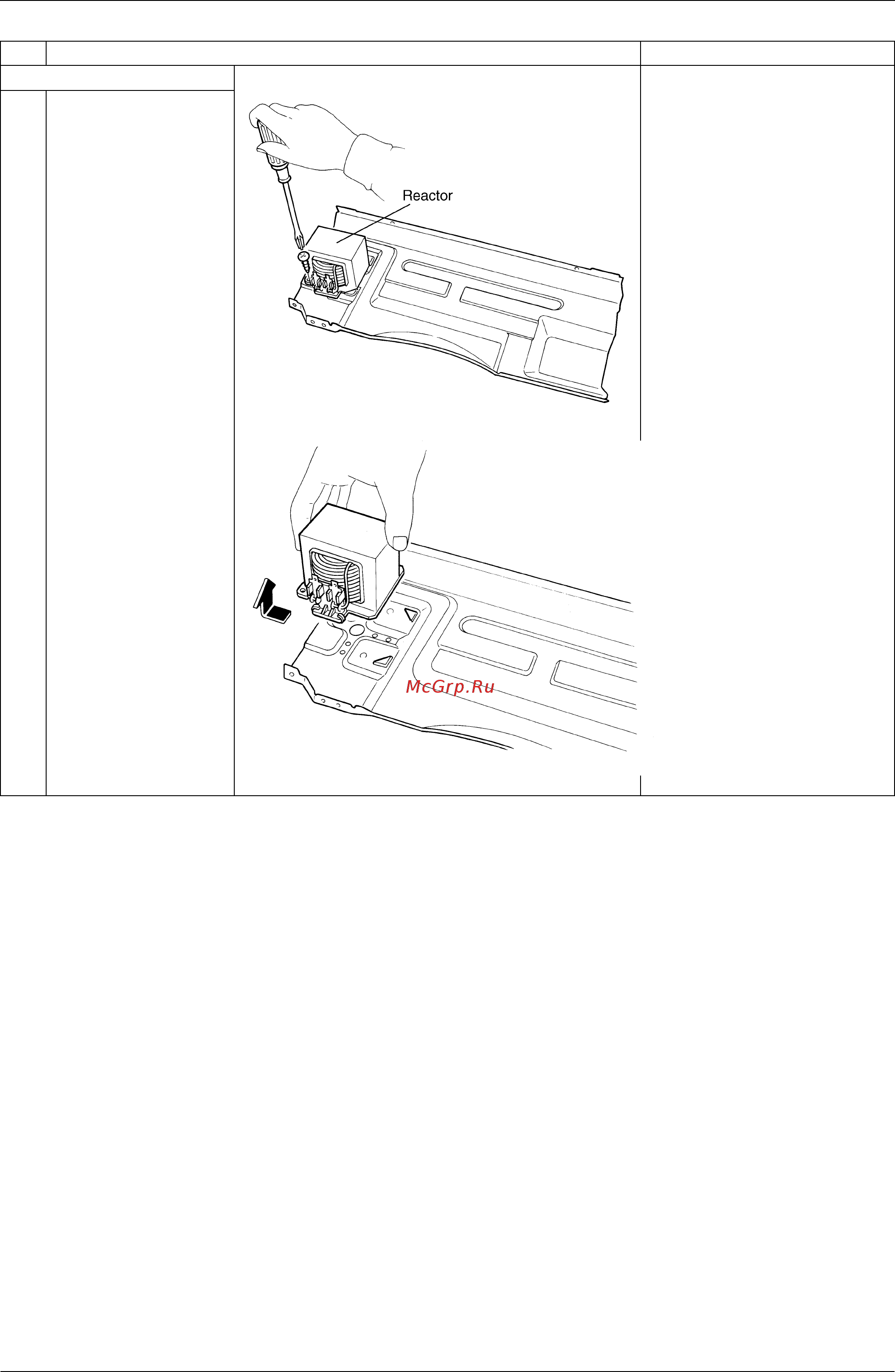

3. Remove the reactor.
1
The reactor can be
released by removing
the screw.
Step Procedure Points
(R4060)
(R4061)
