SiBE04-401 Indoor Unit
Removal Procedure 153
2

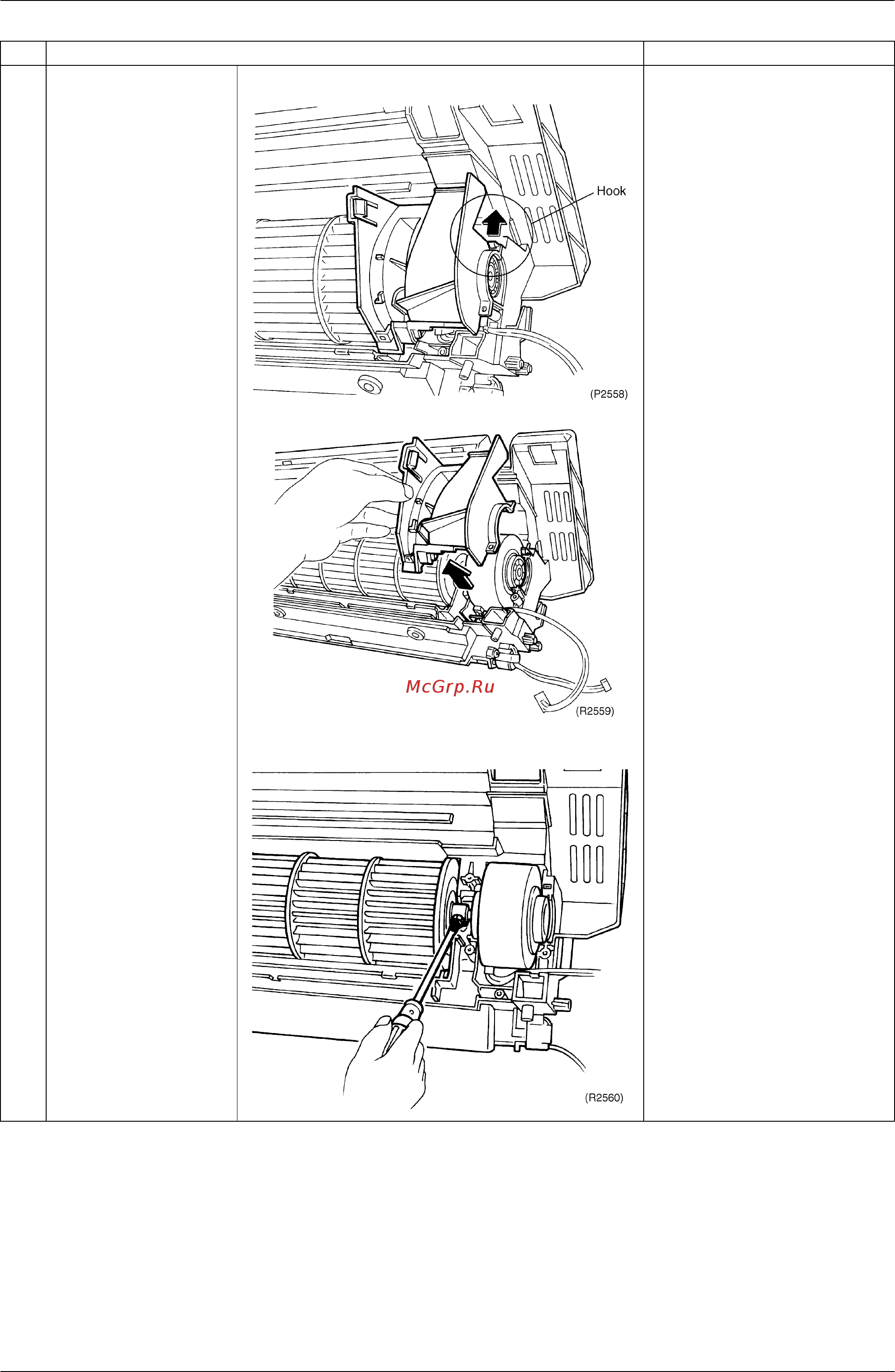

Disengage hook.
3
Loosen the hexagon
head set screw on the
fan rotor.
