![Asus ROG STRIX B550-E GAMING [10/74] M _2 pcie 3 x4 sata](/img/pdf.png)
Asus ROG STRIX B550-E GAMING [10/74] M _2 pcie 3 x4 sata
![Asus ROG STRIX B550-E GAMING [10/74] M _2 pcie 3 x4 sata](/views2/1769525/page10/bga.png)
x

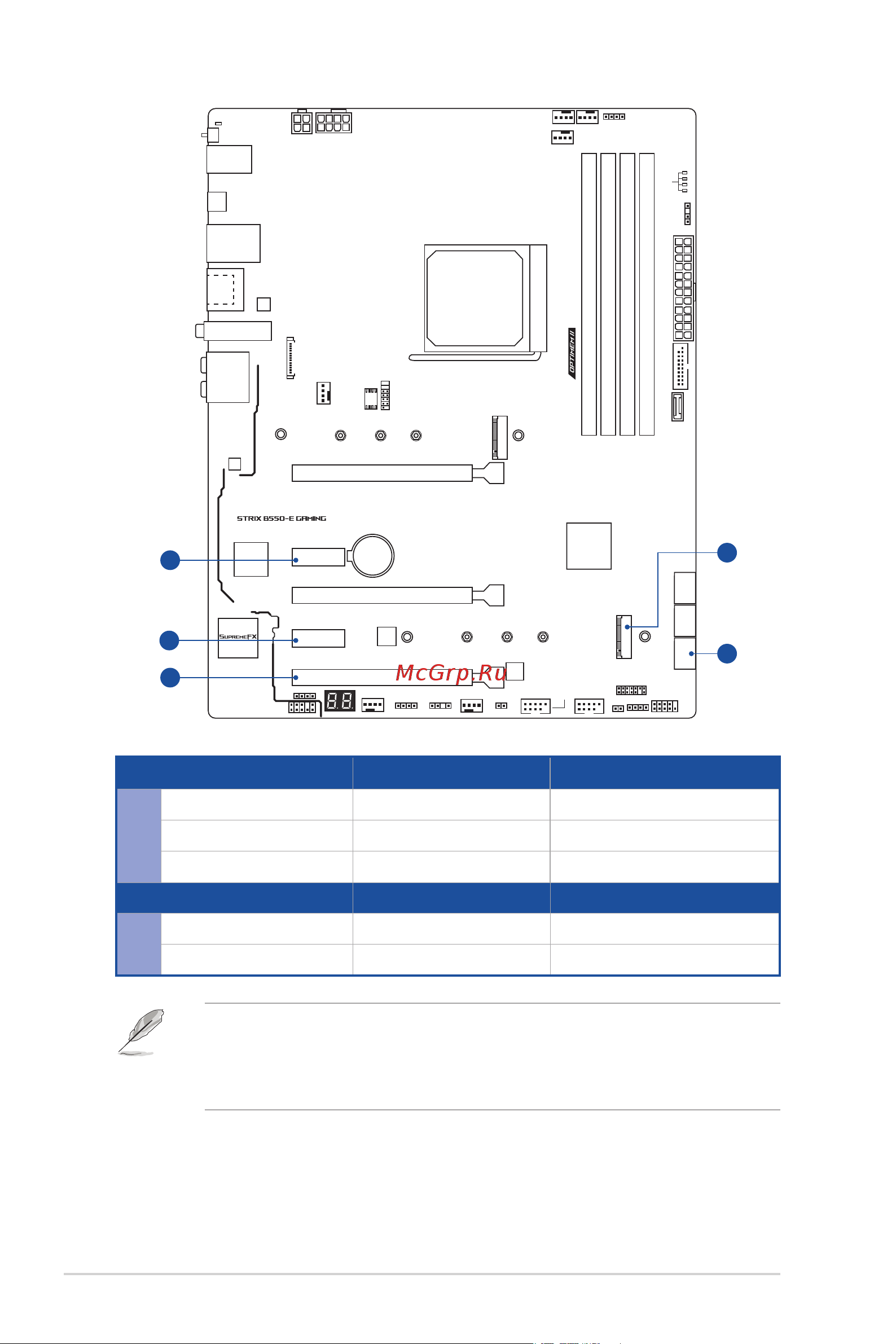

Connectors with shared bandwidth
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2* (64bit, 288-pin module)
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2* (64bit, 288-pin module)
AIO_PUMP
CHA_FAN2
Q_CODE
CHA_FAN1
CHA_FAN3
LED1_CON
CPU_FAN
CPU_OPT
M.2_1(SOCKET3)
RGB_HEADER2
RGB_HEADER1
ADD GEN 2_2
ADD GEN 2_1
F_PANEL
AAFP
SPDIF_OUT
CLRTC
SPEAKER
T_SENSOR
256Mb
BIOS
SATA6G_12SATA6G_34SATA6G_56
EATX12V_1EATX12V_2
EATXPWR
U32G1_12
USB3.2_7
Intel
®
I225-V
BATTERY
HDMI
_DP
M.2(WIFI)
Super
I/O
ALC
210
PCIEX1_1
PCIEX1_2
2280 2260 2242
M.2_2(SOCKET3)
2280
22110
22110
2260 2242
TPU
ARUR
PCIEX16_2
PCIEX16_3
PCIEX16_1
USB_E34
USB_E12
TB_HEADER
USB_E5-8
AUDIO
AUDIO_TYPE-C
LAN_U32G2_34
SOCKET AM4
FLBK_LED1
BIOS_FLBK
U32G2_C7
AMD
B550
B
B
BOOT
VGA
CPU
DRAM
A
A
A
Configuration
1 2
A
PCIEX16_3 x4 x2
PCIEX1_1 - x1
PCIEX1_2 - x1
Configuration 1 2
B
M.2_2 PCIe 3.0 x4 / SATA -
SATA6G_56 - v
• PCIEX16_3 shares bandwidth with PCIEX1_1 and PCIEX1_2. When PCIEX16_3
runs x4 mode, PCIEX1_1 and PCIEX1_2 will be disabled. PCIEX16_3 will run x2
mode when PCIEX1_1 or PCIEX1_2 is occupied.
• When M.2_2 slot is populated, SATA6G_56 will be disabled.
