Asus ROG STRIX B550-E GAMING [23/74] Chapter 1

ROG STRIX B550-E GAMING

1-11

Chapter 1

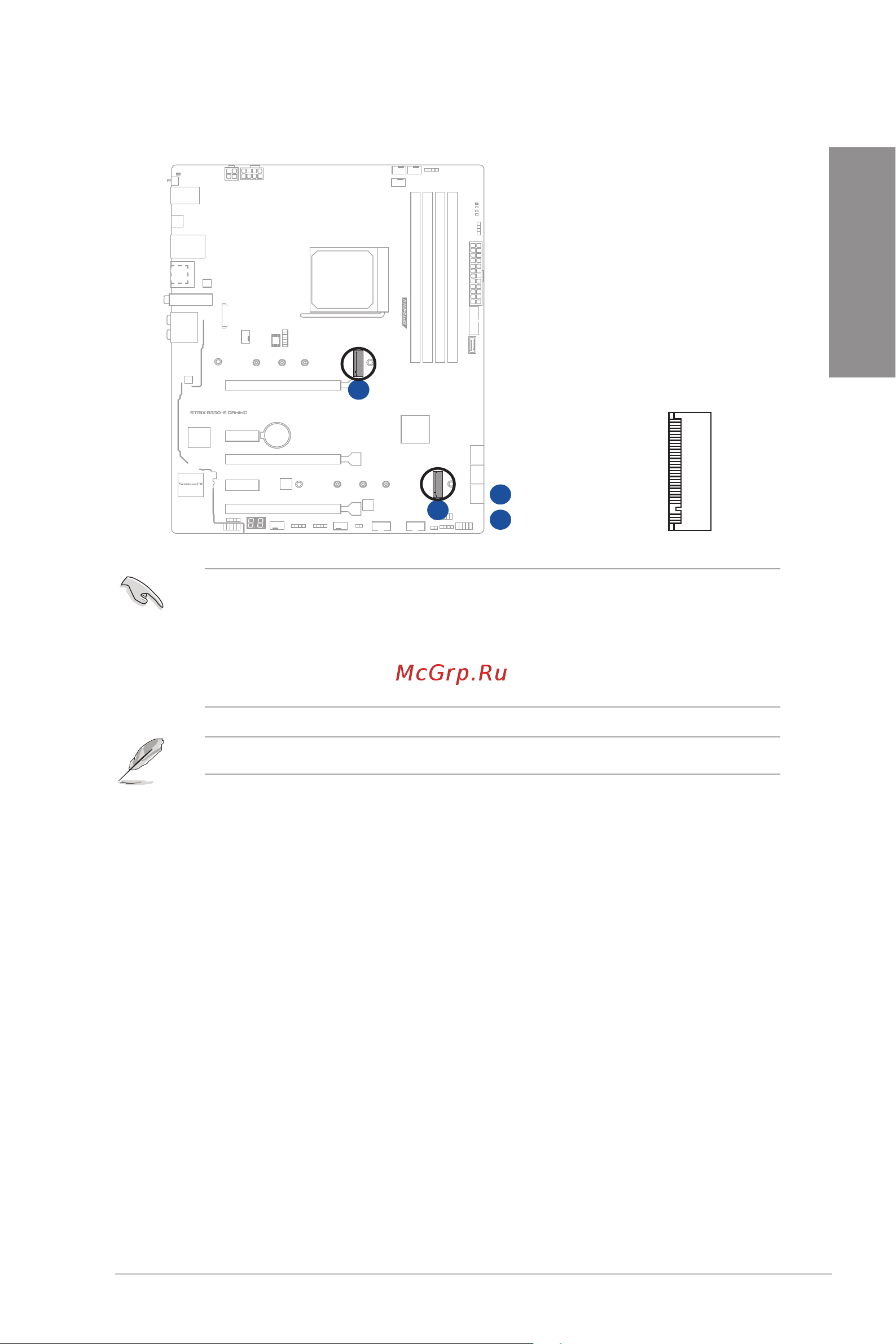

6. M.2 slot

The M.2 slot allows you to install M.2 SSD modules.

M.2_2(SOCKET3)

M.2_1(SOCKET3)

• M.2_1 slot supports PCIe 4.0 x4 and SATA mode Key M design and type 2242/2260

/2280/22110 storage devices.

• M.2_2 slot supports PCIe 3.0 x4 and SATA mode Key M design and type

2242/2260/2280/ 22110 storage devices.

• When M.2_2 slot is populated , SATA6G_5/6 will be disabled.

The M.2 SSD module is purchased separately.
