2.3 Motherboard rear and audio connections

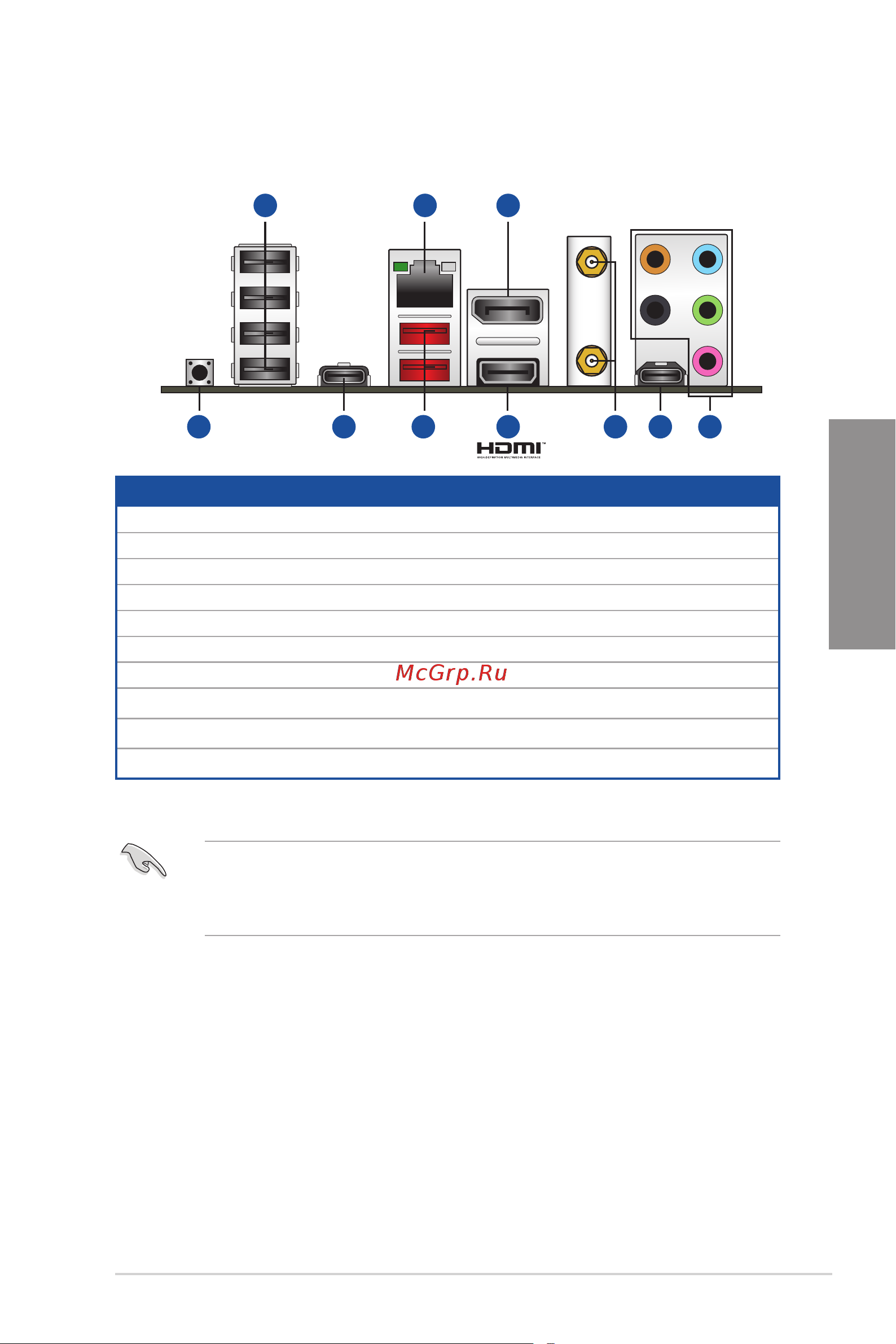

2.3.1 Rear I/O connection

Rear panel connectors

1. USB 2.0 ports E5~E8

2. Intel

I225-V 2.5Gb Ethernet port*

3. DisplayPort

4. BIOS FlashBack™ button

5. USB 3.2 Gen 2 Type-C

port C7

6. USB 3.2 Gen 2 Type-A ports 3 and 4

7. HDMI™ port

8. Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth V5.1

9. Audio USB Type-C

10. Audio jacks**

We strongly recommend that you connect your devices to ports with matching data

transfer rate. Please connect your USB 3.2 Gen 1 devices to USB 3.2 Gen 1 ports and

your USB 3.2 Gen 2 devices to USB 3.2 Gen 2 ports for faster and better performance for

your devices.

108 974 5 6

321

* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
