5-17
ASUS RS720A-E9-RS24V2

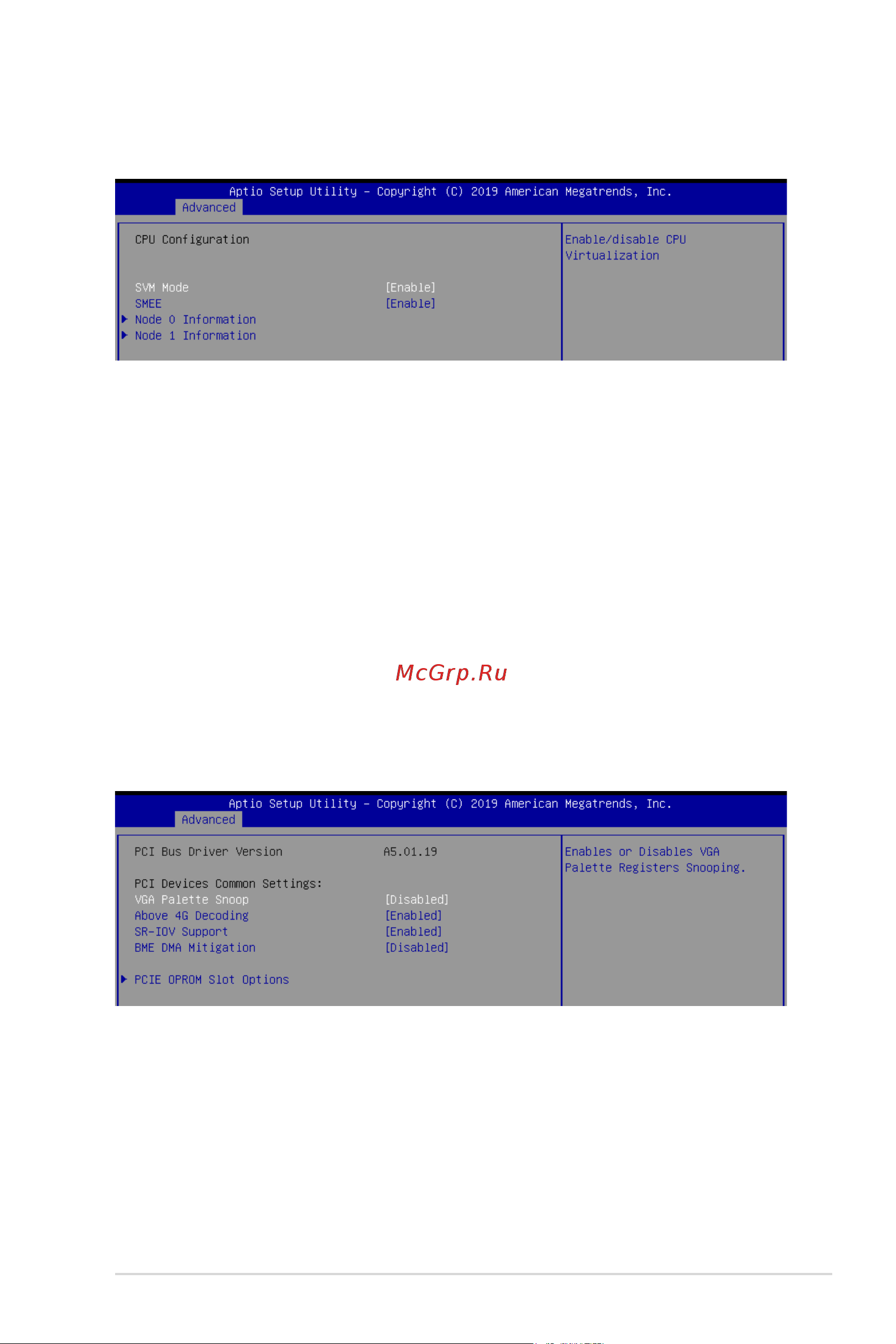

5.5.6 CPU Configuration
This page displays the CPU node information.
SVM Mode [Enable]
This item allows you enable or disable CPU Virtualization.
Configuration options: [Disabled] [Enable]
SMEE Mode [Enable]
This item allows you to enable or disable control secure memory encryption.
Configuration options: [Disabled] [Enable]
Node 0 Information
This item allows you to view memory information related to Node 0.
Node 1 Information
This item allows you to view memory information related to Node 1.
5.5.7 PCI Subsystem Settings
Allows you to configure PCI, PCI-X, and PCI Express Settings.
VGA Palette Snoop [Disabled]
This option enables or disables VGA Palette Registers Snooping.
Configuration options: [Disabled] [Enabled]
Above 4G Decoding [Enabled]
Allows you to enable or disable 64-bit capable devices to be decoded in above 4G address
space. It only works if the system supports 64-bit PCI decoding.
Configuration options: [Disabled] [Enabled]
