Chapter 1: Product Introduction
1-2
If any of the above items is damaged or missing, contact your retailer.
1.1 System package contents
Check your system package for the following items.
Model Name
RS720A-E9-RS24V2
Chassis
ASUS R2P-A-R22475 2U Rackmount Chassis
Motherboard
ASUS KNPP-D32-R Server Board
Component
1 x 800W/1200W 80PLUS Platinum Power Supply
1 x SAS/SATA back panel
24 x Hot-swap 2.5-inch Storage Device Trays
1 x Front Panel Board
4 x System Fans
Accessories
1 x AMD EPYC™ Support DVD
1 x Bag of Screws
2 x CPU Heatsink
2 x AC Power Cable
Optional Items
1 x Redundant 800W 80PLUS Platinum Power Supply (Second PSU)
1 x Friction Rail Kit

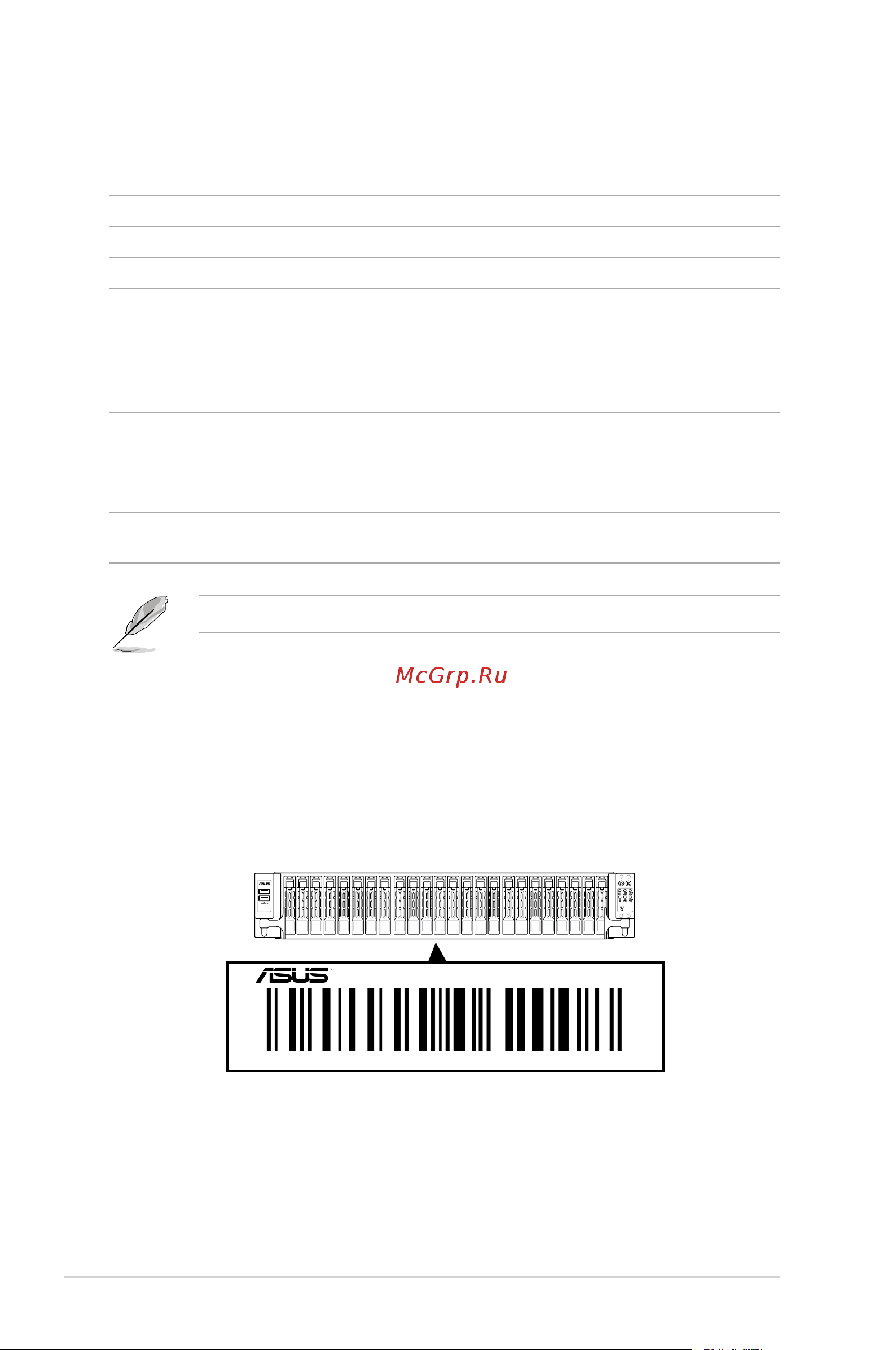

1.2 Serial number label
The product’s serial number contains 12 characters such as xxS0xxxxxxxx and printed on the
sticker at the server's front cover.
The correct serial number of the product is required if you need to request for support from
the ASUS Technical Support team.
xxS0xxxxxxxx
RS720A-E9-RS24V2
