Asus RS720A-E9-RS24V2 [51/156] Installing m ngff cards

2-29

ASUS RS720A-E9-RS24V2

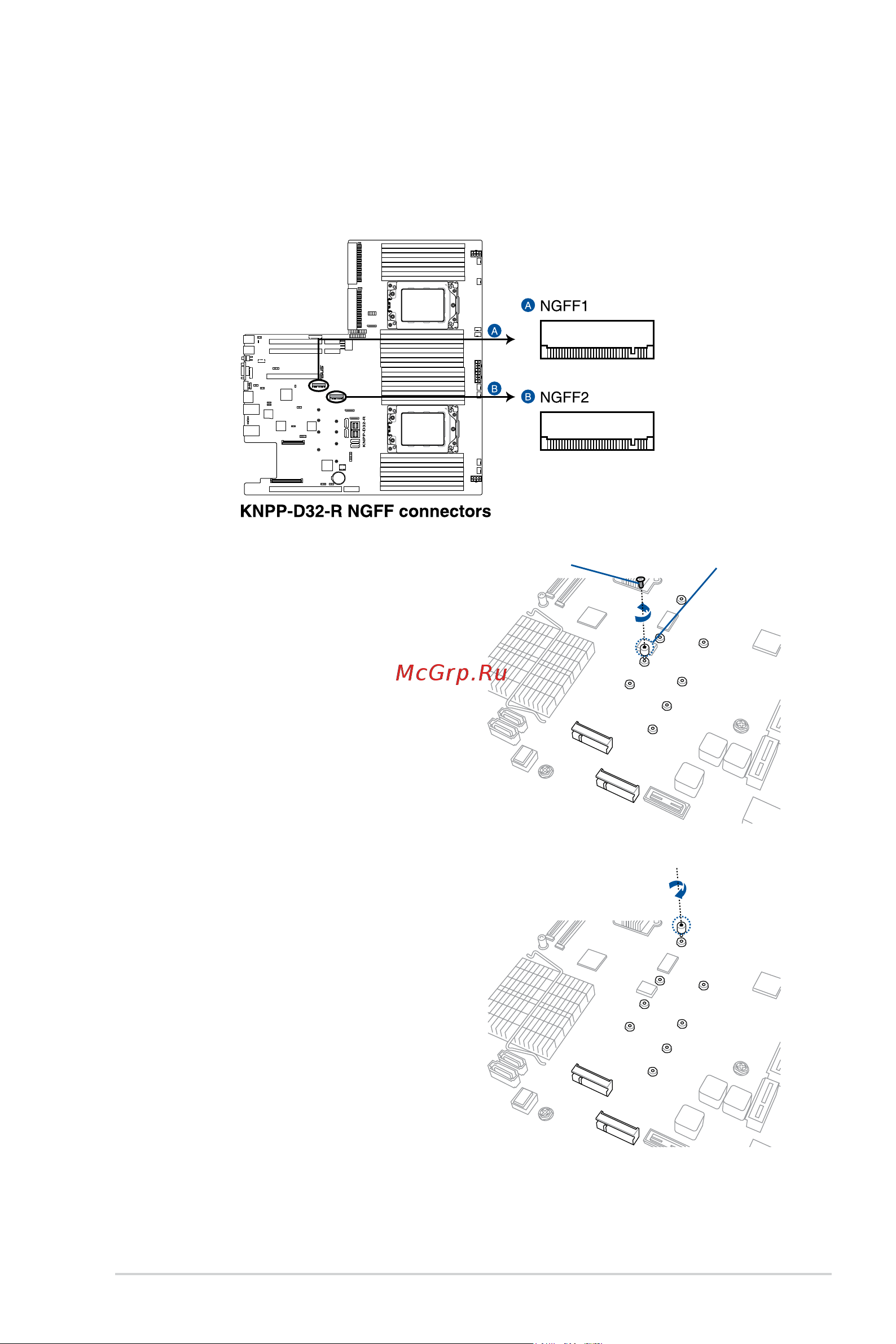

2.5.8 Installing M.2 (NGFF) cards

To install an M.2 (NGFF) card:

2. Remove the top screw and the

stand from the motherboard.

3. Select an appropriate screw hole

on the motherboard for your M.2

card, then secure the stand to the

motherboard.

1. Locate the M.2 (NGFF) connectors on your motherboard.

Top screw

Stand screw
