6 | Unit installation

Installer reference guide

RXJ-M(9)_RXA-A(9)_RXM-R(9)_ARXM-R(9)

R32 Split system air conditioners

4P519439-12M – 2021.02

WARNING

The appliance shall be stored in a room without continuously operating ignition

sources (example: open flames, an operating gas appliance or an operating electric

heater).

6.1.1 Installation site requirements of the outdoor unit

INFORMATION

Also read the following requirements:

▪ "2General safety precautions"[45].

▪ "7.1.3Refrigerant piping length and height difference"[434].

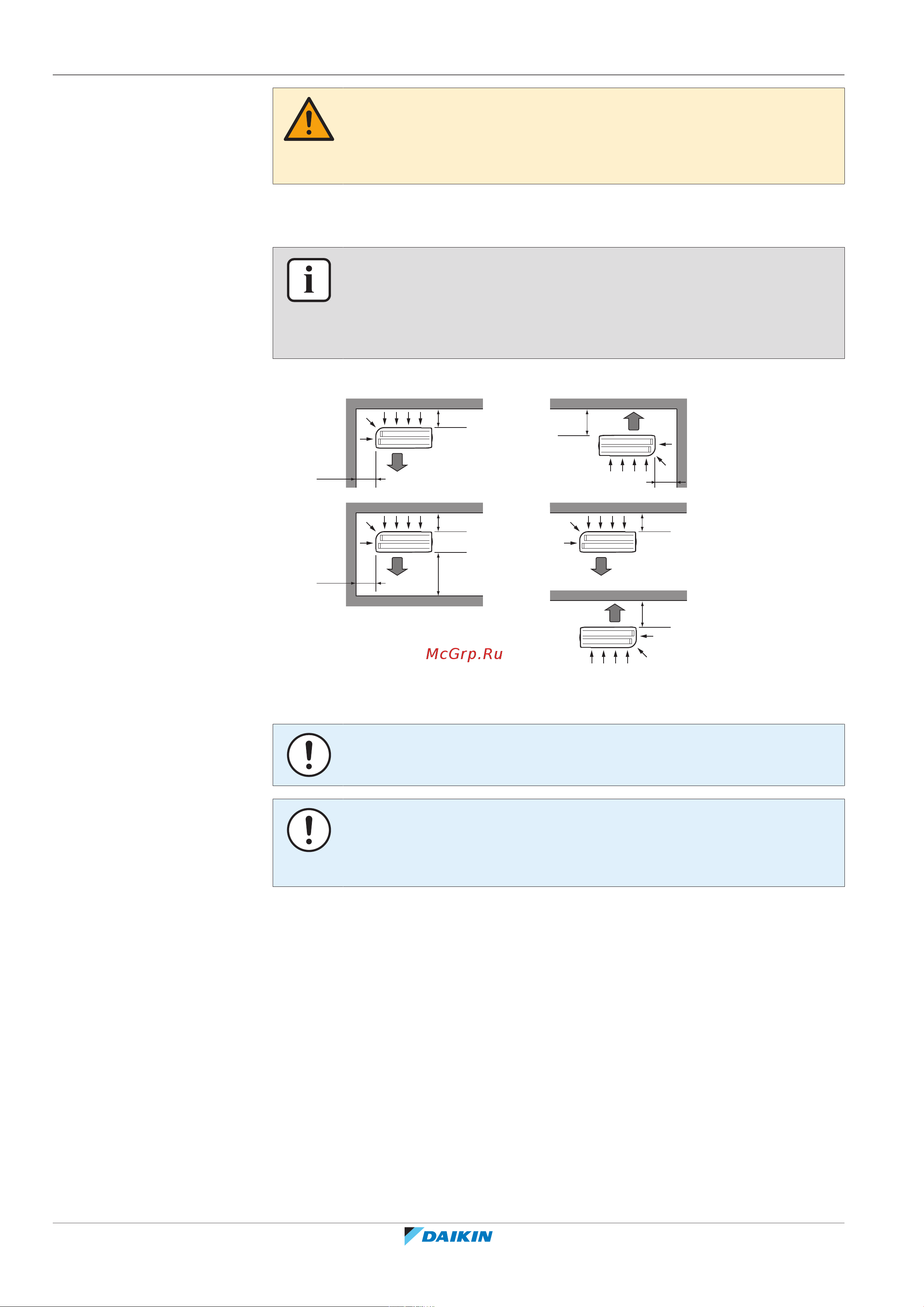

Mind the following spacing guidelines:

>150

>50

>300

(mm)

>100

>50

>150

>50

>100

a Air outlet

b Air inlet

NOTICE

The height of the wall on the outlet side of the outdoor unit MUST be ≤1200mm.

NOTICE

▪ Do NOT stack the units on each other.

▪ Do NOT hang the unit on a ceiling.

Strong winds (≥18km/h) blowing against the outdoor unit’s air outlet causes short

circuit (suction of discharge air). This may result in:

▪ deterioration of the operational capacity;

▪ frequent frost acceleration in heating operation;

▪ disruption of operation due to decrease of low pressure or increase of high

pressure;

▪ a broken fan (if a strong wind blows continuously on the fan, it may start rotating

very fast, until it breaks).

It is recommended to install a baffle plate when the air outlet is exposed to wind.

It is recommended to install the outdoor unit with the air inlet facing the wall and

NOT directly exposed to the wind.
