6 | Unit installation

Installer reference guide

RXJ-M(9)_RXA-A(9)_RXM-R(9)_ARXM-R(9)

R32 Split system air conditioners

4P519439-12M – 2021.02

NOTICE

If the unit is installed in a cold climate, take adequate measures so that the

evacuated condensate CANNOT freeze.

NOTICE

If the drain holes of the outdoor unit are blocked up by a mounting base or floor

surface, place additional foot bases ≤30mm under the outdoor unit's feet.

INFORMATION

For information on the available options, contact your dealer.

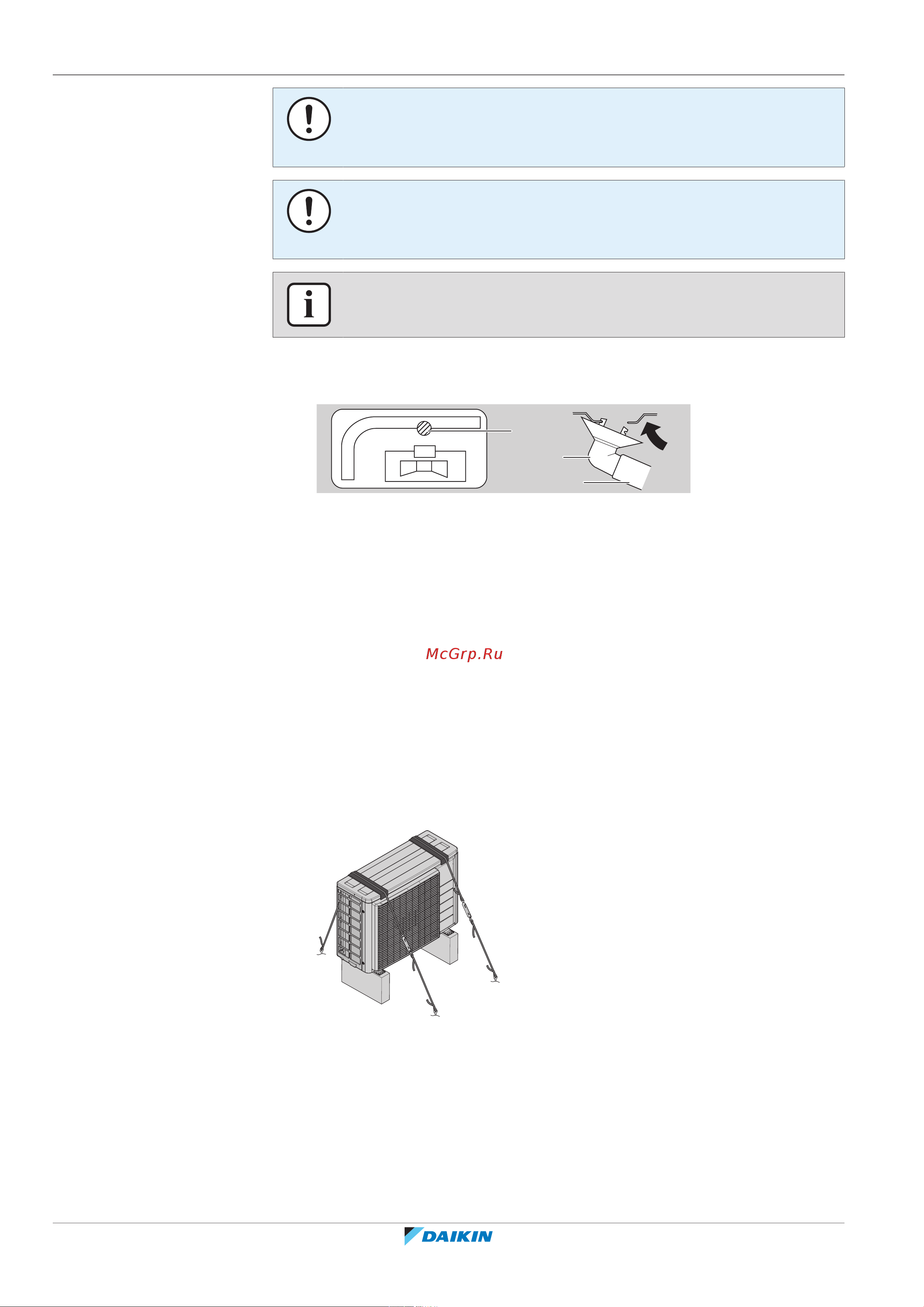

1 Use a drain plug for drainage.

2 Use a Ø16mm hose (field supply).

a Drain port

b Bottom frame

c Drain plug

d Hose (field supply)

6.3.6 To prevent the outdoor unit from falling over

In case the unit is installed in places where strong wind can tilt the unit, take

following measure:

1 Prepare 2 cables as indicated in the following illustration (field supply).

2 Place the 2 cables over the outdoor unit.

3 Insert a rubber sheet between the cables and the outdoor unit to prevent the

cables from scratching the paint (field supply).

4 Attach the ends of the cables.

5 Tighten the cables.
