6 | Unit installation

Installer reference guide

RXJ-M(9)_RXA-A(9)_RXM-R(9)_ARXM-R(9)

R32 Split system air conditioners

4P519439-12M – 2021.02

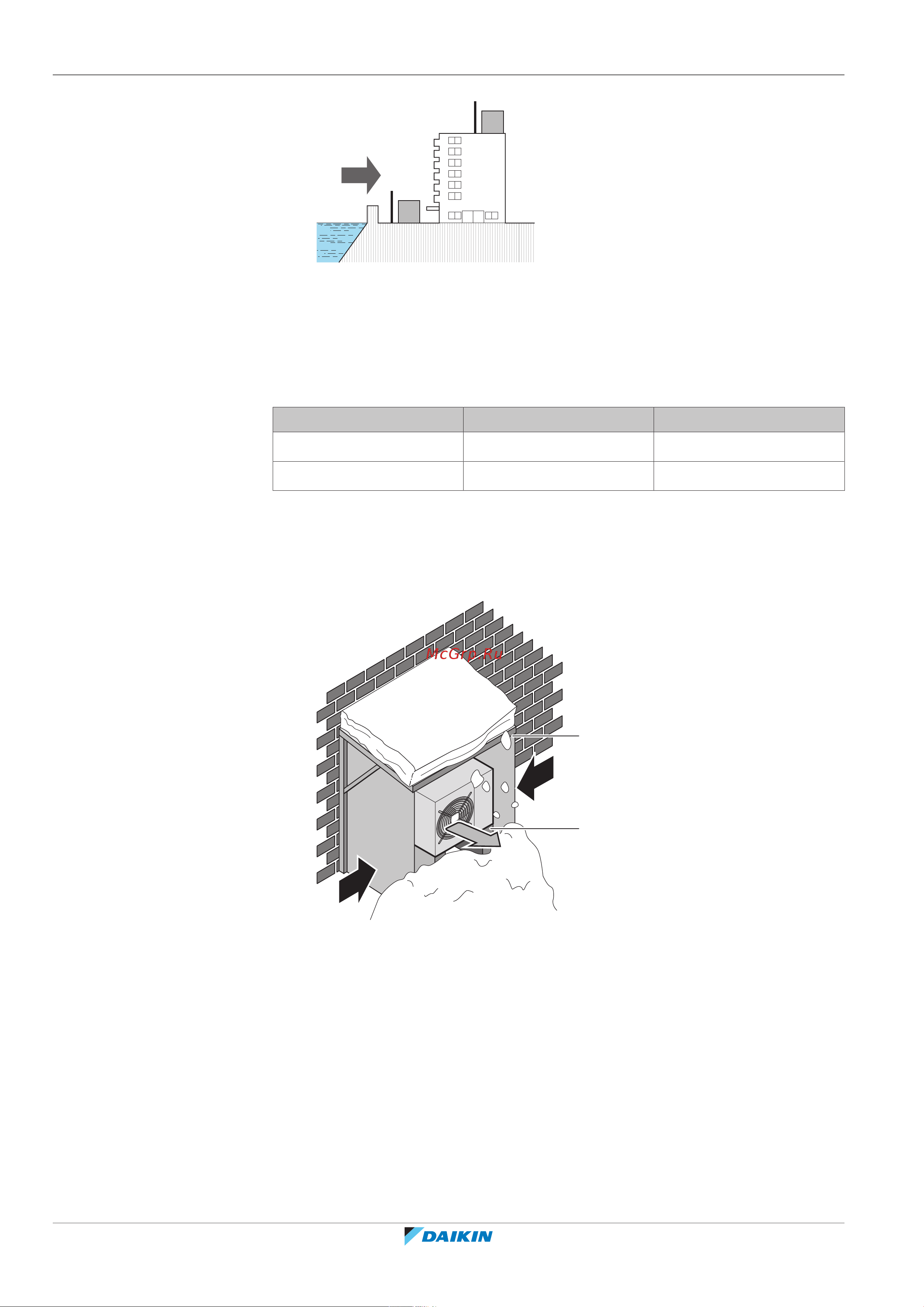

a Sea wind

b Building

c Outdoor unit

d Windbreaker

The outdoor unit is designed for outdoor installation only and for ambient

temperatures specified in the table below (unless otherwise specified in the

operation manual of the connected indoor unit).

Model Cooling Heating

RXM-R, ARXM-R –10~50°C DB –20~24°C DB

RXA-A, RXJ-M –10~46°C DB –15~24°C DB

6.1.2 Additional installation site requirements of the outdoor unit in cold climates

Protect the outdoor unit against direct snowfall and take care that the outdoor unit

is NEVER snowed up.

a Snow cover or shed

b Pedestal

c Prevailing wind direction

d Air outlet

It is recommended to provide at least 150 mm of free space below the unit

(300mm for heavy snowfall areas). Additionally, make sure the unit is positioned at

least 100mm above the maximum expected level of snow. If necessary, construct

a pedestal. See "6.3Mounting the outdoor unit"[430] for more details.

In heavy snowfall areas it is very important to select an installation site where the

snow will NOT affect the unit. If lateral snowfall is possible, make sure that the heat

exchanger coil is NOT affected by the snow. If necessary, install a snow cover or

shed and a pedestal.
