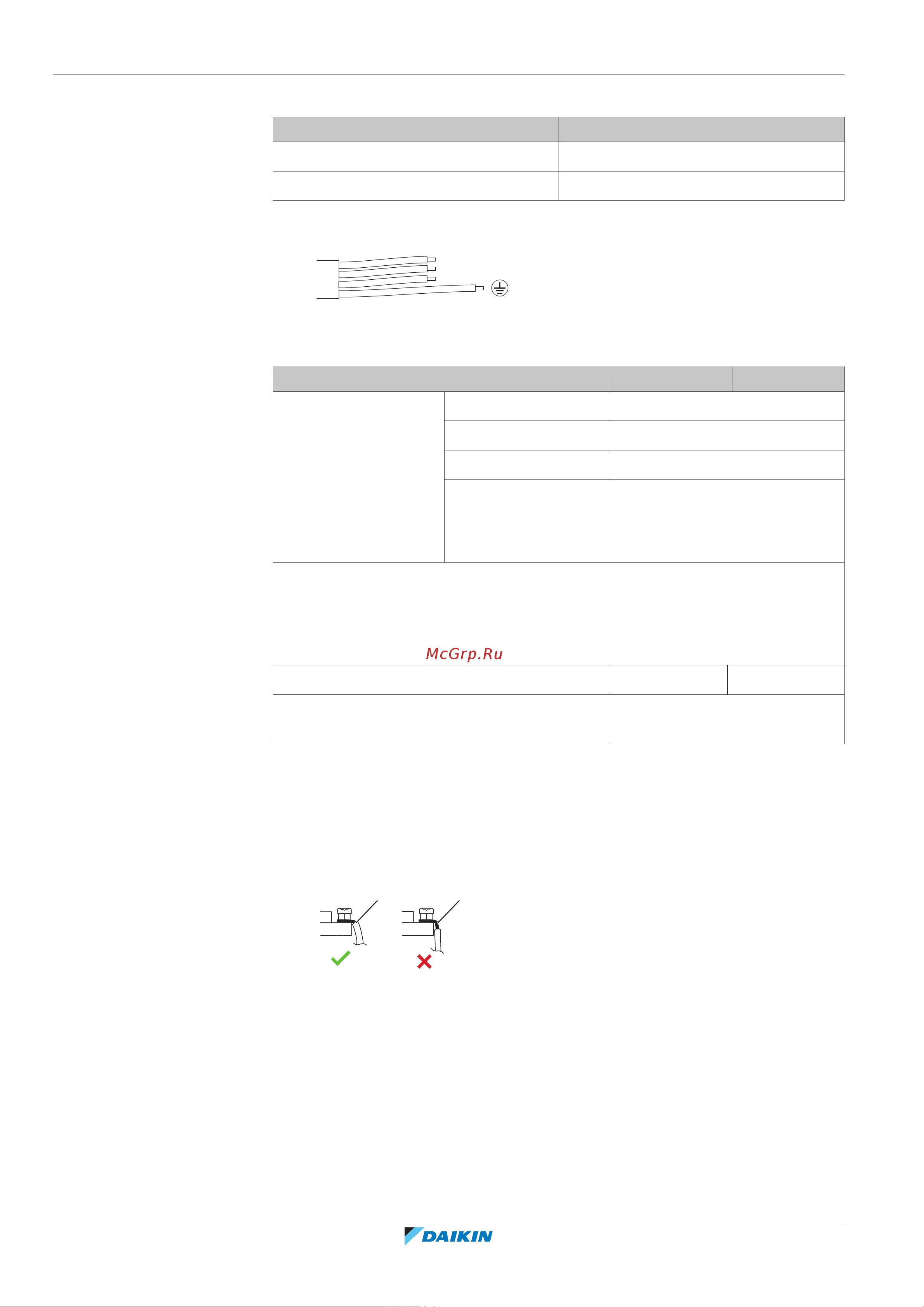

Daikin RXM35R5V1B [50/68] Specifications of standard wiring components
![Daikin RXM35R5V1B [50/68] Specifications of standard wiring components](/views2/1772861/page50/bg32.png)
9 | Electrical installation
Installer reference guide
50
RXJ-M(9)_RXA-A(9)_RXM-R(9)_ARXM-R(9)
R32 Split system air conditioners
4P519439-12M – 2021.02
Tightening torques
Item Tightening torque (N•m)
M4 (X1M) 1.5~1.6
M4 (earth) 1.4~1.5
▪ The earth wire between the wire retainer and the terminal must be longer than
the other wires.
1-3
9.1.3 Specifications of standard wiring components
Component Class 20 Class 25+35
Power supply cable Voltage 220~240V
Phase 1~
Frequency 50Hz
Wire sizes 3-core cable
2.5mm2~4.0mm
2
H05RN-F (60245 IEC 57)
Interconnection cable (indoor↔outdoor) 4-core cable
1.5mm
2
~2.5mm
2
and
applicable for 220~240V
H05RN-F (60245 IEC 57)
Recommended circuit breaker 10A 13A
Residual current device MUST comply with applicable
legislation
9.2 To connect the electrical wiring to the outdoor unit
1 Remove the service cover. See "6.2.2To open the outdoor unit"[429].
2 Strip insulation (20mm) from the wires.
a b
a Strip wire end to this point
b An excessive strip length may cause electrical shock or leakage
3 Open the wire clamp.
4 Connect the interconnection cable and power supply as follows:
