INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY
AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED
PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE
IS IGNORED AND THE INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY
FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS.
8 GB
This appliance is not connected to an evacuation device for the
products of combustion. It must be installed and connected in
compliance with the norms in force in the country of installation.
Particular attention should be given to the availability of ventilation.
The turnover of air necessary for combustion is a minimum of 2
m3/h per kW of power.
Gas connection should be carried out in compliance with the
norms in force in the country of installation.
A stop tap, a regulator valve or a release valve for propane gas,
should be fitted to the gas supply pipe. Use only taps, regulator
valves, connectors and flexible hoses with the official mark of
approval of the country of installation.
Le raccordement gaz doit être effectué conformément aux
règlements en vigueur dans le pays d'installation.

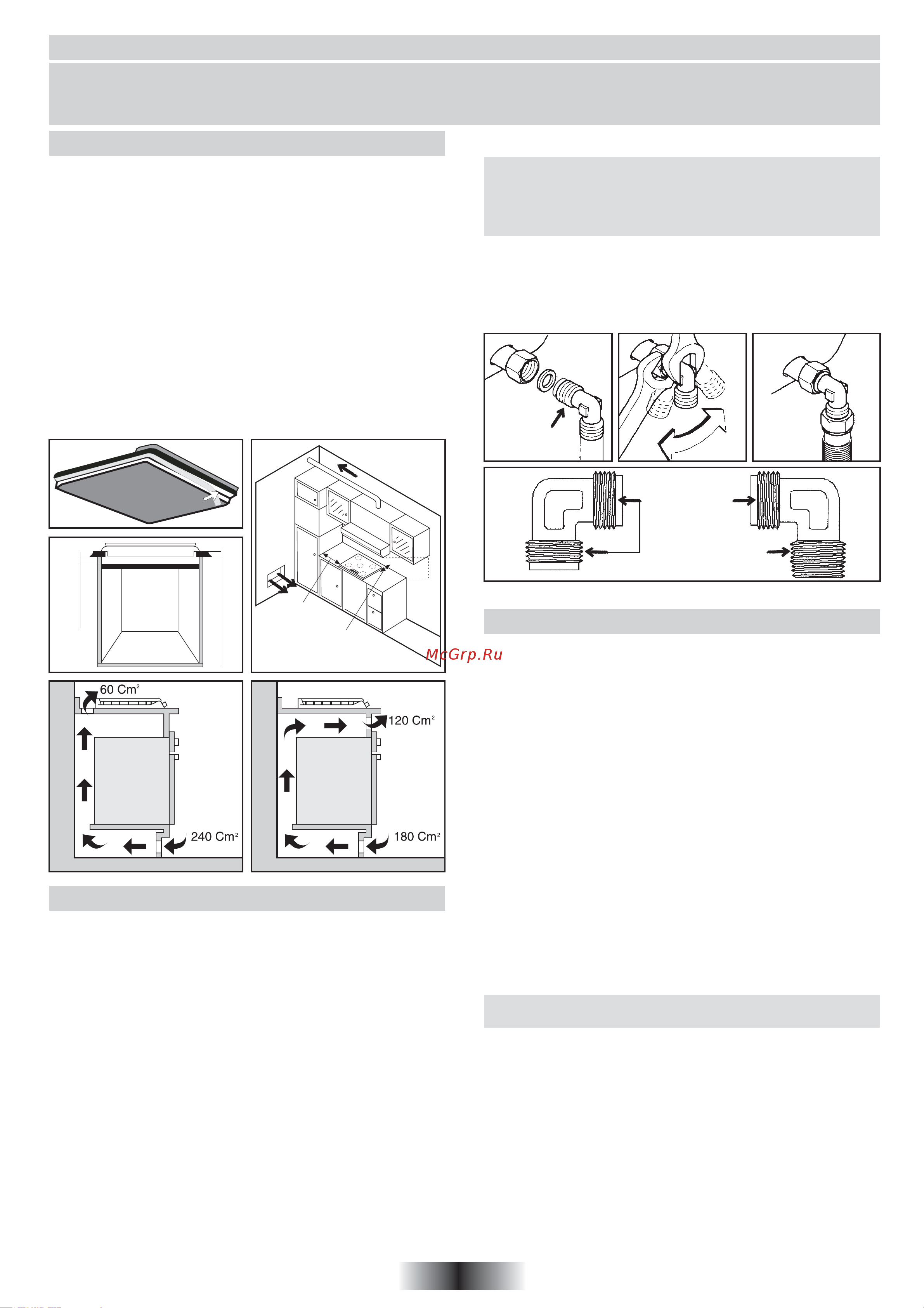

2 POSSIBLES MEANS OF CONNECTION :
• CONNECTION BY RIGID PIPE
Connect directly to the threaded end of the inlet pipe.
• CONNECTION BY FLEXIBLE PIPE WITH MECHANICAL
CONNECTOR
(We recommend this type of connection)
Screw the nuts of the flexible pipe directly on to the inlet pipe
at one end and the gas supply stop tap at the other.
GAS CONNECTION
BUILDING-IN
BUILDING-IN : both the worktop where the hob will be fitted and
any adjacent kitchen furniture must be made from heat resistant
material and fixed with heat resistant adhesive.
If, when installing the hob, the lower hob face is adjacent to an
area normally accessible when handling or cleaning, fit a heatproof
partition 1 cm below the base of the hob with a 10X10 cm opening
at the rear right-hand corner, to avoid any risk of scorching or
damage.
A foam adhesive is supplied with the hob. Stick this seal under
the edge of the body as near as possible to the outer edge of the
hob. Press round the edges of the hob, so that the seal flattens
out and ensures an air tight seal.
Warning : at the rear of the appliance, take care not to block the
air inlets necessary for combustion to take place.
The body of the hob is fitted with 4 location holes to take the fixing
brackets that secure the the hob in the unit. Place the 4 fixing
brackets in such a way that the hob is placed perfectly in the
support unit.
INSTALLATION
N.B.: carry out a final check for leaks on the pipework using a
soapy solution. Never use a flame. Also, make sure that the
flexible pipe cannot come into contact with a moving part of the
cabinet (eg, a drawer) and that it is not situated where it could
be damaged.
min 10 mm
Sp da 25 a 45 mm
Accessible
space
SEAL
Not cooled
oven
ELECTRICAL CONNECTION
Warning : before proceeding with the connection, check the
continuity of the earthing of the power supply unit.
We cannot be held responsible for any accident which has
resulting from the use of an appliance which is not connected
to earth, or whose earthing is defective.
The mains electricity supply connected to the appliance should
comply with the norms in force in the country of installation.
Connection to the mains electricity supply should be through a
socket with an earth terminal, or through an intermediary switching
device with a gap between contacts of at least 3 mm.
The power supply unit must be protected by appropriate fuses
and use cables of a large enough cross section to provide a normal
supply to the appliance.
The hob is fitted with a power supply cable* with plug which allow
it to be connected only to a power supply of 230 V between phases,
or between phase and neutral.
Connect to a 10/16 Amp socket. Before connecting, it is
compulsory to check :
• the power supply voltage shown on the electricity meter,
• the adjustment of the circuit breaker, and
• the fuse rating,
• the earth continuity.
Note : the socket must be reachable for any eventual repair.
Take care of its location at the time you install the hob.
* The eventual replacement of the supplying cord must be carried
on by the After Sales Service or by an agreed engineer, with a
cord whose characteristics must be similar to the original one :
• Gas hob : cord type H05RR-F, H05VV-F, H05V2V2-F (3 x 0,75
mm
2 section),
• Mixed hob : cord type H05RR-F, H05VV-F, H05V2V2-F (3 x 1,5
mm2 section).
CYLINDRICAL
CYLINDRICAL
CONICAL
Not cooled
oven
For some models a conic link is furnished to outfit for the installation
in the countries where this type of link is obligatory; in the following
figures it is pointed out how to recognize the different types of
links. In every case the cylindrical part of the link has to be
connected to the hob.
min 70 cm
min 15 cm
min 5,5 cm
